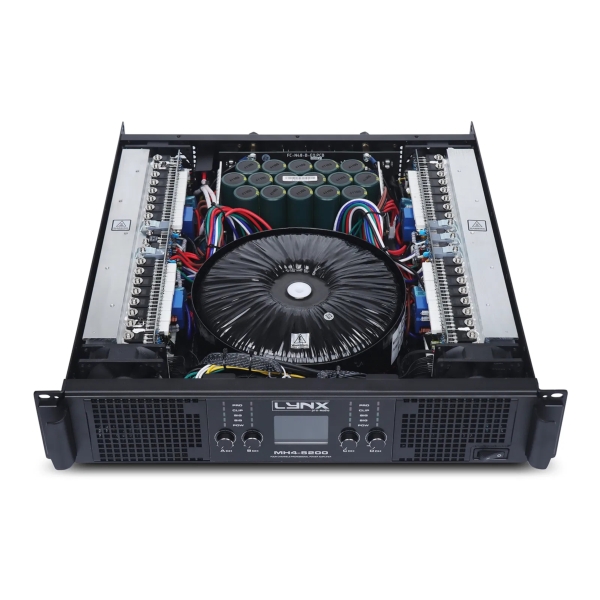

Lynx MH4-5200 Power Amplifier, 4x 1300W @ 4 Ohms

Lynx MH4-4000 Power Amplifier Features

- 2nd Generation Class H: High energy efficiency.
- 2-channel (MH-2) and 4-channel (MH-4) amplifier models.
- 2.4-inch display for real-time status monitoring.
- High signal-to-noise ratio, optimized design for demanding projects.
- Comprehensive protection systems: distortion, short circuit, overload, overheating, DC, RF, power overload, mute transient on/off

Lynx MH4-5200 Power Amplifier Specifications

- Power:
  - 4x 1000Wrms @ 8Ω
  - 4x 1300Wrms @ 4Ω
  - 4x 1600Wrms @ 2Ω
  - Bridge 2600Wrms @ 8Ω
  - Bridge 3200Wrms @ 4Ω
- Frequency Response Bandwidth ± 0.25dB: 20 Hz - 20 kHz
- Phase Response 1 W 20 Hz - 20 kHz: ±15 deg
- Total Harmonic Distortion 20 Hz - 20 kHz: <0.05%
- Damping Factor 20-500 Hz @ 8Ω: >700
- Crosstalk 20 Hz - 1 kHz: >75 dB
- Sensitivity (Rated Power): 0.775V / 1.0V / 1.44V
- Signal to Noise Ratio: >100 dB
- Operating Voltage (50-60 Hz): 230 V AC 50 Hz / 60 Hz
- Dimensions: 483 x 88 x 500/470mm
- Weight: 25.5kg
- Protections: Soft-start; Mute transient on/off; Overheating; DC; RF; Short circuit; Power overload

Further Product Information Below

Lynx MH4-5200 Manual (PDF)

Lynx MH4-5200 Data Sheet (PDF)
