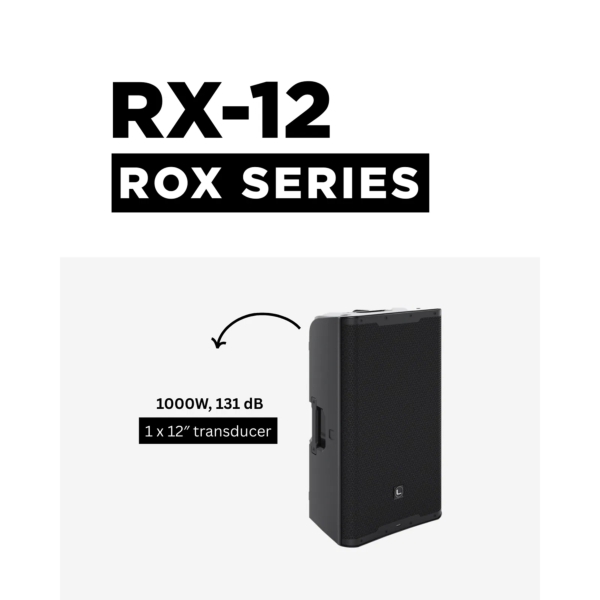

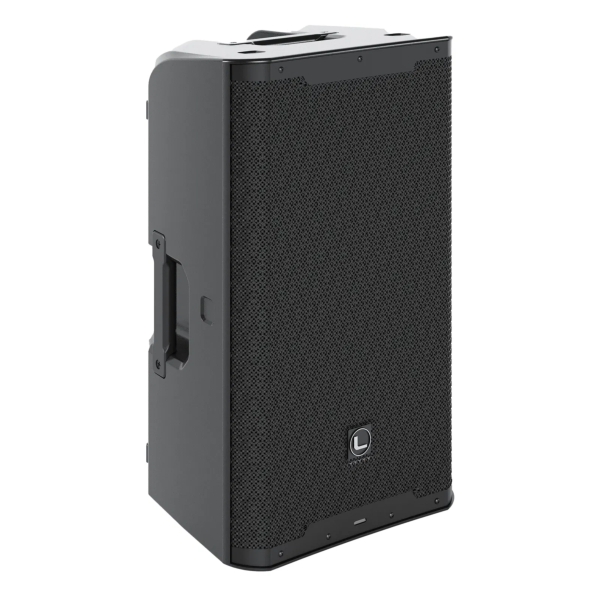

Lynx ROX-12 12-Inch Active Speaker, 450W

Lynx ROX-12 12-Inch Active Speaker Features

- 12-inch LF driver (3-inch voice coil) and 1.35-inch compression driver
- Class-D amplifier with 450W RMS / 1000W peak power
- Linear phase FIR filter DSP for superior sound accuracy
- Audio modes: Normal, Speech, Live, DJ
- Monitor and location presets
- EQ, delay, sub crossover (80/100/120Hz), and scene memory
- Bluetooth TWS stereo pairing

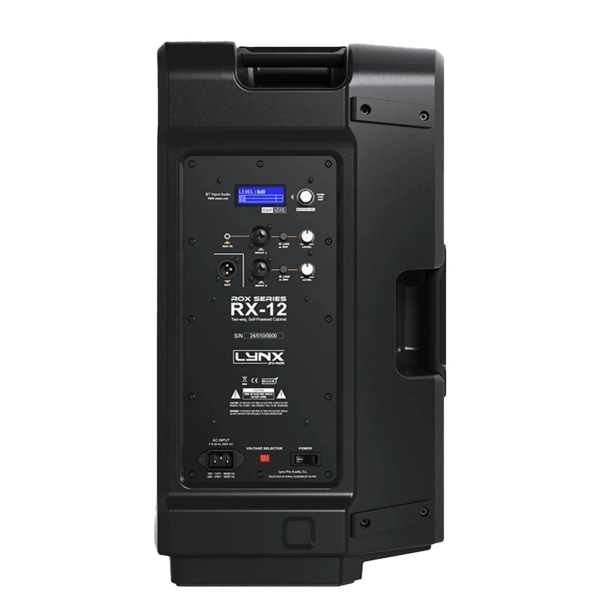

- 2 x Combo XLR/Jack inputs with MIC/LINE select + 3.5mm AUX
- Balanced XLR line output
- LCD display with encoder control
- 90°H x 60°V coverage
- 35mm dual-angle pole mount and 45° wedge monitor

Lynx ROX-12 12-Inch Active Speaker Specifications

- Power: 450W RMS / 1000W Peak
- Frequency Response: 45 Hz - 20 kHz
- Max SPL: 125 dB (131 dB Peak)
- Coverage: 90°H x 60°V
- Inputs: 2x Combo Jack/XLR with MIC/LINE select, 1x 3.5mm AUX
- Output: Balanced XLR line level
- DSP: FIR filter, EQ, delay, sub crossover (80/100/120Hz), audio modes, presets, scene memory
- BT: Bluetooth TWS stereo pairing
- Fittings: 35mm dual-angle pole mount, 45° wedge monitor
- Power Supply: 230V AC, 50Hz
- Dimensions (H x W x D): 609 x 359 x 346mm
- Weight: 21 kg

Further Product Information Below

Lynx ROX-Series Manual (PDF)

Lynx ROX-12 Data Sheet (PDF)

Lynx ROX-Series Brochure (PDF)
