Netgear GSM4230PX M4250-26G4XF-POE+ Managed Switch

Name: Netgear GSM4230PX M4250-26G4XF-POE+ Managed Switch
Brand: Netgear
Price: 1974.85 GBP
Availability: InStock

Price Each £1,645.71 (£1,974.85 Including VAT at 20%)

REF: JP113686

Quantity:

Netgear GSM4230PX M4250-26G4XF-POE+ Managed Switch

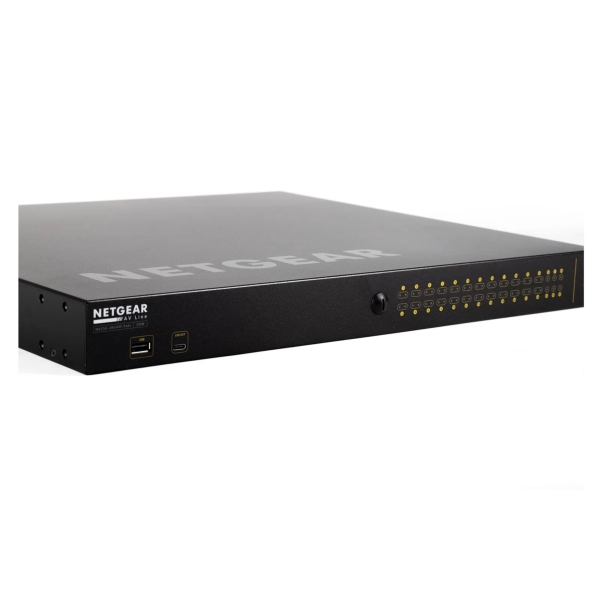

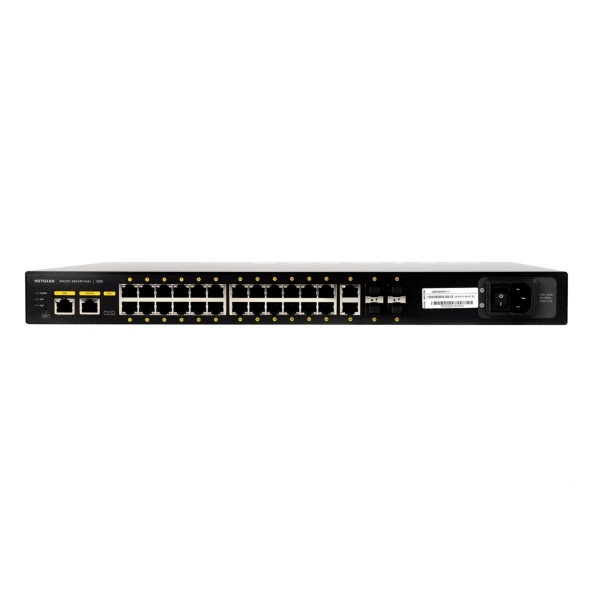

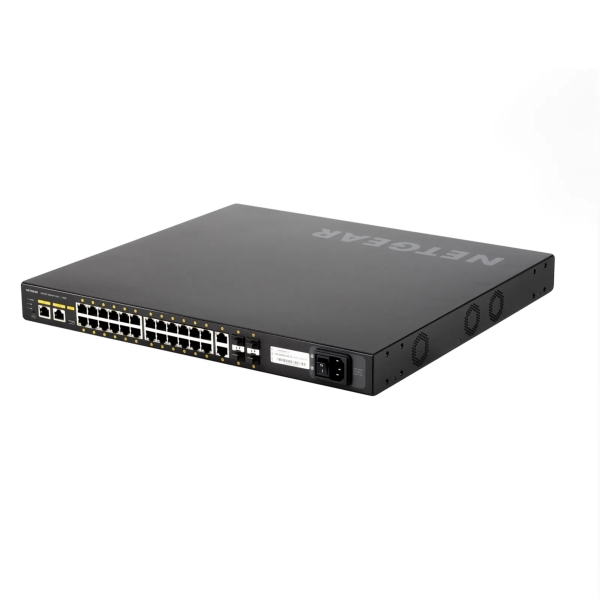

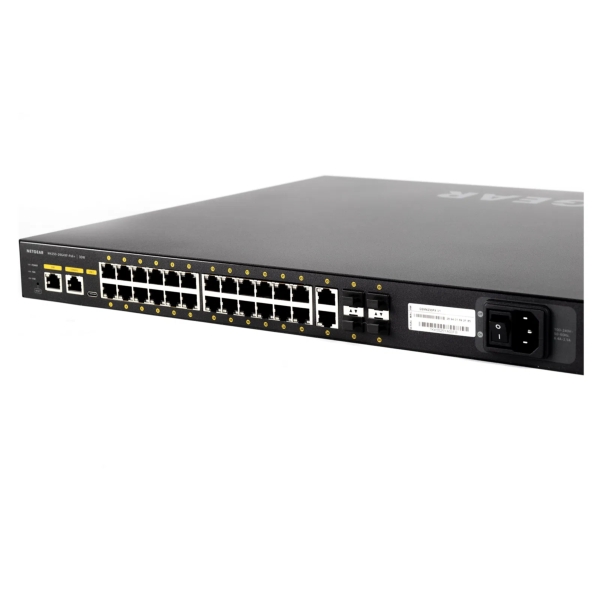

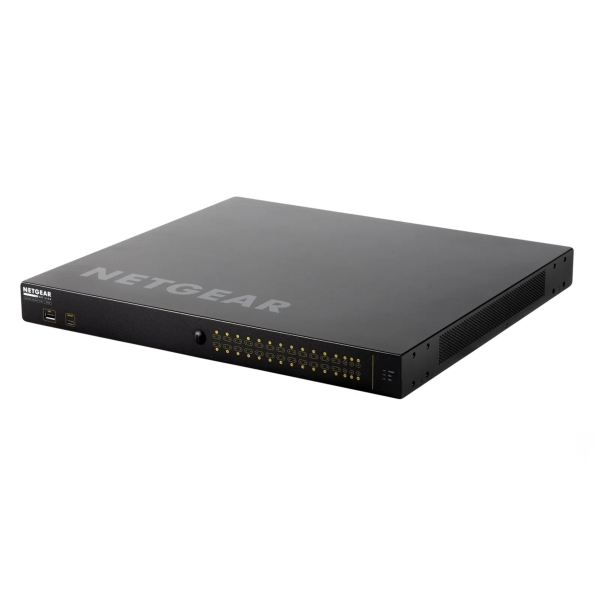

The Netgear GSM4230PX M4250-26G4XF-POE+ Managed Switch is a high-performance, fully managed AV switch designed for professional AV over IP deployments. Featuring 24 PoE+ Gigabit ports, 2 non-PoE copper ports, and 4 dedicated 10G SFP+ uplinks, it delivers robust connectivity and power for demanding AV environments. This 1U rackmount switch supports AVB, PTP, and industry-standard multicast protocols, while the silent fanless mode and audio-video-centric UI ensure seamless integration and intuitive configuration in studios, venues, and fixed installs. Ideal for powering Dante, AES67, Q-SYS, NDI, and similar networked AV systems.

Click Here for Printer Friendly Version

Netgear GSM4230PX M4250-26G4XF-POE+ Managed Switch Features

- 24x 1G PoE+ ports (IEEE 802.3at, up to 30W per port)
- 2x 1G copper ports (non-PoE)
- 4x 10G SFP+ uplinks for high-speed connectivity
- PoE+ budget of 480W for powering AV devices
- Pre-configured profiles for Dante, NDI, AES67, AVB, and more
- Fanless or quiet fan mode for sound-sensitive environments
- AV-focused Web UI (AV UI) for simplified setup and deployment
- Supports Layer 2 and Lite Layer 3 functionality
- IGMP snooping, QoS, VLANs, and multicast support
- 1U rackmount form factor with desktop install option

Netgear GSM4230PX M4250-26G4XF-POE+ Managed Switch Specifications

- Model: GSM4230PX
- Total Ports: 30 (24 x 1G PoE+, 2 x 1G copper, 4 x 10G SFP+)
- Uplink Ports: 4x 10G SFP+
- PoE Type: IEEE 802.3at (PoE+)
- PoE Budget: 480W
- Switching Capacity: 128Gbps
- Fan: Quiet fan or fanless (depending on thermal load)
- Management: AV UI, Main UI, CLI, SNMP, Engage Controller
- Mounting: 1U Rackmount or Desktop
- Dimensions: 440 x 204 x 43.2mm (W x D x H)
- Weight: Approx. 3.3kg
- Operating Temperature: 0°C to 45°C

Further Product Information Below

Netgear M4250-10G2XF-POE++ Manual (PDF)

Netgear M4250-26G4XF-POE+ Data Sheet (PDF)
