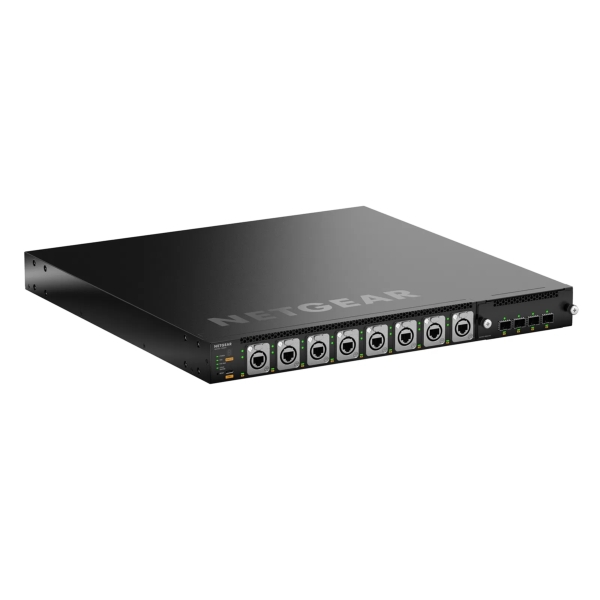

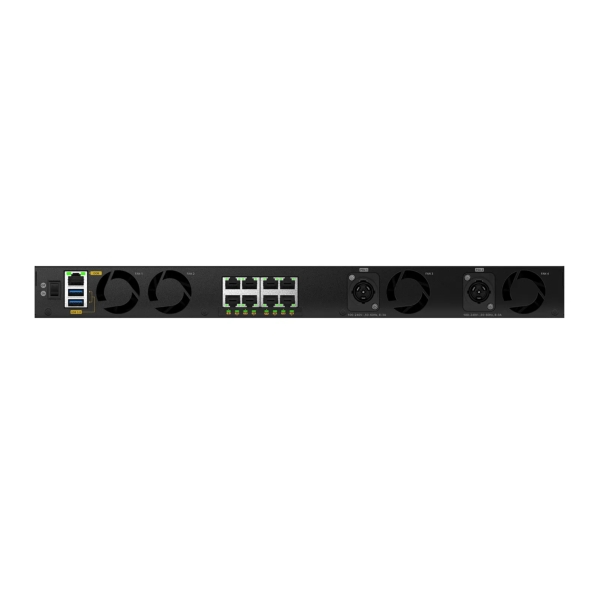

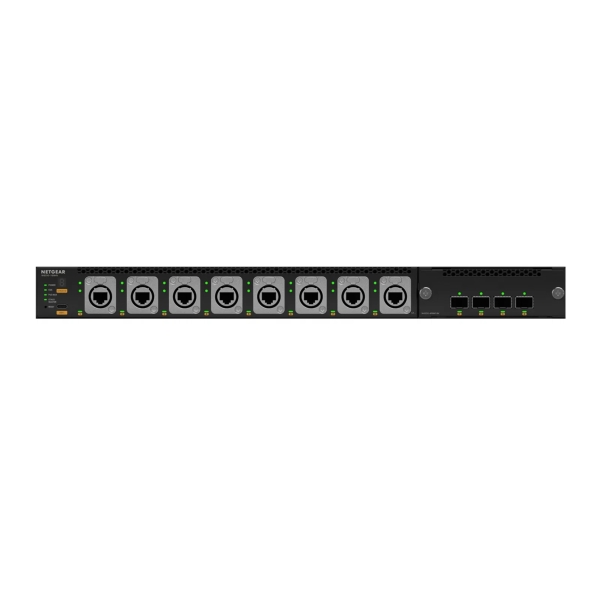

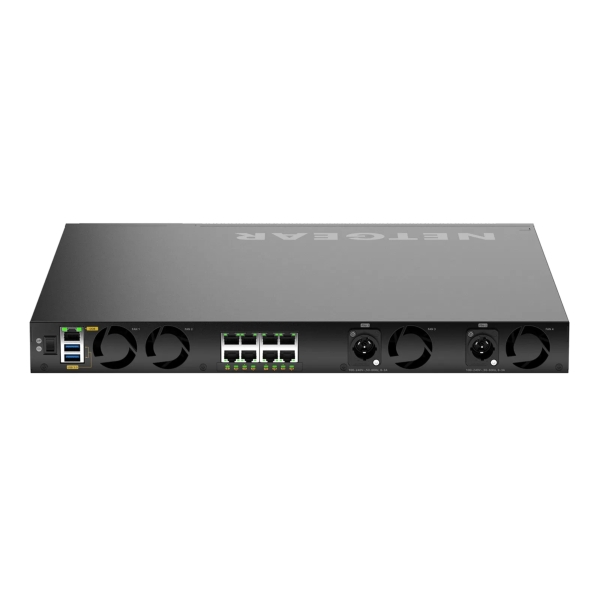

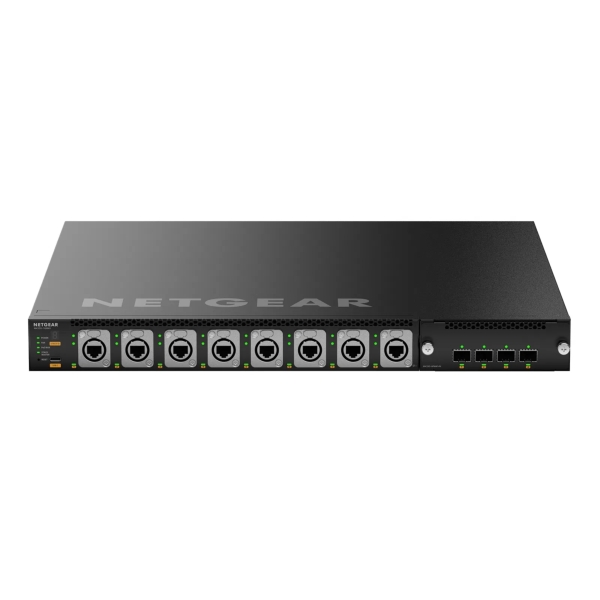

Netgear MSM4320 M4350-16M4V Fully Managed Switch

Netgear MSM4320 Features

- 16x 2.5G PoE++ ports incl. 8x Neutrik etherCON connectors with 4x 25G SFP28 uplinks
- Two internal 800W power supplies providing 530W of redundant base PoE budget
- Switch ships with one APM414V interface card with 4x 25G SFP28 ports
- Optional APM414C Interface Card with 4x 10G RJ-45 ports
- Optional APM414SD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x MMF transceivers
- Optional APM414LD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x SMF transceivers
- 2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus, NETGEAR AV OS, and NETGEAR Engage Controller speed up AV installations
- ST2110 Boundary Clock and Grandmaster clock
- PTP profiles for: SMPTE 2059-2 (video/audio), AES67 (Audio), AES-R16-2016 (Interoperability)
- Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS and Engage Controller
- NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement

Netgear MSM4320 Specifications

- Width: 440mm
- Depth: 432mm
- Height: 43.2mm
- Weight: 7.85kg (17.31lb)
- Primary Port Speed: 2.5 Gigabit
- Number of Ports: 20 (16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28)
- IGMP Support: Enhanced (NETGEAR IGMP Plus)
- Jumbo Frame Support: Yes, up to 12kb
- AVB Support: Yes, included
- Total PoE Budget: 530W -> 1,130W
- # PoE++ Ports: 16
- FORM FACTOR W X H x D (MM): 440 x 432 x 43.2
- MANAGEMENT: NETGEAR Engage Controller
