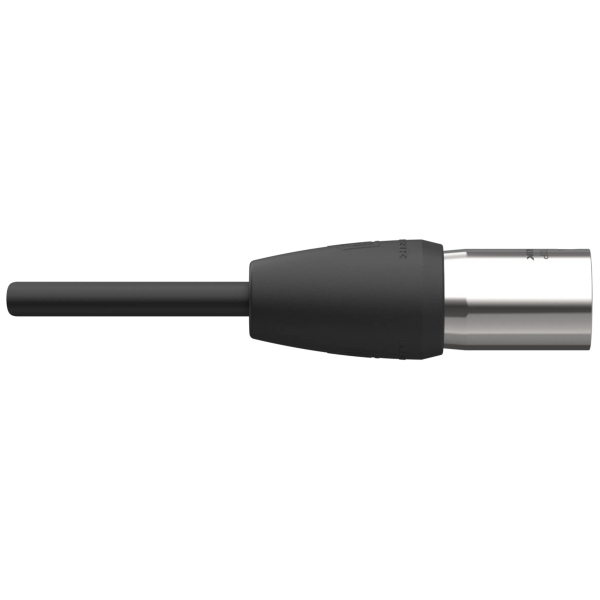

Neutrik NC5MX1-TOP-14 Male 5-Pin Cable Connector for 8-10mm Cable O.D. - Silver, IP65

Neutrik NC5MX1-TOP-14 Features

- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65 when mated with compatible connectors
- TOP-Approved in consideration of UL50E
- Uses high impact UV resistant materials
- Gold-plated contacts for optimal conductivity and corrosion resistance
- Chuck-type strain relief system for secure cable retention

Neutrik NC5MX1-TOP-14 Specifications

Product:
- Title: NC5MX1-TOP-14
- Connection Type: XLR
- Gender: male

Electrical:
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 m?
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 G? (initial)
- Rated current per contact: 7.5 A
- Rated voltage: < 50 V

Mechanical:
- Cable O.D.: 8.0 - 10.0mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 1.0 mm²
- Wiresize: max. 18 AWG
- Wiring: Solder contacts
- Locking device: Latch lock

Material:
- Bushing: UV-resistant rubber
- Contact plating: Gold (Au) over Nickel (Ni)
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 66)
- Locking element: Stainless steel
- Shell: Stainless steel
- Strain relief: Polyacetal

Environmental:
- Approvals: UL
- Flammability: UL 94 V-0
- Standard compliance: IEC 61076-2-103
- Protection class: IP65, UL50E enclosure type 4 (mated)
- Solderability: Complies with IEC 60068-2-20
- Temperature range: -30 °C to +80 °C

Further Product Information Below

Neutrik NC5MX1 TOP 14 Data Sheet (PDF)

Neutrik NC5MX1 TOP 14 Technical Drawing (PDF)
