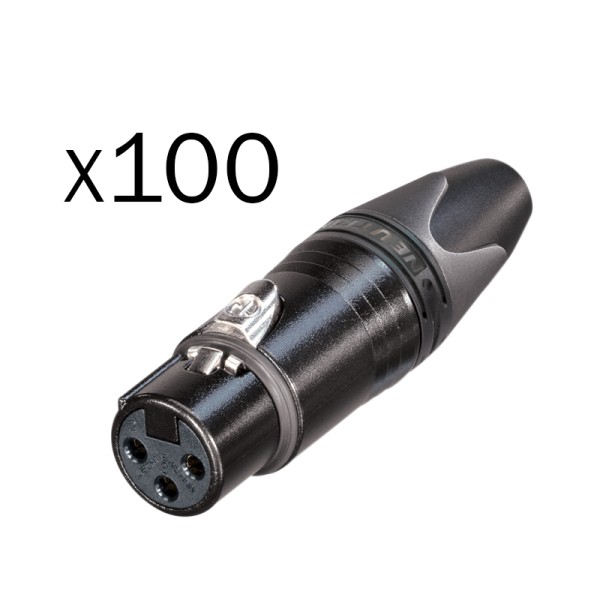

Neutrik NC3FXX-BAG-D 3-Pin Female XLR Cable Connector - Black (Pack of 100)

Neutrik NC3FXX-BAG-D Features

- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NC3FXX-BAG-D Specifications

Product:
- Title: NC3FXX-BAG
- Connection Type: XLR
- Gender: female

Electrical:
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 m?
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 G? (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V

Mechanical:
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 2.5 mm²
- Wiresize: max. 14 AWG
- Wiring: Solder contacts
- Locking device: Latch lock

Material:
- Boot: Polyurethane
- Contact plating: 2 µm Ag
- Contacts: Bronze (CuSn8)
- Insert: Polyamide (PA66)
- Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Locking element plating: Nickel
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell coating: Black KTL
- Strain relief: Polyacetal (POM)

Environmental:
- Flammability: UL 94 V-0
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 60068-2-20
- Temperature range: -30 °C to +80 °C
