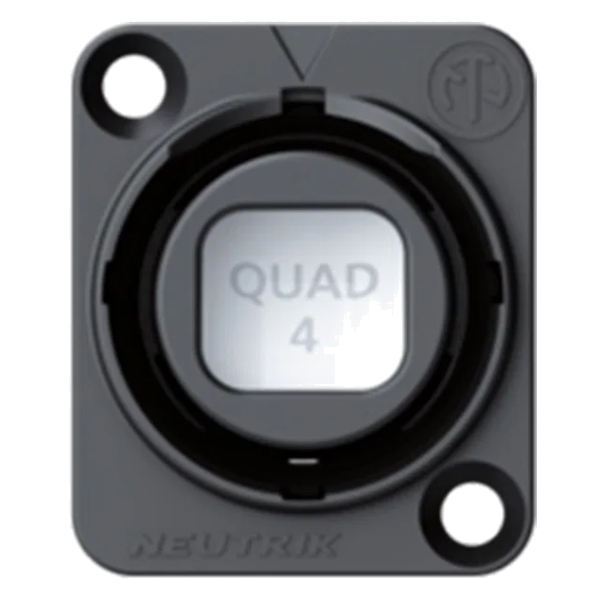

Neutrik NO4FDW-A opticalCON Quad Chassis Feedthrough Socket - IP65, Black

Neutrik NO4FDW-A opticalCON Quad Chassis Feedthrough Socket Features

- Rugged 4-channel Point-to-Point multichannel routing solution
- Laser protected metal shutter seals dust proof with two-component rubber gasket
- IP65 ingress protection in mated condition with SCDP-*
- Accommodates standard LC connectors on the rear for cost effective and simple installations
- Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard
  - Multi mode - black
  - Single mode PC - blue
  - Single mode APC - green

Neutrik NO4FDW-A opticalCON Quad Chassis Feedthrough Socket Specifications

Mechanical:
- Insertion force: < 45 N
- Withdrawal force: < 45 N
- Lifetime (typ.): 5000 mating cycles
- Locking device: Push-Pull
- Mounting direction: Front mounting
- Chassis shape: D

Material:
- Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium

Environmental:
- Temperature range: -40 °C to +75 °C
- Protection class: IP65 in mated condition in combination with SCDP-*

Optical:
- Insertion loss: < 0.5 dB / connection

Further Product Information Below

Neutrik NO4FDW-A Data Sheet (PDF)
