Neutrik NAC3F-TRUE1-L-D PowerCON TRUE1 Output Connector for 10-16mm Cable (Pack of 50)

Name: Neutrik NAC3F-TRUE1-L-D PowerCON TRUE1 Output Connector for 10-16mm Cable (Pack of 50)
Brand: Neutrik
Price: 407.95 GBP
Availability: InStock

Price per Pack of 50 £339.96 (£407.95 Including VAT at 20%)

REF: JP112348

Quantity:

Neutrik NAC3F-TRUE1-L-D PowerCON TRUE1 Output Connector for 10-16mm Cable (Pack of 50)

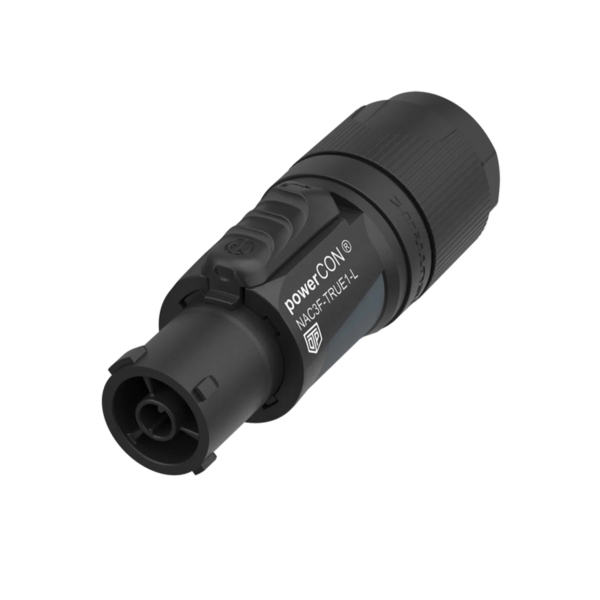

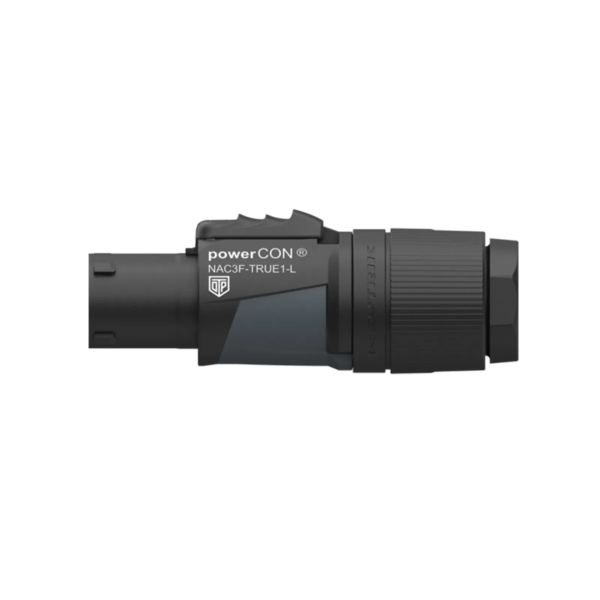

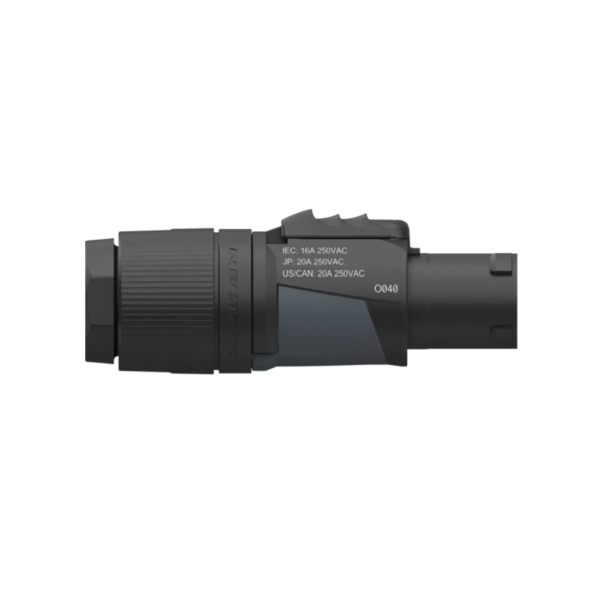

The Neutrik NAC3F-TRUE1-L-D PowerCON TRUE1 Output Connector for 10-16mm Cable is a heavy-duty 16A locking female cable connector from the powerCON TRUE1 series, designed for professional AV, lighting, and industrial power applications. With Certified Breaking Capacity (CBC), this rugged connector supports safe live connect/disconnect. It features an IP65/IP67-sealed UV-resistant polyamide housing, twist-lock system, and secure strain relief for cable diameters from 10-16mm. Certified to ENEC, VDE, UL, and CSA standards, the NAC3F-TRUE1-L is built to endure harsh outdoor environments with over 5,000 mating cycles.

Click Here for Printer Friendly Version

Neutrik NAC3F-TRUE1-L-D Features

- Certified Breaking Capacity (CBC) - connect/disconnect under load
- Rated IP65/IP67 when mated or sealed
- UV-resistant, high-impact PA 6.6 polyamide housing
- Certified: ENEC, VDE, UL, CSA
- Twist-lock design with secure locking bushing
- Supports cable OD 10-16mm
- Strain relief built from durable polyketon
- Withstands over 5,000 mating cycles
- Ideal for AV, lighting, and outdoor power systems

Neutrik NAC3F-TRUE1-L-D Specifications

- Rated Current: 16A / 250V AC (EU); 20A / 250V AC (USA/Canada)
- Contacts: 2 + PE
- Contact Resistance: ≤ 2 mΩ
- Dielectric Strength: 4 kV DC / 2.8 kV AC
- Insulation Resistance: >0.1 GΩ (post humidity test)
- Cable OD: 10-16mm
- Wire Size: 1.0-2.5mm² / 14-12 AWG
- Contact Plating: 2 μm Ag
- Contact Material: Copper Alloy
- Housing/Insert/Shell: Polyamide (PA 6.6)
- Locking Element: PA 6.6
- Strain Relief: Polyketon
- Flammability: UL 94 V-0
- UV Resistance: F1-rated material
- Temperature Range: -30°C to +80°C (IEC 61984); -5°C to +40°C (IEC 60320-1)

Further Product Information Below

Neutrik NAC3F-TRUE1-L Data Sheet (PDF)
