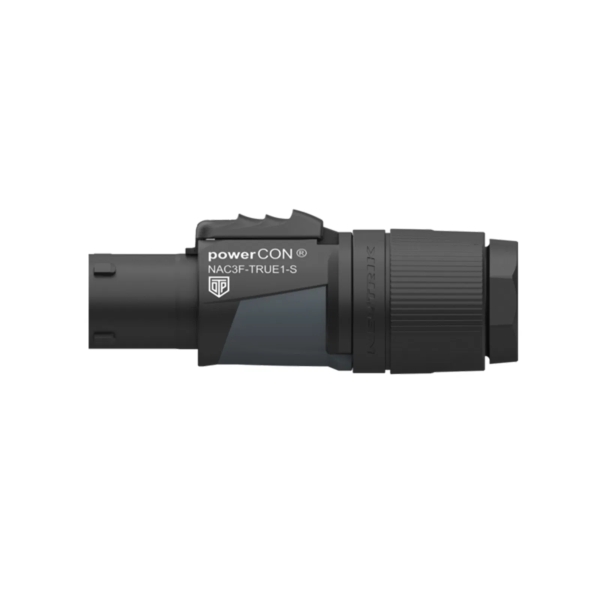

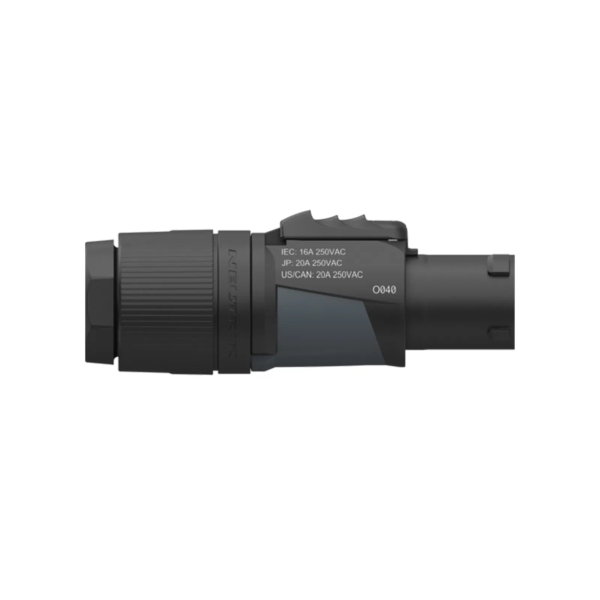

Neutrik NAC3F-TRUE1-S PowerCON TRUE1 Output Connector for 6-12mm Cable

Neutrik NAC3F-TRUE1-S Features

- Breaking Capacity (CBC) for safe connection/disconnection under load
- Rated IP65/IP67 when mated or capped for outdoor protection
- High-impact, UV-resistant PA66 polyamide housing
- Certified by ENEC, VDE, UL, and CSA for international compliance
- Twist-lock design for secure power connections
- Supports 6-12mm cable outer diameters
- Withstands over 5,000 mating cycles
- Temperature range: -30°C to +80°C

Neutrik NAC3F-TRUE1-S Specifications

- Rated Current: 16A / 250V AC (EU), 20A / 250V AC (US)
- Contacts: 2 + PE
- Contact Resistance: ≤ 2 mΩ
- Dielectric Strength: 4kV DC / 2.8kV AC
- Insulation Resistance: >0.1 GΩ (after damp/heat test)
- Cable OD Compatibility: 6-12mm
- Wire Size: 1.0-2.5mm² / 14 AWG
- Mating Cycles: >5,000
- Contact Plating: 2 µm Ag (silver)
- Contacts: Copper alloy
- Locking Element: Polyamide (PA66)
- Shell & Insert: Polyamide (PA66)
- Strain Relief: Polyketon
- Flammability: UL 94 V-0
- Protection Class: IP65 / IP67 (mated or sealed)
- UV Resistance: F1-rated for outdoor use
- Temperature Range: -30°C to +80°C (IEC 61984); -5°C to +40°C (IEC 60320-1)

Further Product Information Below

Neutrik NAC3F-TRUE1-S Data Sheet (PDF)
