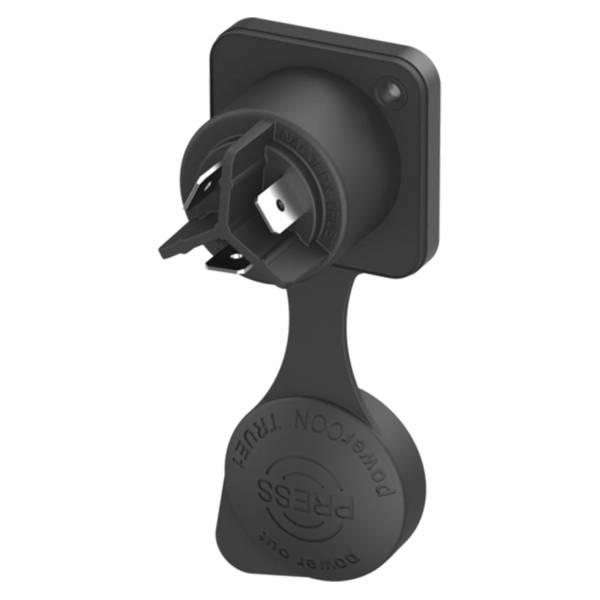

Neutrik NAC3FPX-TRUE1 PowerCON TRUE1 Chasis Output Connector with Sealing Cap

Name: Neutrik NAC3FPX-TRUE1 PowerCON TRUE1 Chasis Output Connector with Sealing Cap
Brand: Neutrik
Price: 12.82 GBP
Availability: InStock

Price Each £10.68 (£12.82 Including VAT at 20%)

REF: JP112352

Quantity:

Neutrik NAC3FPX-TRUE1 PowerCON TRUE1 Chasis Output Connector with Sealing Cap

The Neutrik NAC3FPX-TRUE1 PowerCON TRUE1 Chasis Output Connector with Sealing Cap is a rugged 16A locking female chassis connector from the powerCON TRUE1 series, engineered for professional AV, lighting, and industrial applications. Featuring certified Breaking Capacity (CBC), it supports safe connection and disconnection under load. With IP65, IP66, and IP67 protection when mated or sealed, plus a UV-resistant PA6.6 shell, this airtight connector is ideal for harsh environments. ENEC, VDE, UL, and CSA certified for international compliance, the NAC3FPX-TRUE1 delivers dependable mains power connectivity in outdoor and mission-critical installations.

Click Here for Printer Friendly Version

Neutrik NAC3FPX-TRUE1 Features

- Breaking Capacity (CBC) for live connection/disconnection
- IP65, IP66, and IP67 rated when mated or sealed
- UV-resistant polyamide PA 6.6 housing
- Certified by ENEC, VDE, UL, and CSA
- Secure twist-lock mechanism for reliable connection
- Rated for over 5,000 mating cycles
- Temperature range: -30°C to +80°C
- Ideal for professional AV, lighting, and industrial power systems

Neutrik NAC3FPX-TRUE1 Specifications

- Rated Current: 16A / 250V AC (Europe), 20A / 250V AC (USA)
- Contacts: 2 + PE
- Contact Resistance: ≤ 2 mΩ
- Dielectric Strength: 4 kV DC / 2.8 kV AC
- Insulation Resistance: > 1 GΩ (after damp/heat test)
- Wire Size: 2.5 mm² / 12 AWG
- Mating Cycles: > 5,000
- Contact Plating: 2 μm Ag
- Contacts: Copper Alloy
- Locking Element: Stainless Steel
- Shell: Polyamide (PA 6.6)
- Flammability: UL 94 V-0
- Protection Class: IP65 / IP66 / IP67 (mated or sealed)
- UV Resistance: F1 rated (outdoor safe)
- Operating Temp: -30°C to +80°C (IEC 61984), -5°C to +40°C (IEC 60320-1)
