Neutrik NAC3M-TRUE1-L PowerCON TRUE1 Input Connector for 10-16mm Cable

Name: Neutrik NAC3M-TRUE1-L PowerCON TRUE1 Input Connector for 10-16mm Cable
Brand: Neutrik
Price: 14.58 GBP
Availability: InStock

Price Each £12.15 (£14.58 Including VAT at 20%)

REF: JP112345

Quantity:

Neutrik NAC3M-TRUE1-L PowerCON TRUE1 Input Connector for 10-16mm Cable

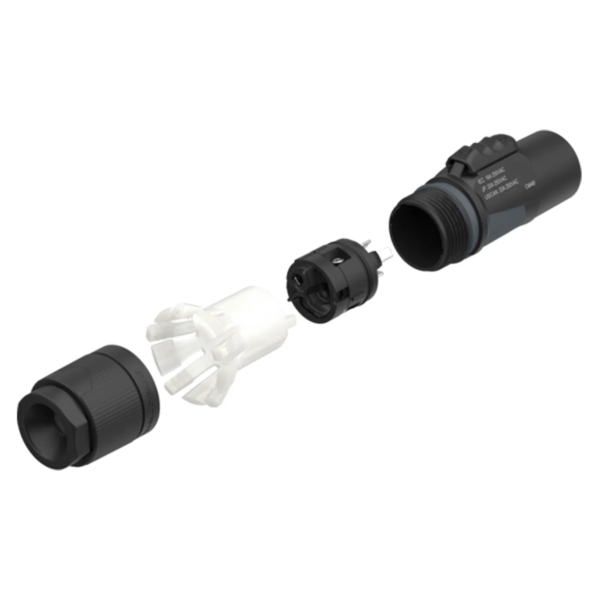

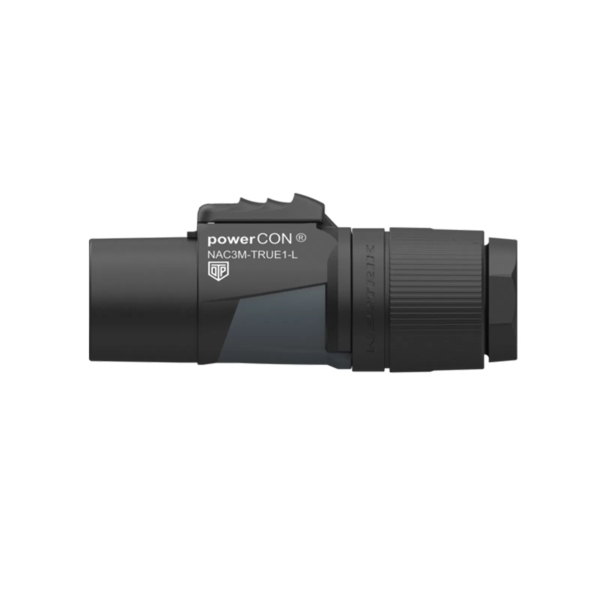

The Neutrik NAC3M-TRUE1-L PowerCON TRUE1 Input Connector for 10-16mm Cable is a rugged 16A locking male cable connector from the powerCON TRUE1 series, engineered for harsh and demanding environments in professional AV, lighting, and industrial power setups. With Certified Breaking Capacity (CBC), it allows safe connection/disconnection under load. Designed with a UV-resistant PA 6.6 housing and rated IP65/IP67 when mated or capped, it ensures secure operation outdoors or in mission-critical applications. This 'L' version supports larger cable types and complies with ENEC, VDE, UL, and CSA certifications for global installation compatibility.

Click Here for Printer Friendly Version

Neutrik NAC3M-TRUE1-L Features

- Breaking Capacity (CBC) for live connect/disconnect
- IP65/IP67 rated when mated or sealed
- UV-resistant polyamide (PA 6.6) housing
- Certified to ENEC, VDE, UL, CSA standards
- Supports cable diameters: 10-16mm
- Twist-lock mechanism for reliable secure fit
- Durable: 5,000+ mating cycles
- Temperature range: -30°C to +80°C

Neutrik NAC3M-TRUE1-L Specifications

- Rated Current: 16A / 250V AC (EU), 20A / 250V AC (US)
- Contacts: 2 + PE
- Contact Resistance: ≤ 2 mΩ
- Dielectric Strength: 4 kV DC / 2.8 kV AC
- Insulation Resistance: >0.1 GΩ (IEC 68-2-30)
- Cable Diameter: 10-16mm (0.39-0.63")
- Wire Size: 1.0-2.5mm² / 14-12 AWG
- Mating Cycles: >5,000
- Contact Plating: 2μm Ag
- Contacts: Copper Alloy
- Locking Element & Shell: PA 6.6
- Strain Relief: Polyketon
- Flammability Rating: UL 94 V-0
- Protection: IP65/IP67 (mated/sealed)
- UV Resistance: F1 rated
- Operating Temp: -30°C to +80°C (IEC 61984), -5°C to +40°C (IEC 60320-1)

Further Product Information Below

Neutrik NAC3M-TRUE1-L Data Sheet (PDF)
