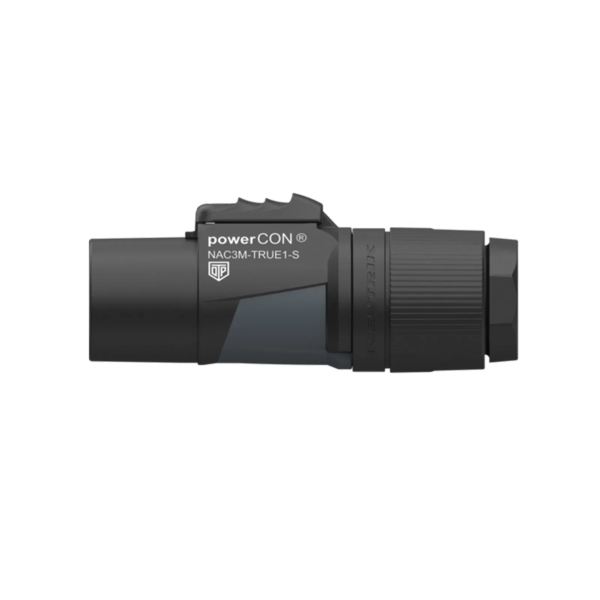

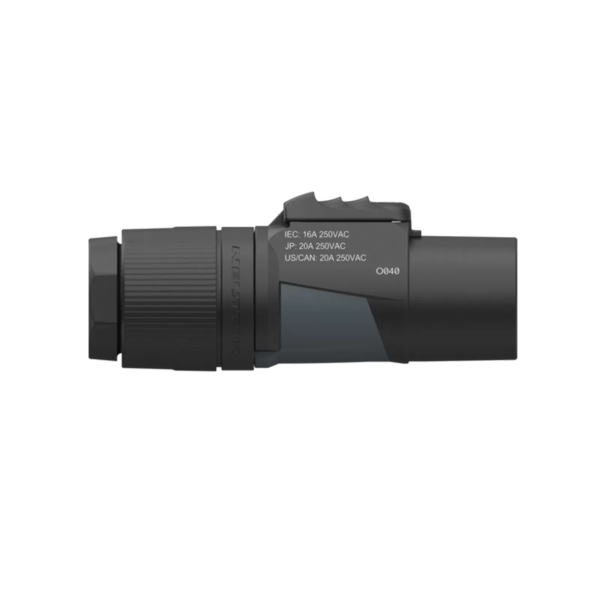

Neutrik NAC3M-TRUE1-S PowerCON TRUE1 Input Connector for 6-12mm Cable

Name: Neutrik NAC3M-TRUE1-S PowerCON TRUE1 Input Connector for 6-12mm Cable
Brand: Neutrik
Price: 14.58 GBP
Availability: InStock

Price Each £12.15 (£14.58 Including VAT at 20%)

REF: JP112341

Quantity:

Neutrik NAC3M-TRUE1-S PowerCON TRUE1 Input Connector for 6-12mm Cable

The Neutrik NAC3M-TRUE1-S PowerCON TRUE1 Input Connector is a professional-grade 16A locking male mains connector from the powerCON TRUE1 series, purpose-built for harsh and demanding environments across AV, lighting, and industrial applications. Featuring Certified Breaking Capacity (CBC), this connector supports safe live connection and disconnection under load. With an IP65/IP67-rated seal when mated or capped, and made from UV-resistant polyamide (PA 6.6), it ensures long-lasting protection against water, dust, and environmental wear. Globally certified by ENEC, VDE, UL, and CSA, the NAC3M-TRUE1-S guarantees safety, reliability, and performance for critical power distribution.

Click Here for Printer Friendly Version

Neutrik NAC3M-TRUE1-S Features

- Certified Breaking Capacity (CBC) for safe live connect/disconnect
- IP65/IP67 rated when mated or sealed
- High-impact, UV-resistant PA 6.6 housing
- Lockable single-phase power connector
- ENEC, VDE, UL, and CSA certified
- Durable twist-lock mechanism for secure connection
- Supports cables with 6-12mm OD (H05VV-F, H07RN-F, SJOOW)
- 5,000+ mating cycle lifespan
- Operates in extreme temperatures: -30°C to +80°C

Neutrik NAC3M-TRUE1-S Specifications

- Rated Current: 16A / 250V AC (Europe), 20A / 250V AC (USA)
- Electrical Contacts: 2 + PE
- Contact Resistance: ≤ 2 mΩ
- Dielectric Strength: 4 kV DC / 2.8 kV AC
- Insulation Resistance: >0.1 GΩ (IEC 68-2-30)
- Cable OD Compatibility: 6-12mm
- Wire Size: 1.0-2.5 mm² / 14 AWG
- Mating Cycles: >5,000
- Contact Plating: 2 μm Ag
- Contacts: Copper Alloy
- Locking Element / Insert / Shell: Polyamide (PA 6.6)
- Strain Relief: Polyketon
- Flammability: UL 94 V-0
- Protection Class: IP65 / IP67 (mated or capped)
- UV Resistance: F1 rated material
- Operating Temperature: -30°C to +80°C (IEC 61984), -5°C to +40°C (IEC 60320-1)

Further Product Information Below

Neutrik NAC3M-TRUE1-S Data Sheet (PDF)
