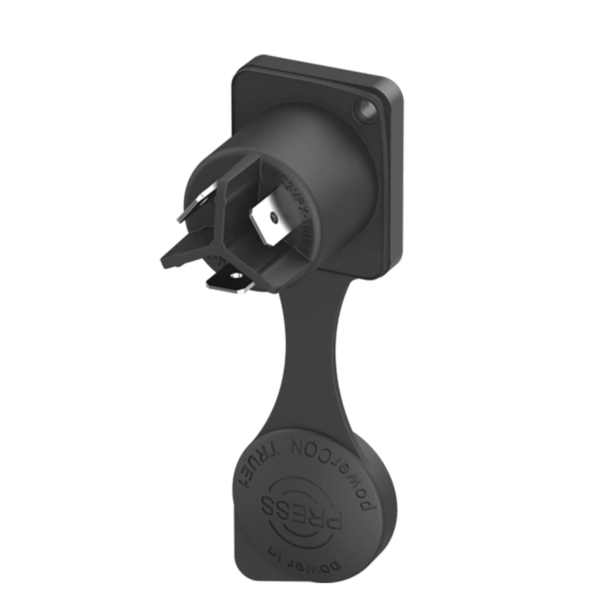

Neutrik NAC3MPX-TRUE1 PowerCON TRUE1 Chasis Input Connector with Sealing Cap

Name: Neutrik NAC3MPX-TRUE1 PowerCON TRUE1 Chasis Input Connector with Sealing Cap
Brand: Neutrik
Price: 17.65 GBP
Availability: InStock

Price Each £14.71 (£17.65 Including VAT at 20%)

REF: JP112351

Quantity:

Neutrik NAC3MPX-TRUE1 PowerCON TRUE1 Chasis Input Connector with Sealing Cap

The Neutrik NAC3MPX-TRUE1 PowerCON TRUE1 Chasis Input Connector is a rugged locking 16A chassis connector from the premium powerCON TRUE1 series, engineered for outdoor, industrial, and AV environments requiring high durability and safety. With Certified Breaking Capacity (CBC), this true mains connector can be safely connected or disconnected under load. Featuring an airtight twist-lock design, it ensures full IP65, IP66, and IP67 protection when mated or capped. Built from UV-resistant PA 6.6 with stainless steel locking, and certified by ENEC, VDE, UL, and CSA, the NAC3MPX-TRUE1 is trusted for global power connectivity in demanding applications.

Click Here for Printer Friendly Version

Neutrik NAC3MPX-TRUE1 Features

- Certified Breaking Capacity (CBC) for live connect/disconnect
- IP65/IP66/IP67 ingress protection when mated or sealed
- High-impact, UV-resistant PA 6.6 polyamide shell
- ENEC, VDE, UL, and CSA certified
- Stainless steel locking for reliable twist-lock engagement
- Rated for over 5,000 mating cycles
- Suitable for harsh AV, lighting, and industrial installations
- Extended operating temperature: -30°C to +80°C

Neutrik NAC3MPX-TRUE1 Specifications

- Rated Current: 16A / 250V AC (Europe), 20A / 250V AC (USA/Canada)
- Contacts: 2 + PE
- Contact Resistance: ≤ 2 mΩ
- Dielectric Strength: 4 kV DC / 2.8 kV AC
- Insulation Resistance: > 1 GΩ (after damp/heat test)
- Wire Size: 2.5 mm² / 12 AWG
- Mating Cycles: > 5,000
- Contact Plating: 2 μm Ag
- Contacts: Copper Alloy
- Locking Element: Stainless Steel
- Shell: Polyamide (PA 6.6)
- Flammability: UL 94 V-0
- Protection Class: IP65 / IP66 / IP67 (mated or sealed)
- UV Resistance: F1 rated material
- Temperature Range: -30°C to +80°C (IEC 61984), -5°C to +40°C (IEC 60320-1)

Further Product Information Below

Neutrik NAC3MPX-TRUE1 Data Sheet (PDF)
