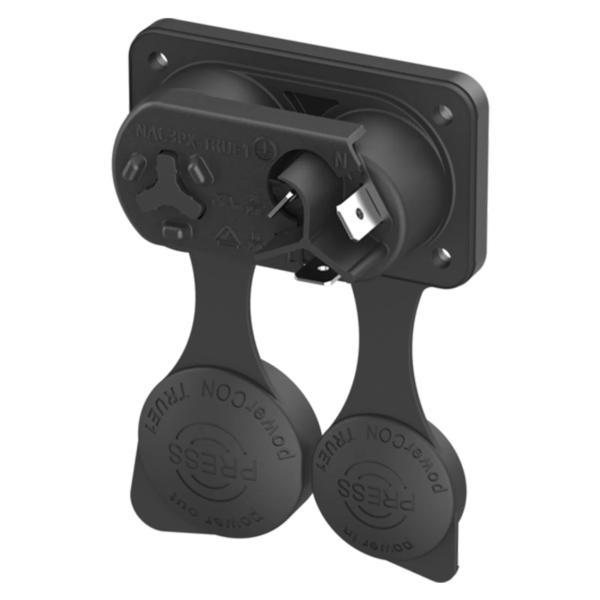

Neutrik NAC3PX-TRUE1 PowerCON TRUE1 Chasis Input & Output Connector with Sealing Cap

Name: Neutrik NAC3PX-TRUE1 PowerCON TRUE1 Chasis Input & Output Connector with Sealing Cap
Brand: Neutrik
Price: 17.65 GBP
Availability: InStock

Price Each £14.71 (£17.65 Including VAT at 20%)

REF: JP112353

Quantity:

Neutrik NAC3PX-TRUE1 PowerCON TRUE1 Chasis Input & Output Connector with Sealing Cap

The Neutrik NAC3PX-TRUE1 PowerCON TRUE1 Chasis Input & Output Connector with Sealing Cap is a rugged 16A locking inline cable connector from the powerCON TRUE1 series, designed for secure mains power connections in audio, lighting, and industrial setups. Engineered with Certified Breaking Capacity (CBC) for safe live connect and disconnect, this connector provides reliable power even in harsh environments. When mated or fitted with a sealing cap, it delivers airtight IP65, IP66, and IP67 protection against dust and water. Built from UV-resistant polyamide (PA 6.6) with corrosion-resistant stainless steel hardware, it's ideal for outdoor and mobile power applications. Fully certified by ENEC, VDE, UL, and CSA for global compliance.

Click Here for Printer Friendly Version

Neutrik NAC3PX-TRUE1 Features

- Lockable 16A inline mains power connector
- Certified Breaking Capacity (CBC) for live connect/disconnect
- Airtight sealing when mated or capped (IP65/IP66/IP67 rated)
- UV-resistant polyamide (PA 6.6) housing
- Stainless steel locking hardware for outdoor durability
- Ideal for audio, lighting, and industrial power systems
- Global safety compliance: ENEC, VDE, UL, CSA

Neutrik NAC3PX-TRUE1 Specifications

- Rated Current: 16A
- Rated Voltage: 250V AC
- Ingress Protection: IP65/IP66/IP67 (when mated or capped)
- Material: UV-resistant PA 6.6, stainless steel
- Temperature Range: -30°C to +80°C
- Approvals: ENEC, VDE, UL, CSA
- Connection Type: Inline plug

Further Product Information Below

Neutrik NAC3PX-TRUE1 Data Sheet (PDF)
