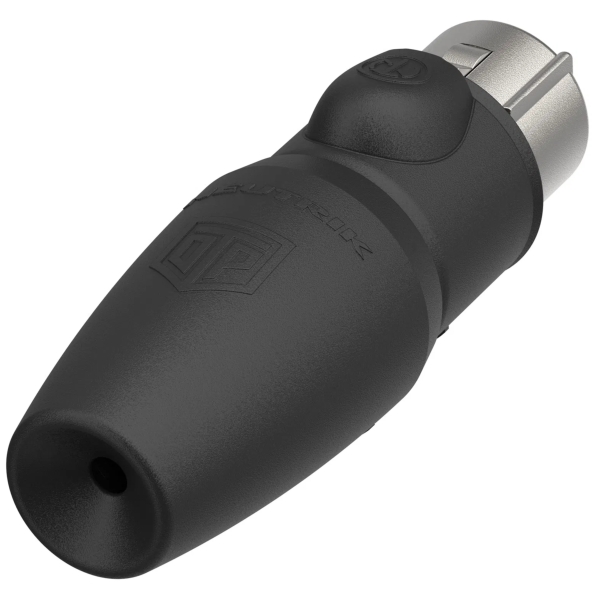

Neutrik NC3FX1-TOP 3-Pin Female Cable Connector - Silver, IP65

Neutrik NC3FX1-TOP Features

- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65
- Uses high impact UV-resistant materials
- TOP - True Outdoor Protection in consideration of UL50E

Neutrik NC3FX1-TOP Specifications

Product:
- Title: NC3FX1-TOP
- Connection Type: XLR
- Gender: female

Electrical:
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 m?
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 G? (initial)
- Rated current per contact: 16 A
- Rated voltage: ≤ 50 V

Mechanical:
- Cable O.D.: 5.0 - 8.0 mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 5000 mating cycles
- Wiresize (mm²): max. 1.5 mm²
- Wiresize (AWG): max. 16 AWG
- Wiring: Solder contacts
- Locking device: Latch lock

Material:
- Bushing: UV-resistant rubber
- Contact plating: Gold (Au) over Nickel (Ni)
- Contacts: Bronze (CuSn8)
- Insert: Polyamide (PA66)
- Locking element: St3K32 (latch) / Ck 67 (spring)
- Shell: Zinc diecast (ZnAI4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal
- Sealing jacket: UV-resistant rubber

Environmental:
- Flammability acc. to UL94: V0 (insert)
- Standard compliance: IEC 61076-2-103
- Protection class acc. to OEC 60529: IP 65 (mated)
- Solderability standard: IEC 60068-2-20
- Temperature range: -30 °C to +80 °C
- Polltion degree acc. to IEC 60664-1: II
