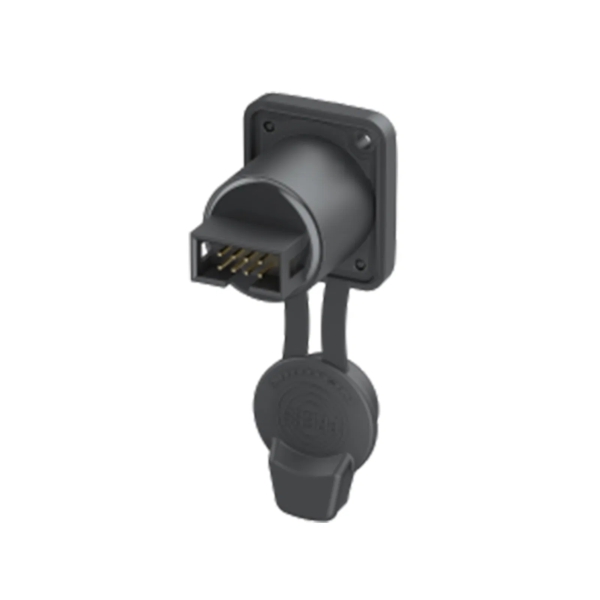

Neutrik NE8FDIS-TOP EtherCON IP65 / IP67 Chassis Connector

Name: Neutrik NE8FDIS-TOP EtherCON IP65 / IP67 Chassis Connector
Brand: Neutrik
Price: 9.79 GBP
Availability: InStock

Price Each £8.16 (£9.79 Including VAT at 20%)

REF: JP112420

Quantity:

Neutrik NE8FDIS-TOP EtherCON IP65 / IP67 Chassis Connector

The Neutrik NE8FDIS-TOP EtherCON IP65 / IP67 Chassis Connector is a premium EtherCON RJ45 chassis connector designed for demanding outdoor applications. Featuring IP65/IP67 sealing-even when unmated-airtight construction, corrosion resistance, UV protection, and 100W PoE support (IEEE 802.3bt Type 4 Class 8), this rugged D-shape front-mount connector provides reliable data transmission in harsh environments. The IDC termination features a 2x4 pin box header feedthrough for efficient internal wiring. ESD protection up to 2kV and compliance with international standards make it ideal for professional AV, broadcast, and industrial use.

Click Here for Printer Friendly Version

Neutrik NE8FDIS-TOP EtherCON IP65 / IP67 Chassis Connector Features

- IP65/IP67 protection even when unmated with sealing cap
- Airtight design for outdoor and harsh environments
- IDC 2x4 pin box header feedthrough for efficient internal wiring
- Supports High-Power PoE (100W, IEEE 802.3bt Type 4 Class 8)
- UV-resistant and corrosion-resistant materials
- 2 kV ESD protection
- Seamless EtherCON TOP design language
- Easy maintenance front-mount design
- Latch lock mechanism for secure mating
- Durable construction rated for ≥1000 mating cycles

Neutrik NE8FDIS-TOP EtherCON IP65 / IP67 Chassis Connector Specifications

- Connection type: RJ45 feedthrough with IDC 2x4 pin box header termination
- Mounting: D-shape front-mount chassis
- Gender: Female
- Contact plating: Gold-plated brass
- Contact resistance: <10mΩ
- Insulation resistance: >0.5GΩ
- Rated current: 1.5A
- Rated voltage: ≤57V
- Transmission: CAT3 / CLASS C, 1-16MHz
- Temperature range: -30°C to +70°C
- Ingress protection: IP65 / IP67
- Material: PA66 housing, brass contacts
- Panel cutout: 24mm D-shape with standard EtherCON mounting holes
- Compliance: UL1863, CSA C22.2 No.182.4-M90, IEC 62368-1:2018 Annex Y

Further Product Information Below

Neutrik NE8FDIS-TOP Data Sheet (PDF)

Neutrik NE8FDIS-TOP Technical Drawing (PDF)
