Neutrik NE8FDPS-TOP etherCON IP65 / IP67 Chassis Connector

Name: Neutrik NE8FDPS-TOP etherCON IP65 / IP67 Chassis Connector
Brand: Neutrik
Price: 10.22 GBP
Availability: InStock

Price Each £8.52 (£10.22 Including VAT at 20%)

REF: JP112421

Quantity:

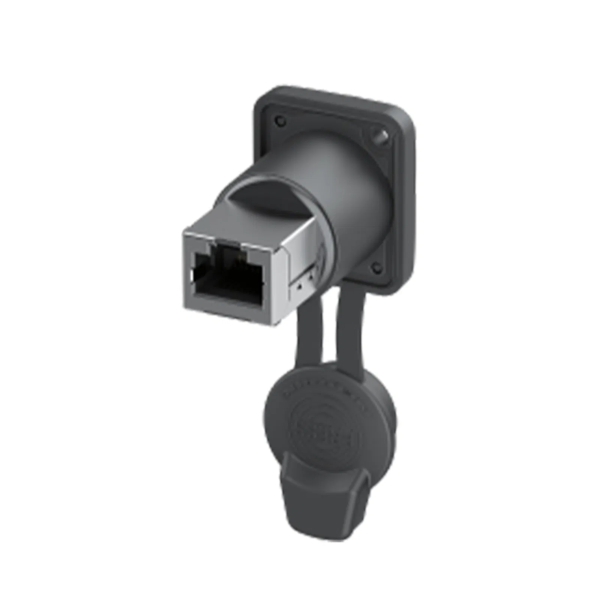

Neutrik NE8FDPS-TOP etherCON IP65 / IP67 Chassis Connector

The Neutrik NE8FDPS-TOP etherCON IP65 / IP67 Chassis Connector is a robust etherCON RJ45 feedthrough chassis connector, purpose-built for outdoor and harsh environment applications. Offering IP65/IP67 protection-even when unmated-airtight construction, corrosion resistance, UV protection, and 100W PoE (IEEE 802.3bt Type 4 Class 8) support, this front-mount D-shape connector ensures CAT5e/Class D transmission up to 100MHz. With seamless design language, ESD protection to 2kV, and compliance with global standards, it's the ideal solution for professional AV, broadcast, and industrial networking.

Click Here for Printer Friendly Version

Neutrik NE8FDPS-TOP etherCON IP65 / IP67 Chassis Connector Features

- IP65/IP67 protection even when unmated with sealing cap
- Airtight design for extreme outdoor environments
- Supports High-Power PoE (100W, IEEE 802.3bt Type 4 Class 8)
- UV-resistant and corrosion-resistant materials
- CAT5e/Class D performance up to 100MHz
- Seamless etherCON TOP design language
- ESD protection up to 2kV
- Easy maintenance front-mount design
- Latch lock mechanism for secure mating
- Durable construction rated for ≥1000 mating cycles

Neutrik NE8FDPS-TOP etherCON IP65 / IP67 Chassis Connector Specifications

- Connection type: RJ45 feedthrough
- Mounting: D-shape front-mount chassis
- Gender: Female
- Contact plating: Gold-plated brass
- Contact resistance: <10mΩ
- Insulation resistance: >0.5GΩ
- Rated current: 1.5A
- Rated voltage: ≤57V
- Transmission: CAT5e / CLASS D, 1-100MHz
- Temperature range: -30°C to +70°C
- Ingress protection: IP65 / IP67
- Material: PA66 housing, brass contacts
- Compliance: UL1863, CSA C22.2 No.182.4-M90, IEC 62368-1:2018 Annex Y

Further Product Information Below

Neutrik NE8FDPS-TOP Manual (PDF)

Neutrik NE8FDPS-TOP Data Sheet (PDF)
