Neutrik NE8FDPU-TOP etherCON IP65 / IP67 Chassis Connector

Name: Neutrik NE8FDPU-TOP etherCON IP65 / IP67 Chassis Connector
Brand: Neutrik
Price: 10.22 GBP
Availability: InStock

Price Each £8.52 (£10.22 Including VAT at 20%)

REF: JP112422

Quantity:

Neutrik NE8FDPU-TOP etherCON IP65 / IP67 Chassis Connector

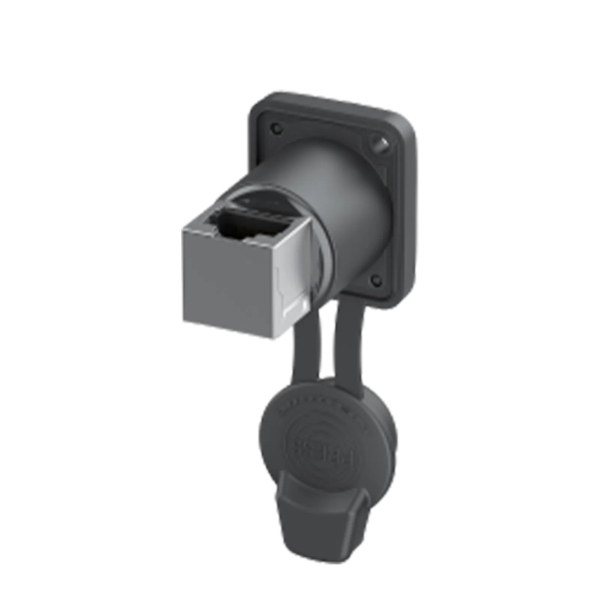

The Neutrik Neutrik NE8FDPU-TOP etherCON IP65 / IP67 Chassis Connector is a premium etherCON RJ45 90° angled feedthrough chassis connector designed for demanding outdoor applications and harsh environments. With IP65/IP67 ingress protection even when unmated, airtight sealing, corrosion and UV resistance, and 100W PoE (IEEE 802.3bt Type 4 Class 8) support, this D-shape front-mount connector ensures reliable CAT5e/Class D transmission up to 100MHz. Its 90° upward orientation is ideal for space-saving installations in professional AV, industrial, and broadcast systems.

Click Here for Printer Friendly Version

Neutrik NE8FDPU-TOP etherCON IP65 / IP67 Chassis Connector Features

- IP65/IP67 protection even when unmated with sealing cap
- Airtight design for harsh and outdoor environments
- 90° angled RJ45 feedthrough for space-constrained installations
- Supports High-Power PoE (100W, IEEE 802.3bt Type 4 Class 8)
- UV-resistant and corrosion-resistant materials
- CAT5e/Class D performance up to 100MHz
- Seamless etherCON TOP design language
- ESD protection up to 2kV
- Easy maintenance front-mount design
- Latch lock mechanism for secure mating
- ≥1000 mating cycles durability

Neutrik NE8FDPU-TOP etherCON IP65 / IP67 Chassis Connector Specifications

- Connection type: RJ45 feedthrough (90° angled upwards)
- Mounting: D-shape front-mount chassis
- Gender: Female
- Contact plating: Gold-plated brass
- Contact resistance: <10mΩ
- Insulation resistance: >0.5GΩ
- Rated current: 1.5A
- Rated voltage: ≤57V
- Transmission: CAT5e / CLASS D, 1-100MHz
- Temperature range: -30°C to +70°C
- Ingress protection: IP65 / IP67
- Material: PA66 housing, brass contacts
- Compliance: UL1863, CSA C22.2 No.182.4-M90, IEC 62368-1:2018 Annex Y

Further Product Information Below

Neutrik NE8FDPU-TOP Manual (PDF)

Neutrik NE8FDPU-TOP Data Sheet (PDF)
