Neutrik NE8MXR-B-TOP EtherCON Cable Connector (Pack of 100)

Name: Neutrik NE8MXR-B-TOP EtherCON Cable Connector (Pack of 100)
Brand: Neutrik
Price: 568.21 GBP
Availability: InStock

Price Each £473.51 (£568.21 Including VAT at 20%)

REF: JP112355

Quantity:

Neutrik NE8MXR-B-TOP EtherCON Cable Connector (Pack of 100)

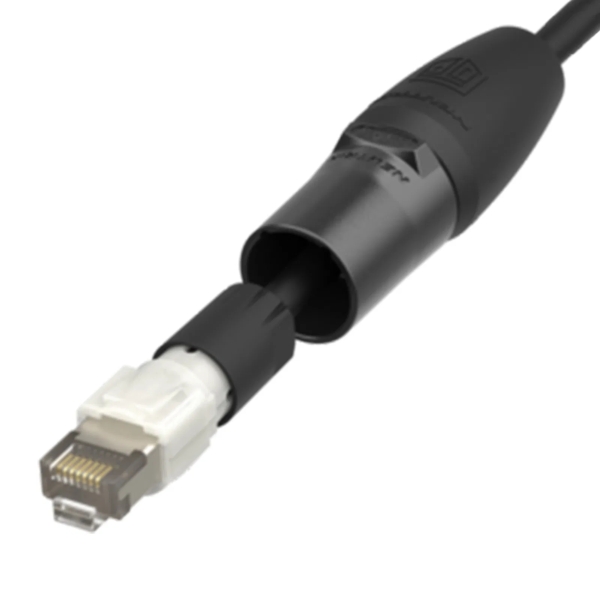

The Neutrik NE8MXR-B-TOP EtherCON Cable Connector is a rugged, retractable RJ45 carrier connector from the etherCON TRUE OUTDOOR PROTECTION (TOP) series, engineered for demanding conditions. With a retractable shell for compatibility with both standard RJ45 and etherCON receptacles, it ensures secure, weather-resistant performance. IP65-rated when mated or sealed, it features UV-resistant, halogen-free materials and a flame-retardant V0 rating-ideal for professional AV, industrial, and outdoor networking.

Click Here for Printer Friendly Version

Neutrik NE8MXR-B-TOP Features

- Retractable shell design ensures compatibility with standard RJ45 and etherCON receptacles
- Die-cast zinc housing with chuck-type strain relief
- IP65 protection when mated or sealed with SCMX-TOP cap
- UV-resistant, halogen-free, V0 flame-rated materials
- Supports cables with outer diameters of 5.5-8.0mm
- ≥1,000 mating cycles and ≥100 retracting cycles for long-term reliability
- Designed for outdoor, professional AV, and industrial networking applications

Neutrik NE8MXR-B-TOP Specifications

- Product Family: etherCON
- Connection Type: RJ45 carrier cable connector
- Gender: Male
- Cable OD Compatibility: 5.5-8.0mm
- Insertion/Withdrawal Force: ≤30N
- Mating Cycles: ≥1,000
- Retracting Cycles: ≥100
- Protection Class: IP65 (mated or with sealed cap)
- Temperature Range: -30°C to +80°C
- Boot: Thermoplastic Elastomer (TPE)
- Shell: Zinc Diecast (ZnAl4Cu1)
- Strain Relief: Polyketon (PK)
- Sleeve: Polyamide (PA6, GF15%)
- UV Resistance: F2 certified
- Flammability: UL94 V0
- Halogen-Free: Yes

Further Product Information Below

Neutrik NE8MXR-B-TOP Manual (PDF)

Neutrik NE8MXR-B-TOP Data Sheet (PDF)
