Nexo NXAMP4X1MK2 Network Powered Digital TD Controller. 4x1300 W. Multi Voltage

Rated at 4 X 1300 Watts, the NXAMP4X1MK2 combines advanced signal processing with four state-of-the-art Class D amplifiers to create a flexible, light-weight powering and control solution for NEXO loudspeaker systems.

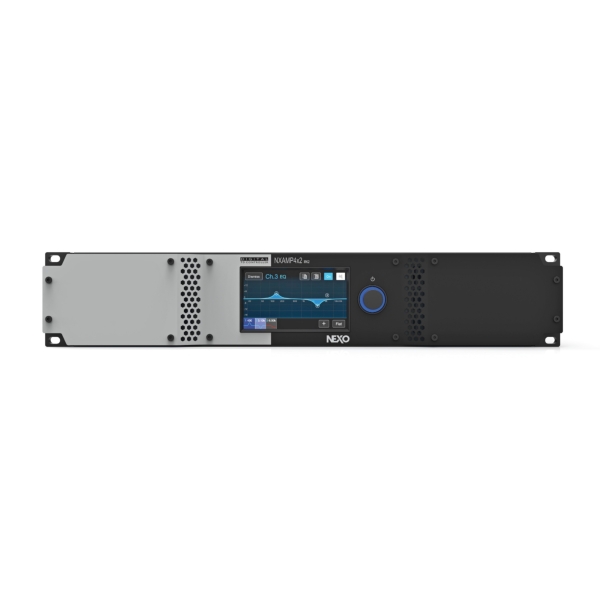

Ideal for use in fixed installations and touring, these powered controllers are easy to set up and quick to deploy, with all essential parameters readily accessible via a large colour touch-screen on the front panel and a comprehensive range of control and networking facilities on the rear panel.

Most importantly, the new NXAMPMK2 achieves a whole new level of sound quality, partnering with NEXO speakers to deliver a whole new level of audience experience.

The NEXO NXAMPMK2 ultra-low distortion Class D amplifiers combine 32-bit/96KHz converters and 64-bit signal processing to deliver significant advances in sound quality over the already highly regarded previous generation of NXAMPs. Bass is solid and high-end definition is particularly impressive in a sonic performance that is both articulate and rich with detail. Even at low volumes, the sound is noticeably transparent and pure. The amplifiers integrate three new multi core DSPs providing a future-proofed hardware platform, equipped to host new algorithms and run next-generation firmware updates for years to come.

With a mains voltage range of 100 to 240 Volts it means the amplifiers can be used anywhere in the world and run on all types of power generators. Robust power supplies use PFC (Power Factor Correction) technology to ensure maximum power conversion efficiency and that the current drawn is smoothed and free of spikes to limit the stress on the mains network at all times. A flexible audio input system encompasses four, high end analogue inputs using cascaded converters for low output noise. Four digital inputs are also available through the rear panel expansion card slot offering optional AES/EBU, EtherSound, Dante or AES67 inputs, all with automatic analogue fall-back. A native dual Ethernet card facilitates remote control and daisy-chaining of amplifiers, and seamless integration with Nexos NeMo amplifier management software. In addition to the expansion card slot, other rear panel connectivity includes RS232 serial and GPIO ports along with Speakon outputs for each of the four channels. Occupying only 2U of rack space, the NXAMP4X1MK2 weighs in at just 15.7kg.

Features

NEXO and Yamaha collaborate to create the perfect, light weight power and control solution for NEXO loudspeaker systems
Achieves significant advances in sound quality over previous generation NXAMPs
4 x ultra-low distortion Class D amplifiers
4 x 1300 Watts
All essential parameters accessible via a large colour touchscreen on the front panel
Universal 100 - 240 mains voltage range
Uses PFC (Power Factor Correction) technology
Remote control card fitted as standard
Optional Dante, EtherSound and AES network cards available

Specifications

Power Specifications
Number of channels 4 x amplifier channels, 2 by 2 bridgeable
Max output voltage (no load) 4x 105 Volts
Max output power (4 channels mode / 8 Ohms load per channel) 4x 600 Watts
Max output power (4 channels mode / 4 Ohms load per channel) 4x 900 Watts
Max output power (4 channels mode / 2 Ohms load per channel) 4x 1300 Watts
Max output power (2 channels mode / 8 Ohms load per channel) 2x 1800 Watts
Max output power (2 channels mode / 4 Ohms load per channel) 2x 2600 Watts
Power consumption (Standby) 10 Watts
Power consumption (Idle) 200 Watts

Input to Power Out
Frequency response +/- 1 dB from 10 Hz to 20 KHz
Input Impedance / Input Sensitivity 20 K Ohms / 13 dBu
Dynamic range / TDH + N 110 dB unweighted / typical 0.01 % on a flat setup
Latency 550 s on a flat setup
Audio AD and DA converters 32-bits @ 96 KHz
Processing 3x multicore 64-bits processing DSPs

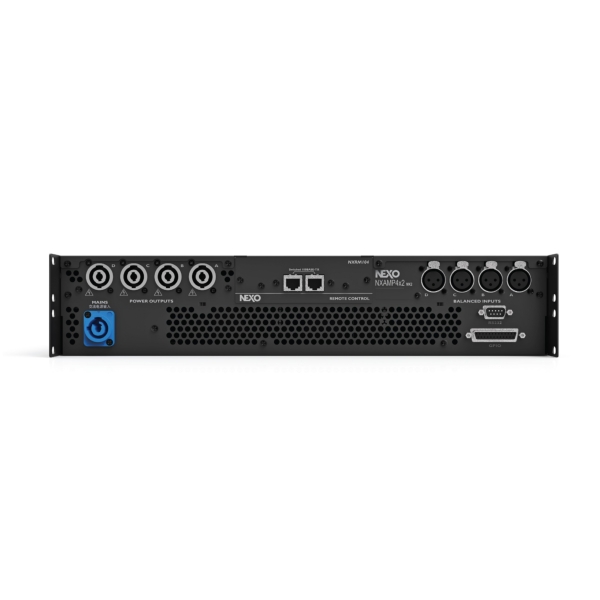

Back Panel
Analogue audio inputs 4x balanced analogue inputs on XLR3
Power outputs 4x Neutrik Speakon NL-4 outputs
RS232 port 1x DB-9 connector dedicated for DPU connection
GPIO port 1x DB-25 connector with 5x Inputs and 8x Outputs for DMU connection
Expansion slot For networking and digital audio cards, 4x digital audio inputs and remote control
Mains sockets 1x Neutrik Powercon NAC3 (1x 20 A)

User Interface and Controls
Front panel buttons and knobs Rotary encoder with push and backlight, tactile screen
Display 4.3 inches diagonal colour display, WQVGA, 480 x 272

Mains Requirements
Mains voltage Universal power supply with active PFC 100-240 Volts (50/60 Hz)
Power consumption 1/4 max 2 Ohms 1900 Watts

Dimensions and Certifications
Dimensions 2U 19" rack, 502mm / 20" depth, 15.7 kg / 33.1lbs weight
Electrical safety certification cULus, CB (CE), CCC, PSE, KC
EMC certification CE, FCC
Green status Compliant with ROHS directive
