Nexo PS10 Replacement Parts

Nexo PS10 Spare Parts. Full bill of materials (B.O.M) showing exploded view of speaker assembly broken down into its individual component parts. Each part is numbered numerically but also with its NEXO part number.

Nexo PS10 Replacement Parts

Nexo PS10 Replacement Parts - Below you will find each part listed separately with a drawing reference number that coincides with the exploded drawing.

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Nexo PS10 Replacement Parts

Nexo PS10 Replacement Parts

1. Nexo 05EBPS10 PS10 Empty Box for Nexo PS10

2. Nexo 05MSAF2311 PS10 Internal Acoustic Foam for Nexo PS10

3. Nexo 05AP74511 Wood Dowel M5 74-5-11 for Nexo PS10

4. Nexo 05AIMENT1 Magnet JS 6 Black for Nexo PS10

5. Nexo 05APEVPS10 PS10 Port for Nexo PS10

6. Nexo 05CPBHTS2 Wood Insert BHTS-2-01 for Nexo PS10

7. Nexo 05VXTCX610N Black Torx Cylindric Flat Screw 6x10 for Nexo PS10

8. Nexo 05VXTCFX825N Screw Torx Flat Head Black 8 x 25 for Nexo PS10

9. Nexo 05VGRAF8 Nut Graf 8mm for Nexo PS10

10b. Nexo 05HPB10-8 Bass Speaker 10-Inch for Nexo PS10 Since s/n:21284 for Nexo PS10

11. Nexo 05N1068R/K Recone Kit 10-Inch for Nexo PS10 + Ferro Fluid for Nexo PS10

11b. Nexo 05HPB10-8R/K Recone Kit 10-Inch for Nexo PS10 + Ferro Fluid Nexo For HPB10-8 for Nexo PS10

12. Nexo 05VXTCX525N Black Torx Cylindric Screw 5 x 25 for Nexo PS10

13. Nexo 05JNEOHPBPS10 Gasket Bass Speaker PS10 for Nexo PS10

14. Nexo 05PAVPS10 Horn for Nexo PS10

15. Nexo 05JNEOHMPS10V2 Horn Gasket for Nexo PS10

16. Nexo 05VXTCX525N Black Torx Cylindric Screw 5 x 25 for Nexo PS10

17. Nexo 05VRX516N Black Washer 5 x 16 for Nexo PS10

18. Nexo 05NH45B-8 Driver 1-Inch DE45 PS10 for Nexo PS10

19. Nexo 05NH45R/K DE45 Diaphragm for Nexo PS10

20. Nexo 05PS8JPPI Foam Gasket 3 Holes for Nexo PS10

21. Nexo 05JCALDE45 Paperboard Fix for DE45 B&C for Nexo PS10

22. Nexo 05PS.10UA Complete Grille PS10 for Nexo PS10

23. Nexo 05MBULPEPS10 Foam Front Grille for Nexo PS10

24. Nexo 05LOGPS10 PS10 Logo for Nexo PS10

25. Nexo 05LOGNEXO2 Nexo Logo Version 2 (Plastic) for Nexo PS10

26. Nexo 05DRISSAC Steel Safety PS Cabs-Grille to Cabinet for Nexo PS10

27. Nexo 05VXTCX525N Screw CHC Inox Black 5 x 25 for Nexo PS10

28. Nexo 05VRA510ZN Black Washer 5 x 10 for Nexo PS10

29. Nexo 05PS.10FPC Passive Filter Complete for Nexo PS10

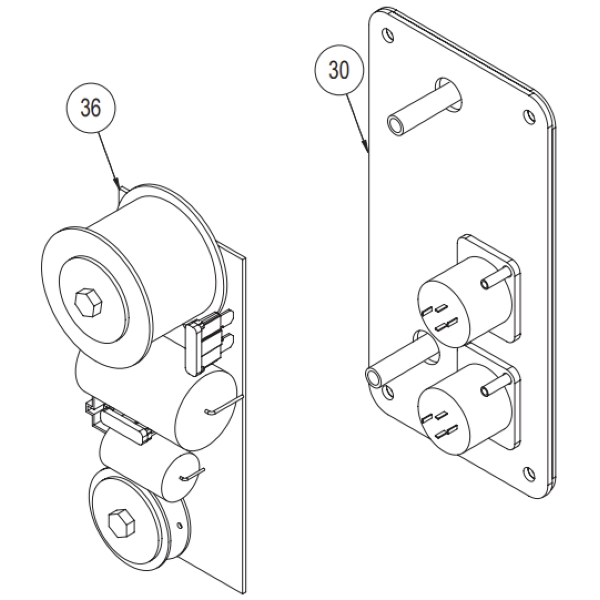

30. Nexo 05PS.10FPA Connection Plate with Artwork for Nexo PS10

31. Nexo 05JNEOHMPS10V2 Gasket CNX for Nexo PS10

32. Nexo 05CNXNL4MDV Speakon NL4MDV for Nexo PS10

33. Nexo 05VRIF3.216N Rivet Aluminium Black for Nexo PS10

34. Nexo 05VXCHB416N Black Torx Button Head Screw 4 x 16 for Nexo PS10

35. Nexo 05VGRAF4 Graf Nut 4mm for Nexo PS10

37. Nexo 05C1225621-164/001 Connector Male Wago 721-164/001-000 for Nexo PS10

38. Nexo 05FCNP2.7 Capacitor 2.7uF MKP PB 400 Vdc 5% for Nexo PS10

39. Nexo 05FCNP15 Capacitor 15uF MKP PB 400 Vdc 5% for Nexo PS10

40. Nexo 05FS300H0.9 Self 0.9mH 300gr Carcassr R21 for Nexo PS10

41. Nexo 05F530H0.54 Self 0.54mH 30g 36x22 for Nexo PS10

42. Nexo 05FFAUTO10 Auto Fuse 10A for Nexo PS10

43. Nexo 05FFAUTO3 Auto Fuse 3A for Nexo PS10

44. Nexo 05VLTH525 Brass Screw 5 x 25 for Nexo PS10

45. Nexo 05VLTH550 Brass Screw 5 x 50 for Nexo PS10

46. Nexo 05VRA510ZN Washer 5 x 10 Treated Black for Nexo PS10

47. Nexo 05VRA630Z Plain Washer Za 6 x 30 for Nexo PS10

48. Nexo 05C1225621-104026 Connector Female Wago 721-104/026-000 for Nexo PS10
