Nicolaudie eNODE-4 ArtNet Node

Name: Nicolaudie eNODE-4 ArtNet Node
Brand: Nicolaudie
Price: 326.26 GBP
Availability: InStock

Price Each £271.88 (£326.26 Including VAT at 20%)

REF: JP115201

Quantity:

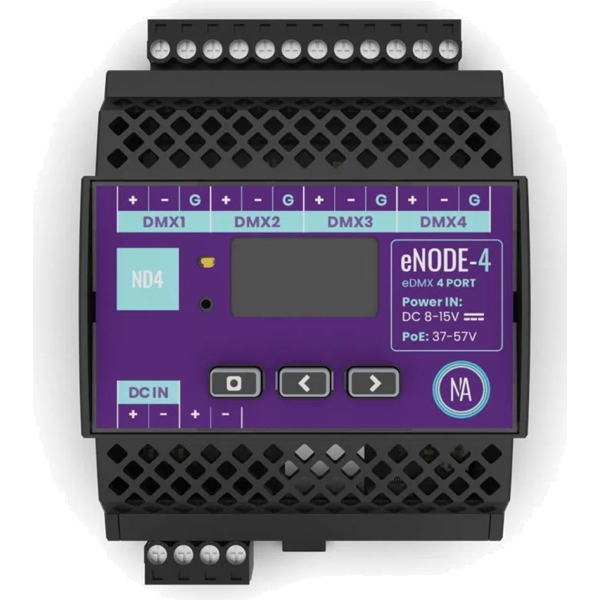

Nicolaudie eNODE-4 ArtNet Node

The Nicolaudie eNODE-4 ArtNet Node is designed to streamline your lighting control installations and features 4 DMX outputs and PoE (Power over Ethernet) in a compact, DIN-rail form factor. Once configured through the ESA Pro 2 software, eNODE-4 integrates with the DINA-DR1 and DINA-DR1 LITE, allowing you to extend the number of DMX outputs through sACN.

Click Here for Printer Friendly Version

Nicolaudie eNODE-4 ArtNet Node Features

- Converts eDMX to DMX
- Outputs up to 4 DMX universes
- Ethernet (PoE) connectivity

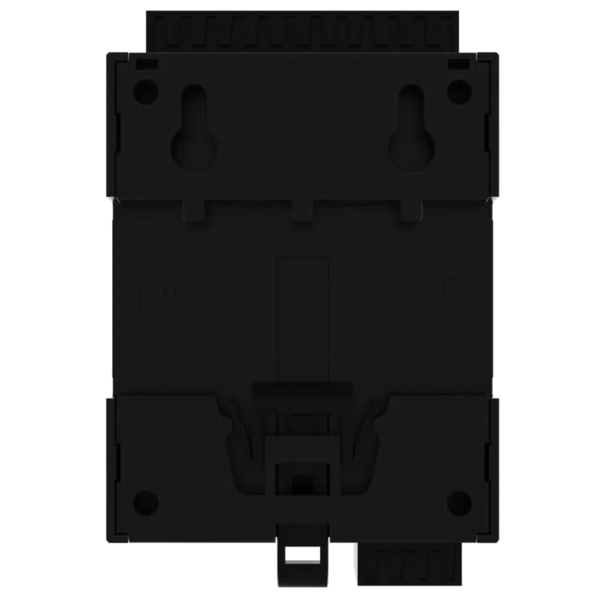

- DIN-rail form factor
- On-screen device status
- Configure with Hardware Manager and ESA Pro 2
- Compatible with DINA-DR1 and DINA-DR1 LITE
- Up to 50 eNODE-4 on the same network

Nicolaudie eNODE-4 ArtNet Node Specifications

- Input Power: PoE / 8-15V DC / USB C
- Output Protocol: DMX
- Input Protocol: sACN
- Programmability: PC, Mac

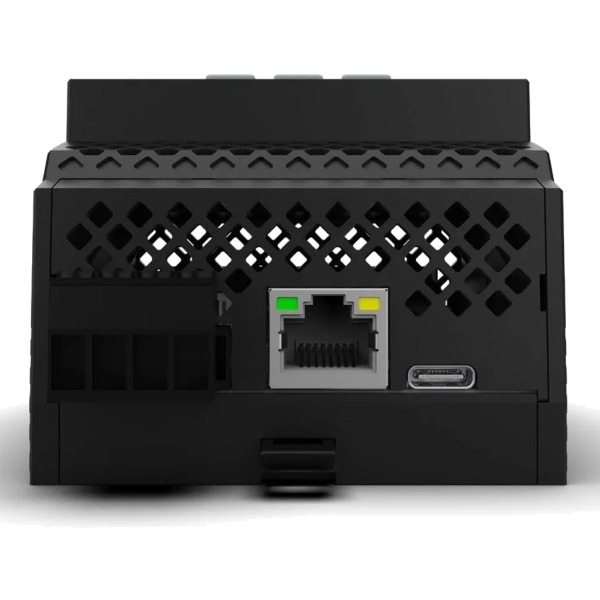

- Connections: USB C / Ethernet / PoE IEEE 802.3 at / af / 1 DC power input
- Environment: 0°C to 50°C
- Dimensions: 120 x 80 x 70 mm
- Weight: 150 g
- Standards: CE, FCC, RoHS

Further Product Information Below

Nicolaudie eNODE-4 Data Sheet (PDF)
