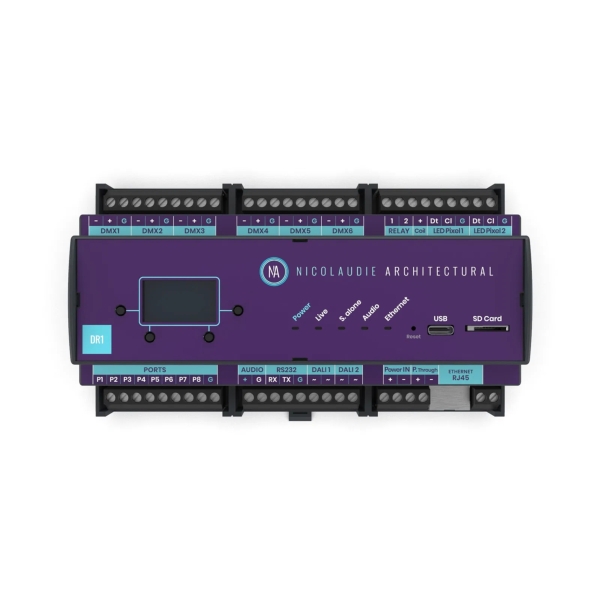

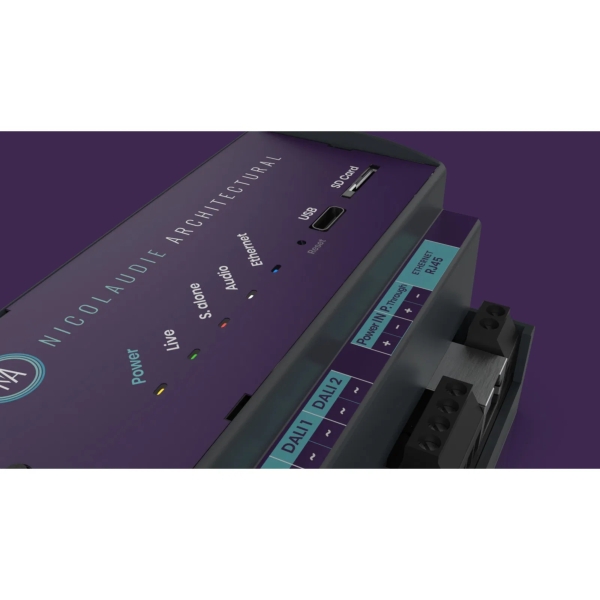

Nicolaudie DINA-DR1-LITE DIN Rail Lighting Controller - 2 Universe

Nicolaudie DINA-DR1-LITE DIN Rail Lighting Controller Features

- 2 year warranty
- DMX512 / eDMX / LED Pixel Stand Alone controller
- 2 x Universes (1024 channels)
- Output Universes via DMX512 (up to 2 universes) & Artnet/sACN (up to 12 universes with SUT universe upgrade)
- 2 x DALI buses (single-master)*
- SUT Technology allows the device to be upgraded with more universes & used with other Nicolaudie Group software
- USB & Ethernet connectivity
- Stand Alone mode with 2000 scenes & 20 zones
- 16MB flash memory & microSD slot
- 8 dry contact trigger ports
- RDM compatible
- Windows/Mac software for programming
- iPhone/iPad/Android/Mac & Windows apps for remote control
- Compatible with NATouch-1 wall controller
- Control 2 external relays
- Nicolaudie Cloud*: Remote control and management via internet connection (subscription required)
- Audio triggering / sound-to-light*
- RS232 protocol scene control*
- Coming soon: Direct support for LED Pixel Tape
- *Optional features via license upgrade

Nicolaudie DINA-DR1-LITE DIN Rail Lighting Controller Specifications

- Input Power: 12V DC (8-15V range)
- Output Protocol: 6 x DMX512, DALI-2, eDMX, LED Pixel (SPI x 2)
- Programmability: PC, Mac, Android, iOS
- Connections: USB-C, Ethernet
- Screw terminals for:
  - 6 DMX/RDM Universes
  - LED Pixel (coming)
  - 2 DALI loops
  - 8 Contact ports
  - Relay
  - 12V power-in & pass-through
  - RS232 scene trigger
  - Audio in
- Battery holder: LIR2032 3.6V
- microSD slot
- TCP Connections: 10 + 1 cloud
- Memory: 16MB flash, SD card (max 32GB, FAT32)
- Temperature: 0 to +50°C
- Buttons: 2 scene, 2 page, 1 reset
- OS Requirements: Mac OSX 10.13+, Windows 10/11
- Dimensions (H x W x D): 62 x 160 x 91mm
- Weight: 0.32kg

Further Product Information Below

Nicolaudie DINA-DR1-LITE Data Sheet (PDF)
