Nicolaudie DINA-SR1 DMX Controller - 6 Universe

Name: Nicolaudie DINA-SR1 DMX Controller - 6 Universe
Brand: Nicolaudie
Price: 2580.86 GBP
Availability: InStock

Price Each £2,150.72 (£2,580.86 Including VAT at 20%)

REF: JP114685

Quantity:

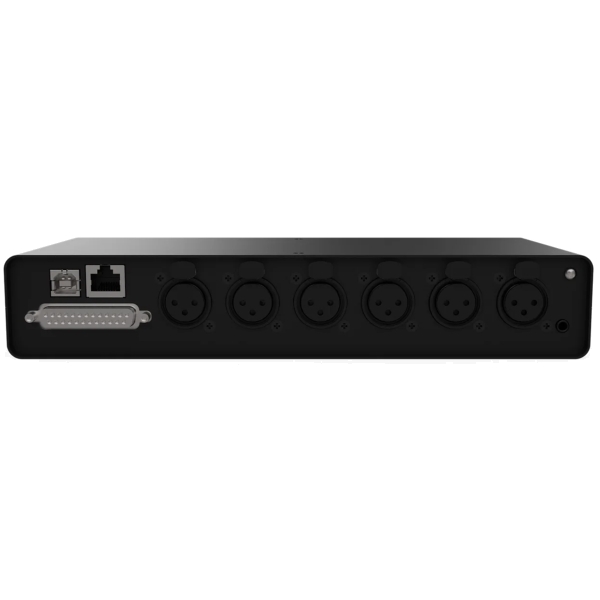

Nicolaudie DINA-SR1 DMX Controller - 6 Universe

The Nicolaudie DINA-SR1 DMX Controller offers the same possibilities in a different housing format. When the DR1 has been designed for DIN rail mounting the SR1 comes in a 19-inch rack format. The DINA-SR1 offers the same features as the DINA-DR1 (3072 channels expandable to 6144 with eDMX, DALI, LED pixel, Audio, TCP, ports...) but with a strong metal housing. This version has been specifically designed for 19-inch rack installations and can easily be integrated with other systems: AV, home automation... The use of standard connectors like XLR for DMX or mini-jack 3.5mm for Audio offers a perfect compatibility with AV installations.

Click Here for Printer Friendly Version

Nicolaudie DINA-SR1 DMX Controller Features

- 2 year warranty
- DMX512 / eDMX / LED Pixel Stand Alone controller
- 6 x Universes (3072 channels)
- Output Universes via DMX512 (up to 6 universes) & Artnet/sACN (up to 12 universes with SUT universe upgrade)
- 2 x DALI buses (single-master)
- SUT Technology allows the device to be upgraded with more universes & used with other Nicolaudie Group software
- USB & Ethernet connectivity
- Stand Alone mode with 2000 scenes & 20 zones
- 16MB flash memory & microSD slot
- 8 dry contact trigger ports
- RDM compatible
- Windows/Mac software for programming
- iPhone/iPad/Android/Mac & Windows apps for remote control
- Compatible with NATOUCH-4 and NATOUCH-8 wall controllers
- Control 2 external relays
- Nicolaudie Cloud: Remote control and management via internet connection (subscription required)
- Audio triggering / sound-to-light
- RS232 protocol scene control

Nicolaudie DINA-SR1 DMX Controller Specifications

- Input Power: 5V USB-C / USB-B
- Output Protocol: 6 x DMX512, DALI-2, eDMX, LED Pixel (SPI x 2)
- Programmability: PC, Mac, Android, iOS
- Connections: USB-C, USB-B, RJ45 Ethernet, 6 x XLR-3 DMX / RDM
- Extension sockets for: 2 x LED Pixel (coming soon), 2 DALI loops, 8 Contact ports, 2 x Relay, RS232 scene trigger, Audio in
- Battery holder: LIR2032 3.6V
- SD slot
- TCP Connections: 10 + 1 cloud
- Memory: 16MB flash, SD Card (max 32GB, FAT32)
- Temperature: 0 to +50°C
- Buttons: 2 scene, 2 page, 1 reset
- OS Requirements: Mac OSX 10.13+, Windows 10/11
- Dimensions (H x W x D): 44 x 240 x 112 mm (excluding rack ears)
- Weight: 0.966 kg
