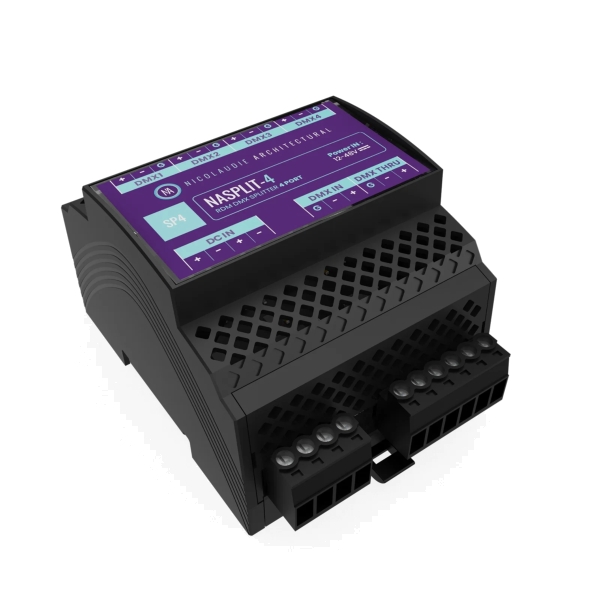

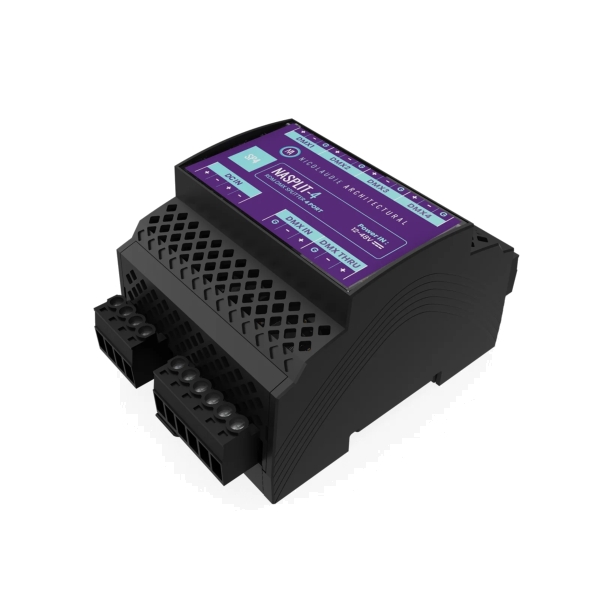

Nicolaudie NASPLIT-4 Din Rail DMX/RDM Splitter

Name: Nicolaudie NASPLIT-4 Din Rail DMX/RDM Splitter
Brand: Nicolaudie
Price: 184.06 GBP
Availability: InStock

Price Each £153.38 (£184.06 Including VAT at 20%)

REF: JP114686

Quantity:

Nicolaudie NASPLIT-4 Din Rail DMX/RDM Splitter

The Nicolaudie NASPLIT-4 Din Rail DMX/RDM Splitter is recommended for lighting control installations. They make the wiring a lot easier by allowing several cables to run from the same output of the DMX controller. They also offer a protection of the DMX line by making each output/input connections fully isolated from each other as well as boosted outputs. Our NASPLIT-4 DMX is RDM compatible and therefore supports RDM configuration of your lighting fixtures. The 2025 update now offers detachable connectors for easier installation and service.

Click Here for Printer Friendly Version

Nicolaudie NASPLIT-4 Din Rail DMX/RDM Splitter Features

- DMX splitter for use with the Nicolaudie DINA range and other DIN RAIL DMX products
- 1 isolated input (via screw terminals)
- 4 isolated outputs (via screw terminals)
- 1 passive loop output (via screw terminals)
- RDM compatible

Nicolaudie NASPLIT-4 Din Rail DMX/RDM Splitter Specifications

- Input Power: 12-48V DC (via screw terminals)
- Dimensions (H x W x D): 62 x 70 x 91 mm
- Weight: 0.112 kg

Further Product Information Below

Nicolaudie NASPLIT-4 Data Sheet (PDF)
