NovaStar CVT10 Pro-M Multi Mode 10x Gigabit Ethernet to Fibre Converter - IP65

Name: NovaStar CVT10 Pro-M Multi Mode 10x Gigabit Ethernet to Fibre Converter - IP65
Brand: NovaStar
Price: 1851.85 GBP
Availability: InStock

Price Each £1,543.21 (£1,851.85 Including VAT at 20%)

REF: JP112538

Quantity:

NovaStar CVT10 Pro-M Multi Mode 10x Gigabit Ethernet to Fibre Converter - IP65

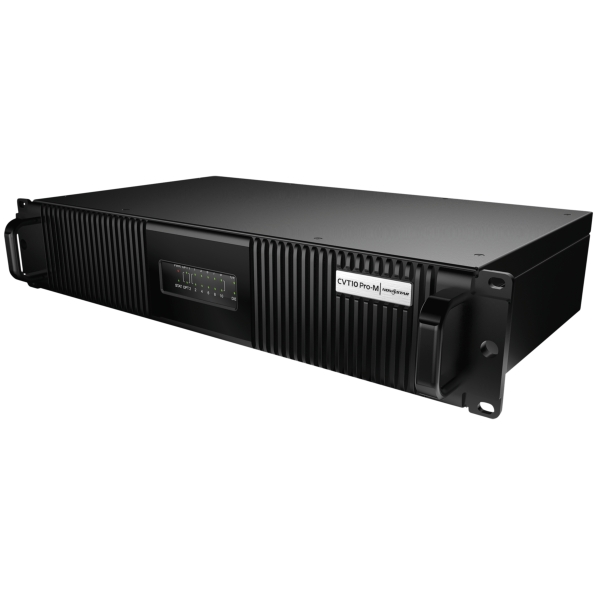

The NovaStar CVT10 Pro-M Multi Mode 10x Gigabit Ethernet to Fibre Converter is an IP65-rated, cost-effective long distance transmission solution for medium to large LED screen applications. It converts up to 10 network signal cables into a single fibre cable. Its design enables you to install it easily, securely and reliably in a 19-inch rack or case with a 2 unit height.

The CVT10 Pro-M can be connected directly to all processors which are equipped with a fibre optic output.

This LED screen fibre convertor can be used both as receiver or transmitter and can therefore also be used with other Novastar processors. You'll need two devices (TX/RX) when using a processor without fibre optic output.

The CVT10 Pro-M can be used for sending data of 10 individual 1 Gb signals to a distance of up to 300 m. It comes with a power cord and a USB cable.

Click Here for Printer Friendly Version

NovaStar CVT10 Pro-M Multi Mode 10x Gigabit Ethernet to Fibre Converter Features

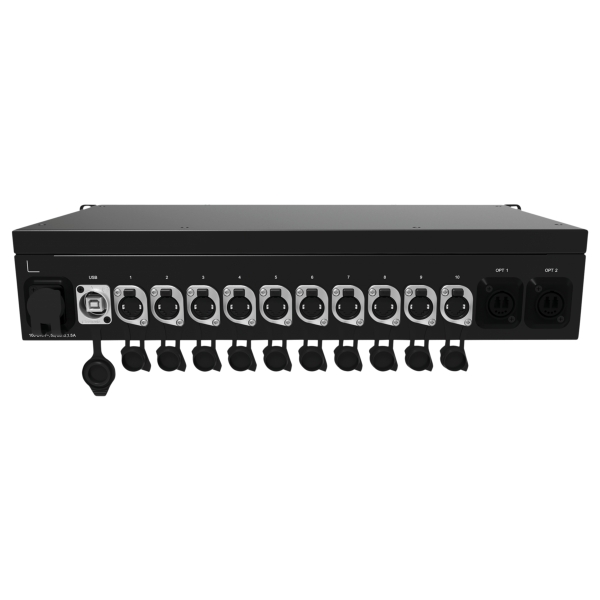

- 2x 10G optical output (main + backup)
- 10x 1G ethernet port
- IP65 rated for temporary outdoor use
- Multi-mode, transmission up to 300 m
- 19-inch / 2U design

NovaStar CVT10 Pro-M Multi Mode 10x Gigabit Ethernet to Fibre Converter Specifications

Outputs:
- Main Outputs: 10

Optical:
- Fibre Mode: Multi-mode
- Maximum Transmission Distance: 300 m (984.252 ft)
- Wavelength: 850 nm

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 22 W
- Power Connector In: powerCON TRUE1
- Data Connector In: USB
- Data Connector Out: etherCON, USB

Mechanical Specifications:
- Dimensions (W x H x D):
- With Handles: 483 x 88 x 280 mm
- Without Handles: 440 x 88 x 250 mm
- Weight: 5.9 kg
- Rack Units: 2 U
- IP Rating: IP65
- Colour: Black

Thermal Specifications:
- Maximum Ambient Temperature: 55 °C (131 °F)
- Minimum Ambient Temperature: -20 °C (-4 °F)
- Operating Humidity: 0-80 %rH

Further Product Information Below

NovaStar CVT10 Pro-M Manual (PDF)

Please Note: This Item is to Order from NovaStar and is NON CANCELLABLE. If you require a lead time please contact us first before you place your order.

NovaStar CVT10 Pro-M 10x Gigabit Ethernet to Fibre Converter Supplied With

- PowerCON TRUE1 cable
- USB Cable
