PCE 16A 230V 2P+E Panel Inlet (613-6x)

Price Each £8.78 (£10.54 Including VAT at 20%)

REF: JP112243

Quantity:

PCE 16A 230V 2P+E Panel Inlet (613-6x)

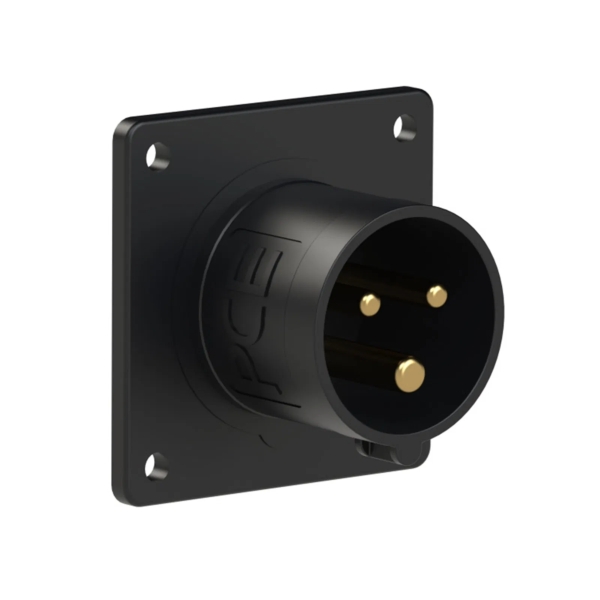

The PCE 16A 230V 2P+E Panel Inlet (613-6x) is a robust 16A 230V panel inlet with 2P+E configuration, housed in a black 70x70mm IP44-rated enclosure. Designed for secure and efficient power connections in industrial and commercial applications, it features durable PA6 housing, brass contacts, and screw terminal connection.

Click Here for Printer Friendly Version

PCE 16A 230V 2P+E Panel Inlet (613-6x) Features

- 70x70mm flanged CEE panel inlet in black
- 16A rated current, 2P+E (3 pole) configuration
- 200-250V~ / 50+60Hz voltage range
- IP44 protection against dust and water splashes
- Durable PA6 plastic housing with brass contacts
- Screw terminal connection system
- IEC 60309-2 and ETIM 9.0 EC001319 compliant

PCE 16A 230V 2P+E Panel Inlet (613-6x) Specifications

- Rated Current: 16A
- Rated Voltage: 230V (50+60Hz)
- Number of Poles: 3 (2P+PE)
- Clock Position: 6h
- Housing Material: PA6 (Plastic)
- Contact Material: Brass (CuZn)
- Connection Type: Screw Terminals
- Protection Class: IP44
- Dimensions (Flange): 70 x 70 mm
- Fixing Centres: 56 x 56 mm
- Ambient Temperature: -25°C to +40°C
- Wire Capacity (flex): 1-2.5 mm²
- Wire Capacity (solid): 1-4 mm²
- Stripping Length: 10-12 mm
- Contact Torque: 100 Ncm
- IK Code: IK10 (per IEC 62262)

Further Product Information Below

PCE 613-6x Data Sheet (PDF)

PCE 613-6 Manual (PDF)

PCE 613-6 Technical Drawing (PDF)
