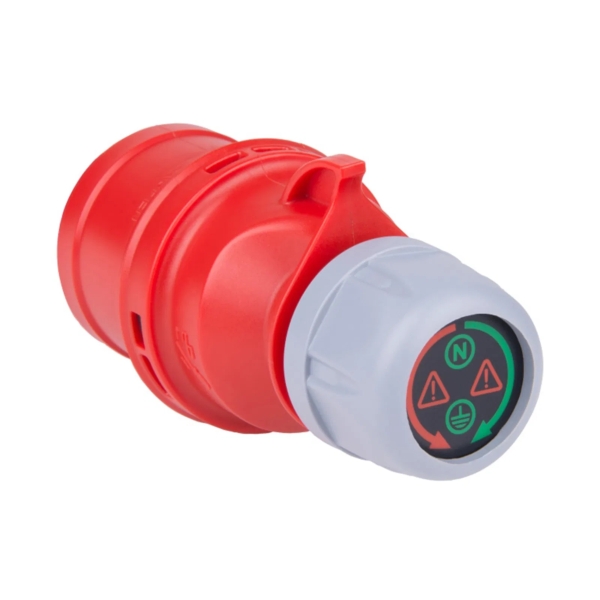

PCE 9434152 16A 415V 3P+E Diagnostic Plug

Price Each £74.74 (£89.69 Including VAT at 20%)

REF: JP112241

Quantity:

PCE 9434152 16A 415V 3P+E Diagnostic Plug

The PCE 9434152 16A 415V 3P+E Diagnostic Plug is a 16A 5-pin 6h 400V diagnostic plug featuring multiple built-in LED indicators for comprehensive testing of three-phase industrial power connections. Designed for professionals, it provides real-time diagnostics of rotating field direction, phase presence, neutral, and earth continuity. Lightweight and easy to use, this tool is essential for electricians working on CEE installations in workshops, construction sites, or industrial settings.

Click Here for Printer Friendly Version

PCE 9434152 16A 415V 3P+E Diagnostic Plug Features

- Rotary field direction indication
- Phase conductor presence check
- Neutral conductor continuity check
- Protective earth conductor continuity check
- Bright LED status display
- IP20 ingress protection
- Durable and lightweight design

PCE 9434152 16A 415V 3P+E Diagnostic Plug Specifications

- Model: 9434152
- Connection Type: CEE 5-pin, 16A, 6h
- Voltage Rating: 400V~
- Frequency: 50-60 Hz
- Ingress Protection: IP20
- Operating Temperature: ~ +25°C
- Standards: EN60309-2, EN61000-6-3, EN61000-6-2, EN55022
- Indication: LED
- Rotary Field Tester: Yes
- Weight: 0.161 kg

Further Product Information Below

PCE 9434152 Manual (PDF)

PCE 9434152 Data Sheet (PDF)

PCE 9434152 Quick Reference Guide (PDF)
