QSC CB10 Compact Battery-Powered Loudspeaker System - Black

QSC CB10 Compact Battery-Powered Loudspeaker System Features

Powerful, Compact 2-way System
- 440 watts of peak power (Class D)
- 10-inch woofer
- 1-inch HF compression driver
- 127 dB @ 1 m (peak SPL)

Integrated 3-Channel Mixer Wireless Remote Control
- Two combo XLR inputs with independent Factory Presets
- QSC Loudspeaker Control App (iOS & Android) for convenient system remote control

Room Delay
- 200 ms (max) of room delay

Simple to Use

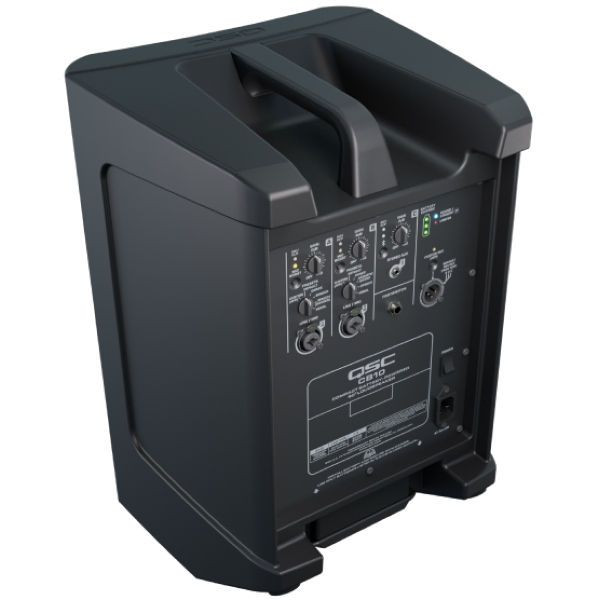

- Large carry handle on the enclosure top
- Lightweight and portable

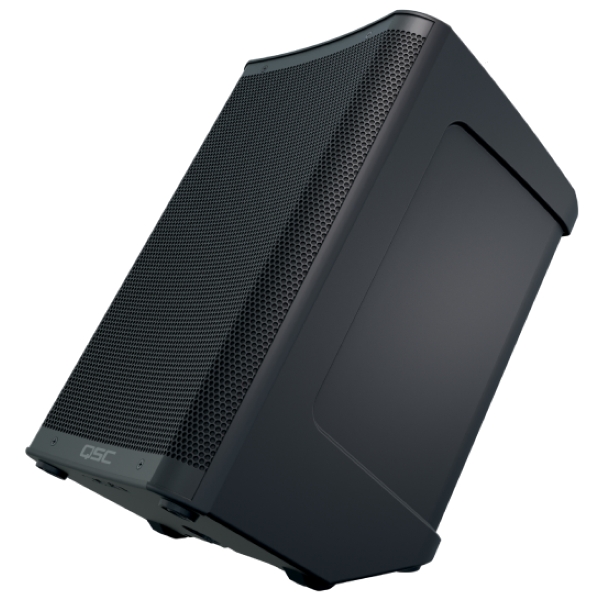

- 30 degrees tilt back (floor deployment)
- Integrated pole cup (stand deployment)

Bluetooth 5.1 Audio
- For control and audio with True Wireless Stereo (TWS) Bluetooth

Battery and AC Power
- Up to 12 hours of battery power (rechargeable in approx. 4 hrs)
- User-installable/removable battery pack
- AC power for unlimited steady operation

QSC CB10 Compact Battery-Powered Loudspeaker System Specifications

- Configuration: Two-way Rechargeable Loudspeaker System
- LF Transducer: 254 mm (10-inch), cone
- HF Transducer: 25.4 mm (1-inch), compression driver
- Frequency Response (-6 dB): 51 Hz - 18 kHz
- Frequency Range (-10 dB): 47 Hz - 20 kHz
- Nominal Coverage Angle: 90° Axisymetric
- Maximum Rated SPL1: 127 dB @ 1 m
- Amplification (peak): Class D, 440 W
- Cooling: Convection cooling

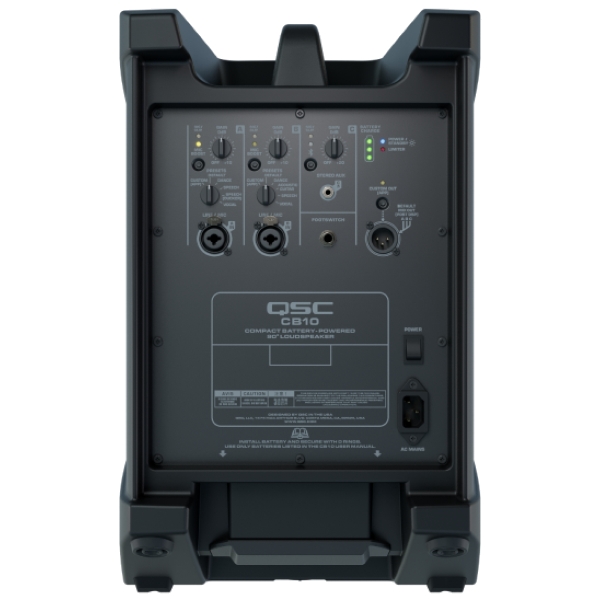

- Backpanel Controls:
  - 3x Rotary level potentiometers (Gain)
  - 2x MIC Boost Push-Switch
  - 2x 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls)
  - 1x Bluetooth Switch
  - 1x Output Select Switch
  - 1x AC Power Switch
- Loudspeaker Control App Functions:
  - Input Channels: Gain Control, Presets (Channels A and B), EQ
  - Reverb (Channels A and B )
  - Ducker (Channel A)
  - Contour Selection
  - Custom Output Routing
  - Footswitch Functionality: Channel Mute, FX Mute, or Channel Boost
  - Bluetooth Audio Configuration
  - Loudspeaker Firmware Updates
- Backpanel Indicators:
  - 3x Input Signal/Clip LEDs
  - 2x MIC selected LEDs
  - 3x Battery Charge LEDs
  - 1x Limiter Active LED
  - 1x Bluetooth LED
  - 1x Output Select LED
  - 1x Power/Standby LED
- Connectors:
  - 2x locking XLR/F ¼-inch combo (Line Input and Mic/Line Input)
  - 1x 3.5 mm TRS (Stereo Input)
  - 1x 6.3 mm TS (Footswitch)
  - 1x XLR/M (Mix Output)
  - 1x locking IEC Power Connector
- DC Power (Battery): Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module (1x unit included with CB10)
- Battery life: up to 12 hours / Battery charging time: approx. 4 hours
- AC Power Input: Universal Power Supply: 100-240 VAC, 50/60 Hz
- AC Power Consumption2: 100 VAC, 1A / 120 VAC, 0.9 / 240 VAC, 0.5A
- Enclosure Material: Polypropylene
- Color: Black (RAL 9011)
- Grille: Powder-coated steel with internal lining (18 Gauge)
- Loudspeaker Dimensions (H x W x D): 465 x 313 x 287 mm
- Carton Dimensions (H x W x D): 559 x 406 x 381 mm
- Net Weight: 12.2 kg
- Shipping Weight: 14.5 kg
- Battery Chemistry: Lithium Nickel Manganese Cobalt Oxide
- Regulatory: CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A

Further Product Information Below

QSC CB10 Manual (PDF)

QSC CB10 Data Sheet (PDF)

QSC CB10 Quick Start Guide (PDF)
