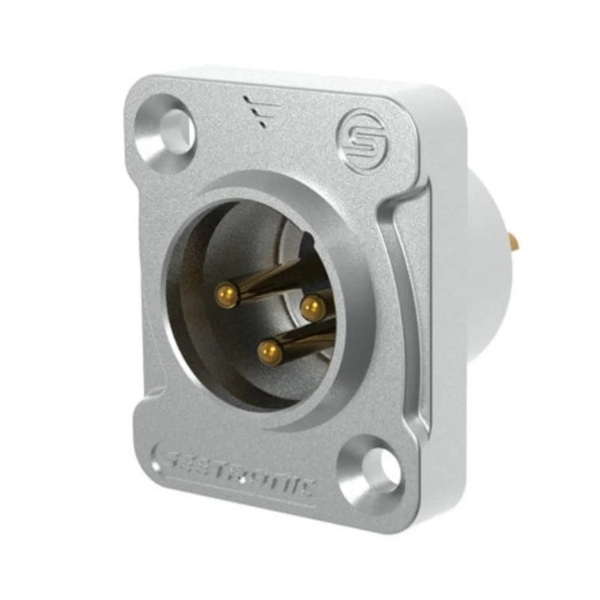

Seetronic J3F2C-W-67 IP67 3-Pin Male Chassis Connector

Seetronic J3F2C-W-67 Features

- IP67-rated for full protection against dust and water when mated or capped
- Durable zinc-alloy D-shell for front-panel mounting
- Gold-plated copper alloy contacts; ≤ 5 mΩ contact resistance
- Rated current: 16 A per contact; voltage: < 50 V
- Rear airtight sealing withstands 0.2 MPa pressure
- Mechanical life exceeds 1,000 mating cycles
- Operating temperature: -30 °C to +80 °C; UL94 HB flame rating
- Standards compliant: IEC 61076-2-103, IEC 68-2-20

Seetronic J3F2C-W-67 Specifications

- Connector Type: 3-pin male XLR chassis socket (panel-mount)
- Contact Resistance: ≤ 5 mΩ
- Capacitance: ≤ 4 pF
- Dielectric Strength: 1,500 V DC
- Insulation Resistance: > 10 GΩ
- Rated Current: 16 A per contact
- Rated Voltage: < 50 V
- Insertion/Withdrawal Force: ≤ 20 N
- Mechanical Durability: > 1,000 mating cycles
- Materials: Housing - zinc alloy (black), Contacts - gold-plated Cu alloy, Insert - PA
- Operating Temp: -30 °C to +80 °C
- Protection: IP67 (sealed when capped or mated)
- Certifications: UL94 HB, IEC 61076-2-103, IEC 68-2-20
