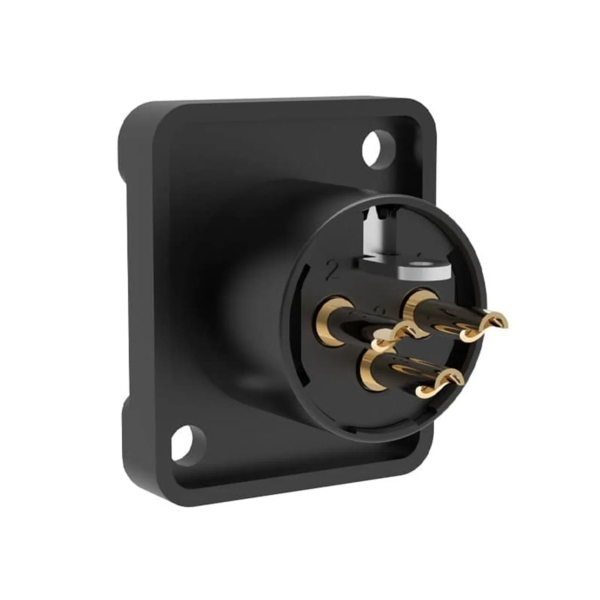

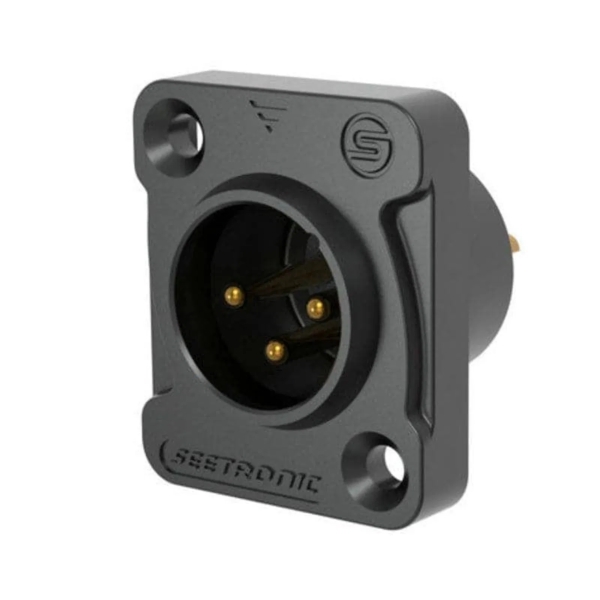

Seetronic J3F2C-W-B-67 IP67 3-Pin Male Chassis Connector - Black

Seetronic J3F2C-W-B-67 Features

- IP67-rated for complete protection from dust and water when mated or capped
- Black-plated zinc-alloy D-shell for front-panel mounting
- Gold-plated copper alloy contacts with ≤ 5 mΩ contact resistance
- Rated at 16 A per contact and < 50 V
- Rear air-sealed design withstands 0.2 MPa without cover
- Durability of over 1,000 mating cycles; ≤ 20 N insertion/withdrawal force
- Operating temperature range: -30 °C to +80 °C
- Flame-retardant housing (UL94 HB); compliant with IEC 61076-2-103 and IEC 68-2-20

Seetronic J3F2C-W-B-67 Specifications

- Connector Type: 3-pin male XLR chassis socket (panel-mount)
- Contact Resistance: ≤ 5 mΩ
- Capacitance: ≤ 4 pF
- Dielectric Strength: 1,500 V DC
- Insulation Resistance: > 10 GΩ
- Rated Current: 16 A per contact
- Rated Voltage: < 50 V
- Insertion/Withdrawal Force: ≤ 20 N
- Mechanical Life: > 1,000 mating cycles
- Materials: Housing - black-plated zinc alloy, Contacts - gold-plated Cu alloy, Insert - PA
- Operating Temp: -30 °C to +80 °C
- Protection: IP67 (sealed when capped or mated)
- Certifications: UL94 HB, IEC 61076-2-103, IEC 68-2-20
