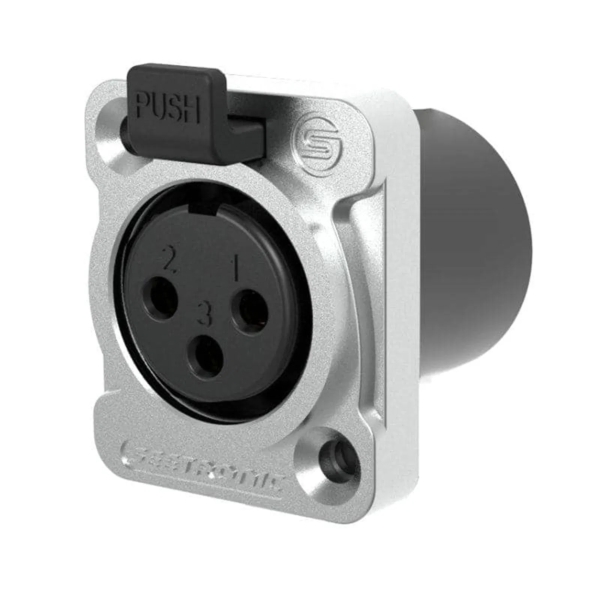

Seetronic K3F2C-W-67 3-Pin XLR Female Chassis Socket - Silver - IP67

Seetronic K3F2C-W-67 Features

- IP67-rated when used with matching plug/cap for dust and immersion protection
- Zinc-alloy body with sealed chassis design (0.2 MPa air-tight test)
- Gold-plated Cu-alloy contacts; contact resistance ≤ 5 mΩ
- Rated current per contact: 16 A; voltage < 50 V
- Durable mechanical life with over 1,000 mating cycles
- Operating temp: ?30 °C to +80 °C; UL94 HB flame-retardant housing
- Fully compliant with IEC 61076-2-103 and IEC 68-2-20 standards

Seetronic K3F2C-W-67 Specifications

- Connector Type: 3-pin female XLR chassis socket
- Contact Resistance: ≤ 5 mΩ
- Capacitance: ≤ 4 pF
- Dielectric Strength: 1,500 V DC
- Insulation Resistance: > 10 GΩ
- Rated Current: 16 A per contact
- Rated Voltage: < 50 V
- Insertion/Withdrawal Force: ≤ 20 N
- Mechanical Life: > 1,000 mating cycles
- Materials: Housing - zinc alloy (black), Contacts - gold-plated Cu-alloy, Insert - PA
- Operating Temperature: -30 °C to +80 °C
- Protection Class: IP67 (front and rear sealed)
- Certifications: UL94 HB, IEC 61076-2-103, IEC 68-2-20

Further Product Information Below

Seetronic K3F2C W 67 Data Sheet (PDF)
