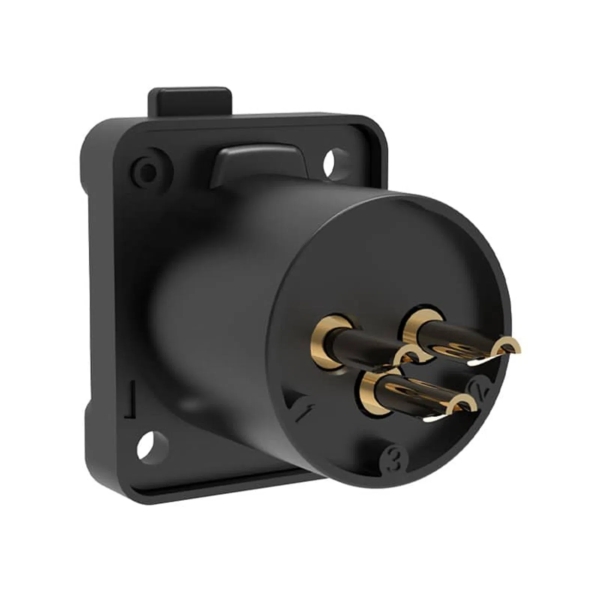

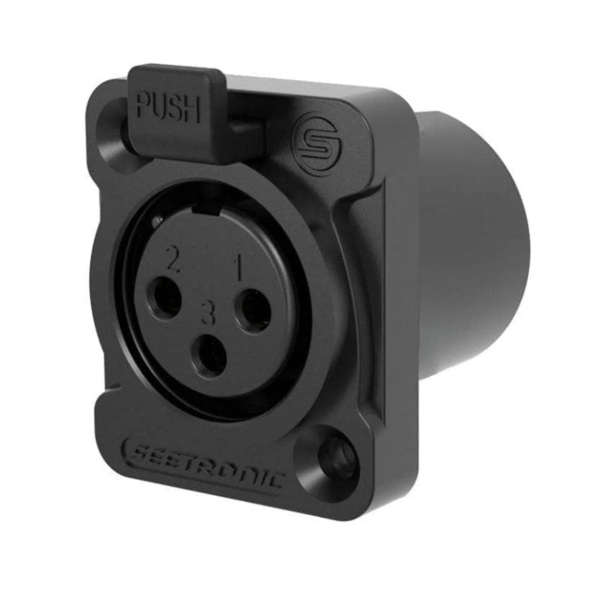

Seetronic K3F2C-W-B-67 3-Pin XLR Female Chassis Socket - Black, IP67

Seetronic K3F2C-W-B-67 Features

- IP67-rated when used with matching plug/cap for dust and immersion protection
- Black zinc-alloy body with sealed chassis design (0.2 MPa air-tight test)
- Gold-plated Cu-alloy contacts; contact resistance ≤ 5 mΩ
- Rated current per contact: 16 A; voltage < 50 V
- Durable mechanical life with over 1,000 mating cycles
- Operating temp: ?30 °C to +80 °C; UL94 HB flame-retardant housing
- Fully compliant with IEC 61076-2-103 and IEC 68-2-20 standards

Seetronic K3F2C-W-B-67 Specifications

- Connector Type: 3-pin female XLR chassis
- Contact Resistance: ≤ 5 mΩ; Capacitance: ≤ 4 pF
- Dielectric Strength: 1,500 V DC; Insulation Resistance: *gt; 10 GΩ
- Rated Current: 16 A; Rated Voltage: < 50 V
- Insertion Force: ≤ 20 N; Mechanical Durability: > 1,000 cycles
- Materials: Zinc-alloy shell, gold-plated contacts, PA insert
- Temperature: ?30 °C to +80 °C; Protection: IP67 sealed chassis
- Flame: UL94 HB; Standards: IEC 61076-2-103, IEC 68-2-20

Further Product Information Below

Seetronic K3F2C W B 67 Data Sheet (PDF)
