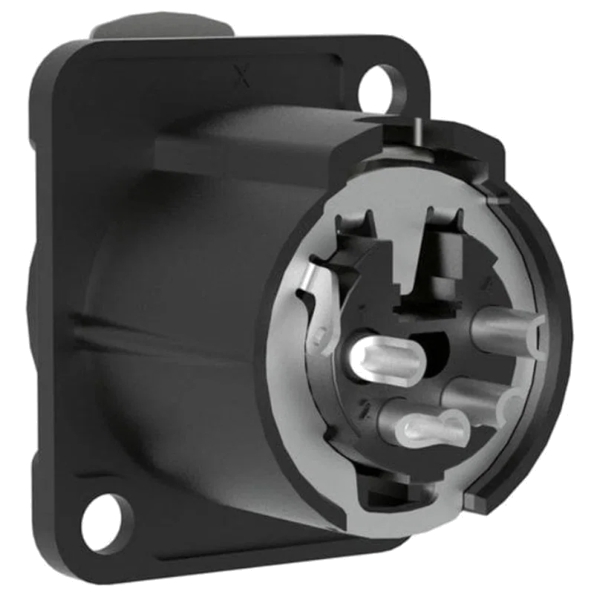

Seetronic MK4F2C-B 4-Pin XLR Female Chasis Socket - Black

Seetronic MK4F2C-B Features

- 4-pin XLR female chassis connector with zinc alloy die-casting shell, black plated shell and silver plated contacts
- D-shape metal shell with industry standard D-type installation dimensions provides installation compatibility
- Mountablefrom the front or rear of the panel
- Short axial size, space saving and light weight

Seetronic MK4F2C-B Specifications

Product Parameters:
- Connection Type: XLR
- Gender: Female

Electrical Parameters:
- Capacitance between contacts: ≤ 7pF
- Contact resistance: ≤ 5 m?
- Dielectric strength: 1.5 kV DC
- Insulation resistance: > 10 G? (initial)
- Rated current per contact: 10 A
- Rated voltage: < 50 V

Mechanical Parameters:
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Service life: > 1000 mating cycles
- Locking device: Latch lock
- Chassis shape: D

Material and Environmental Parameters:
- Housing: Zinc alloy
- Housing plating: Black plating
- Insert: PA
- Contacts: Cu alloy
- Contact plating: Ag
- Flame-retardant grade: UL 94-V0
- Temperature range: -30°C ~ +80°C
- Protection class: IP40
- Solderability: Complies with IEC 68-2-20

Standards and Certifications:
- Standards: IEC 61076-2-103
