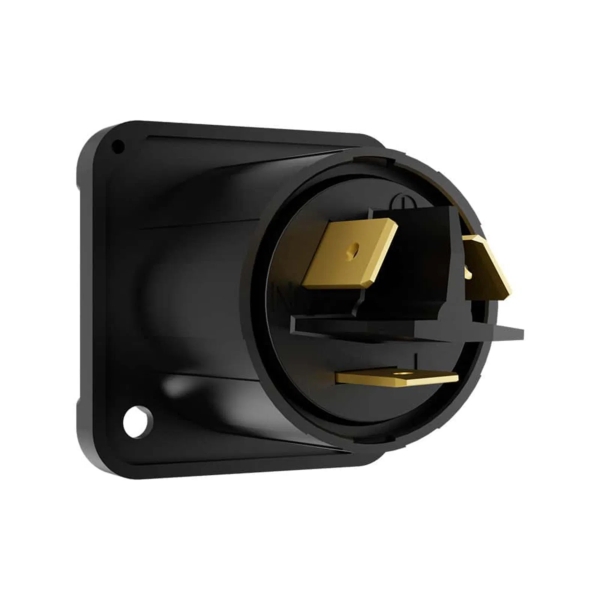

Seetronic SAC3FPX-67 PowerTwist TR1 IP67 Chassis Connector

Seetronic SAC3FPX-67 PowerTwist TR1 IP67 Chassis Connector Features

- Lockable 3-core female IP67 Chassis Connector (L, N, PE)
- Part of the PowerTwist TR1 IP67 series
- Waterproof and dust-tight with IP67 sealing (mated)
- Rated 16?A/250?V?AC (TÜV RH) and 20?A/300?V?AC (UL)
- Compatible with SAC3MX-67 and SAC3MPX-67 power plugs
- Durable polyamide body with locking latch
- Rear protective cap (CNAC-FPX-67) optional
- Certified to UL498, UL50E, IEC61984, GB/T 34989

Seetronic SAC3FPX-67 PowerTwist TR1 IP67 Chassis Connector Specifications

- Contacts: 2 + PE
- Rated Current/Voltage: 16?A/250?V?AC (TÜV RH); 20?A/300?V?AC (UL)
- Contact Resistance: ≤?5?mΩ
- Dielectric Strength: 4000?V?DC / 1600?V?AC (UL)
- Insulation Resistance: >?1000?MΩ
- Cable Termination: Screw terminals (2.5?mm², torque 0.5?Nm)
- Housing: PA (UL94?V0); Contacts: Gold-plated Cu alloy
- Protection Rating: IP67 (mated)
- Operating Temperature: ?30?°C to +80?°C
- Service Life: >?1000 mating cycles
- Certifications: UL498, UL50E (E356932); IEC61984; GB/T 34989; TÜV RH (R 50660463 0001); CQC (CQC23003410681)

Further Product Information Below

Seetronic SAC3FPX-67 Data Sheet (PDF)
