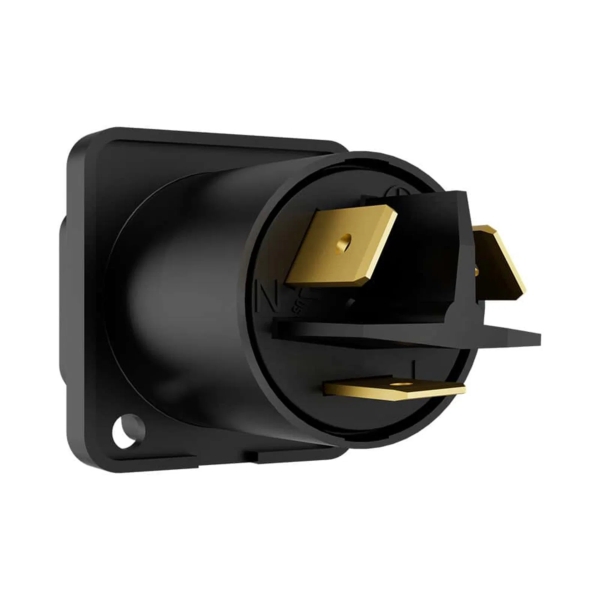

Seetronic SAC3FPX20-67 PowerTwist TR1 IP67 Chassis Connector

Seetronic SAC3FPX20-67 PowerTwist TR1 IP67 Chassis Connector Features

- Compact D-size PowerTwist TR1 female IP67 Chassis Connector
- Locking 3-core configuration (L, N, PE)
- IP67-rated when mated with plug and sealed with rubber cap
- Rated 16?A/250?V?AC (TÜV RH); 20?A/300?V?AC (UL)
- Mates with SAC3MX-67 male plug
- Supports soldering or push-fit 6.3?mm terminals (max 2.5?mm²)
- Rugged polyamide housing; gold-plated copper alloy contacts
- UL94-V0 flame-retardant materials
- Operating temperature: -30?°C to +80?°C

Seetronic SAC3FPX20-67 PowerTwist TR1 IP67 Chassis Connector Specifications

- Contacts: 2 + PE
- Rated Current/Voltage: 16?A/250?V?AC (TÜV RH); 20?A/300?V?AC (UL)
- Contact Resistance: ≤?5?mΩ
- Dielectric Strength: 4000?V?DC
- Insulation Resistance: >?1000?MΩ
- Terminals: Solder or push-fit 6.3?mm tabs; torque: 0.5?Nm
- Max Cable Size: 2.5?mm²
- Housing: PA (polyamide); Contacts: Au-plated copper alloy
- Flame Rating: UL94-V0
- Protection Class: IP67
- Operating Temperature: -30?°C to +80?°C
- Service Life: >?1000 mating cycles
- Certifications: UL498, UL50E (E356932), IEC61984, GB/T 34989

Further Product Information Below

Seetronic SAC3FPX20-67 Data Sheet (PDF)
