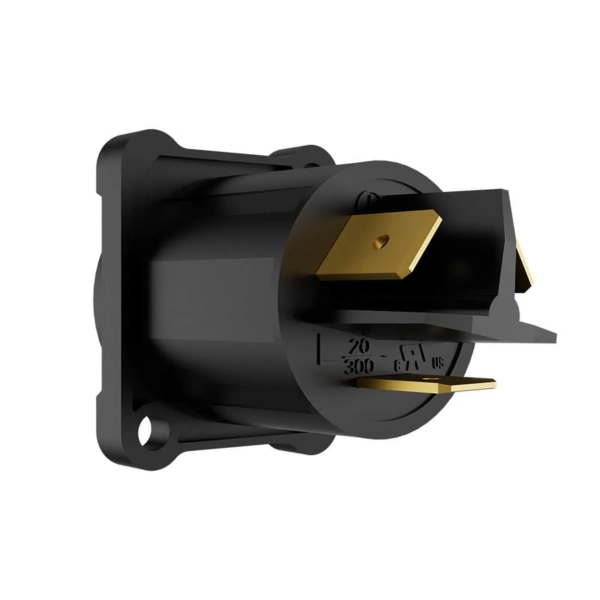

Seetronic SAC3MPX-67 PowerTwist TR1 IP67 Chassis Connector

Seetronic SAC3MPX-67 PowerTwist TR1 Features

- Male chassis connector from the PowerTwist TR1 IP67 series
- 3-core locking inlet (L, N, PE) with secure mating interface
- Designed for AC power-in connection
- Rated: 20 A/300 V AC (UL), 16 A/250 V AC (VDE)
- Compatible with SAC3FX-67 cable connector
- IP67-rated for harsh indoor/outdoor environments
- UL498, UL50E, IEC61984 and GB/T 34989 certified

Seetronic SAC3MPX-67 PowerTwist TR1 Specifications

- Type: Male chassis connector (panel mount)
- Series: PowerTwist TR1 IP67
- Contacts: 2 + PE
- Rated Current/Voltage: 20 A/300 V AC (UL); 16 A/250 V AC (VDE)
- Contact Resistance: &lr; 5 mΩ
- Dielectric Strength: 4000 V DC (1600 V AC/min)
- Insulation Resistance: > 1000 MΩ
- Mounting: Panel mount (front or rear)
- Housing: PA (UL94-V0); Contacts: Silver-plated Cu alloy
- Protection: IP67
- Operating Temp: ?30 °C to +80 °C
- Service Life: > 500 mating cycles
- Certifications: UL498, UL50E (E356932); IEC61984; GB/T 34989
