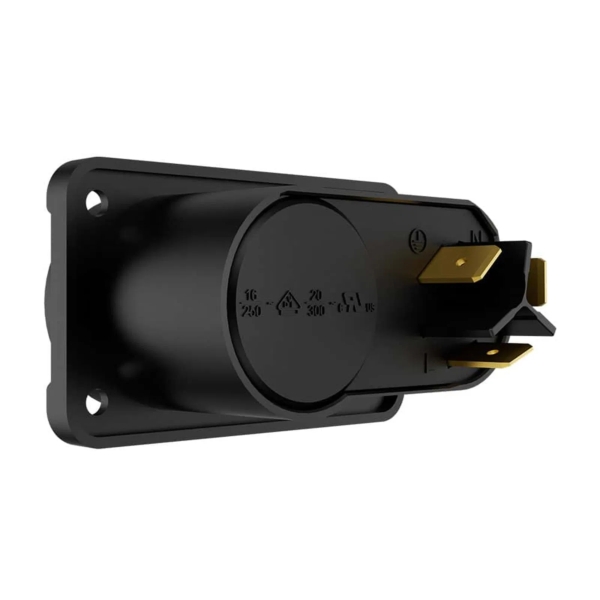

Seetronic SAC3PX-67 PowerTwist TR1 IP67 Chassis Connector

Seetronic SAC3PX-67 PowerTwist TR1 IP67 Chassis Connector Features

- Integrated male + female PowerTwist TR1 chassis connector
- Compact form factor for daisy-chained or pass-through power applications
- Rated 16 A/250 V AC (TÜV RH) and 20 A/300 V AC (UL)
- Gold-plated Cu alloy contacts for reliable conductivity
- Housing: Flame-retardant PA, UL94 V-0 rated
- IP65 panel rating; IP67 when mated with compatible plug
- Supports solder or push-fit terminals (6.3 mm tabs)
- Over 1,000 mating cycles; operating range: -30 °C to +80 °C
- Certified to UL498, UL50E, IEC61984, GB/T 34989, TUV RH, and CQC

Seetronic SAC3PX-67 PowerTwist TR1 IP67 Chassis Connector Specifications

- Contacts: 2 + PE
- Rated Current/Voltage: 16 A/250 V AC (TÜV RH); 20 A/300 V AC (UL)
- Contact Resistance: ≤ 5 mΩ
- Dielectric Strength: 4000 V DC
- Insulation Resistance: > 1000 MΩ
- Cable Termination: Solder or 6.3 mm push-fit tabs; max conductor size: 2.5 mm²; tightening torque: 0.5 Nm
- Housing Material: Polyamide (PA)
- Contacts: Gold-plated copper alloy
- Flame Rating: UL94 V-0
- Protection: IP65 (chassis); IP67 (when mated)
- Operating Temperature: -30 °C to +80 °C
- Service Life: > 1000 mating cycles
- Certifications: UL498, UL50E (E356932), IEC61984, GB/T 34989, TÜV RH (R 50660463 0001), CQC (CQC23003410681)
