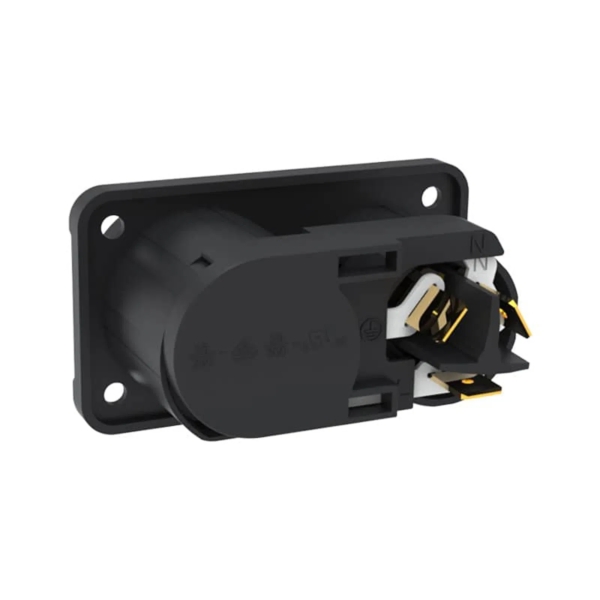

Seetronic SAC3PX PowerTwist TR1 IP65 Chassis Connector

Seetronic SAC3PX PowerTwist TR1 IP65 Chassis Connector Features

- Combined PowerTwist TR1 in/out connector (SAC3MPX + SAC3FPX)
- Lockable 3-core layout with line, neutral and earth (L, N, PE)
- Space-saving design for daisy-chained or pass-through applications
- Rated 16 A/250 V AC (TÜV RH), 20 A/300 V AC (UL)
- IP65 rated for panel sealing; IP67 for terminal interface (when mated)
- Compatible with up to 2.5 mm² (12 AWG) cable size
- Durable PA (polyamide) housing with gold-plated copper alloy contacts
- Flame-retardant to UL94 V-0
- Operating temperature range: -30 °C to +80 °C

Seetronic SAC3PX PowerTwist TR1 IP65 Chassis Connector Specifications

- Series: PowerTwist TR1
- Connection Type: Combined Power In and Power Out
- Contacts: 2 + PE
- Rated Current: 16 A (TÜV RH), 20 A (UL)
- Rated Voltage: 250 V AC (TÜV RH), 300 V AC (UL)
- Contact Resistance: ≤ 5 mΩ
- Insulation Resistance: > 1000 MΩ
- Dielectric Strength: 4000 V DC / 1600 V AC
- Service Life: > 1000 mating cycles
- Cable Termination: Up to 2.5 mm² (12 AWG)
- Housing: Polyamide (PA)
- Contacts: Gold-plated copper alloy
- Flame Retardancy: UL94 V-0
- Protection Rating: IP65 (panel); IP67 (mated terminals)
- Operating Temperature: -30 °C to +80 °C
- Certifications: UL498, UL50E (E356932); TUV RH (R50660463); CQC (CQC23003410681); IEC61984; GB/T 34989
