Seetronic SBB75DFGX-B BNC Chasis Connector - Black

Name: Seetronic SBB75DFGX-B BNC Chasis Connector - Black
Brand: Seetronic
Price: 8.29 GBP
Availability: InStock

Price Each £6.91 (£8.29 Including VAT at 20%)

REF: JP112385

Quantity:

Seetronic SBB75DFGX-B BNC Chasis Connector - Black

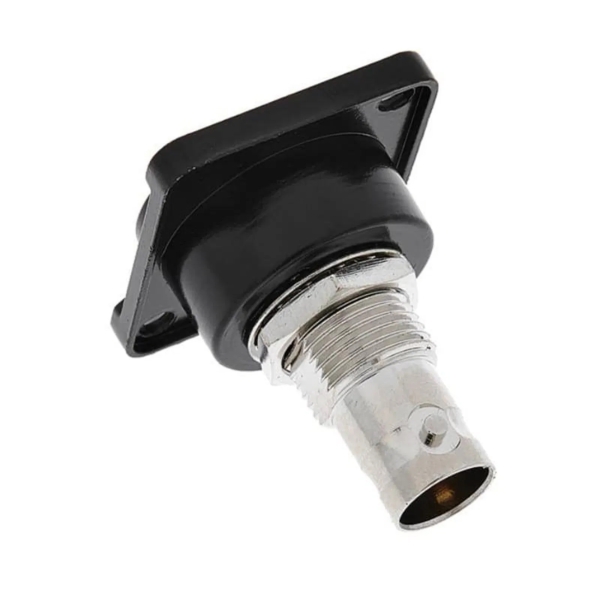

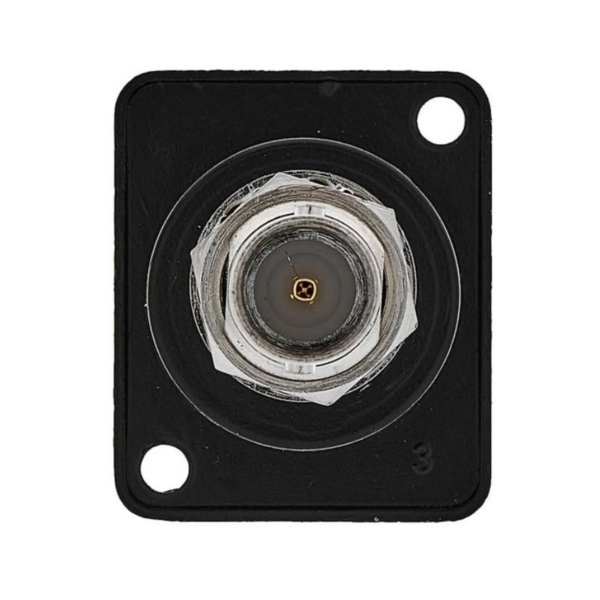

The Seetronic SBB75DFGX-B BNC Chasis Connector is a robust panel-mount BNC socket designed for UHD video signal transmission. Featuring a true 75?Ω impedance design, gold-plated contacts, low return loss performance, and a D-size black zinc-alloy body, this connector offers professional-grade reliability for 4K/8K video, SDI, AES/EBU, YUV, RGB, and composite signal environments.

Click Here for Printer Friendly Version

Seetronic SBB75DFGX-B BNC Chasis Connector Features

- True 75?Ω impedance with reduced return loss, ideal for UHD/SDI video signals
- Compact D-size flush-mount panel housing for robust integration
- Non-grounded version (alternative grounded model: SBB75DFGX)
- Nickel-plated zinc alloy body with black finish for a clean install
- Gold-plated copper alloy contacts for stable signal integrity
- Supports UHD, SDI, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV
- Rated for >1,000 mating cycles with ≤25N insertion/withdrawal
- Operating temperature range of -30?°C to +85?°C

Seetronic SBB75DFGX-B BNC Chasis Connector Specifications

- Connector Type: BNC female chassis mount
- Impedance: 75?Ω (true UHD design)
- Contact Resistance: ≤3?mΩ (inner), ≤2?mΩ (outer)
- Dielectric Strength: 1.5?kV DC
- Insulation Resistance: >5?GΩ
- Rated Voltage: <50?V
- Body: D-size panel mount, black-plated zinc alloy
- Contacts: Gold-plated copper alloy
- Mechanical: ≤25?N insertion/withdrawal, >1,000 cycles
- Operating Temperature: -30?°C to +85?°C

Further Product Information Below

Seetronic SBB75DFGX-B Data Sheet (PDF)
