Seetronic SE8FD05-01 RJ45 PCB Mount Socket - IP65

Name: Seetronic SE8FD05-01 RJ45 PCB Mount Socket - IP65
Brand: Seetronic
Price: 8.57 GBP
Availability: InStock

Price Each £7.14 (£8.57 Including VAT at 20%)

REF: JP112391

Quantity:

Seetronic SE8FD05-01 RJ45 PCB Mount Socket - IP65

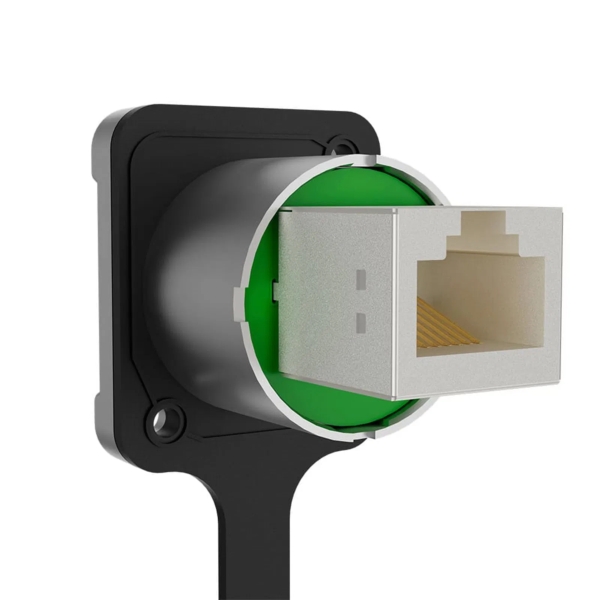

The Seetronic SE8FD05-01 RJ45 PCB Mount Socket is a robust IP65-rated RJ45 D-shape panel socket designed for harsh outdoor and industrial environments. Featuring a front-mount feedthrough design and CAT5e performance per TIA/EIA 568B and ISO/IEC 11801, it ensures secure and stable Ethernet connectivity. Compatible exclusively with SE8MC-05 Series plugs.

Click Here for Printer Friendly Version

Seetronic SE8FD05-01 RJ45 PCB Mount Socket Features

- D-shape panel mount with standard flange
- Front-mount feedthrough RJ45 socket
- IP65 protection when used with supplied gasket and waterproof cap
- Exclusive compatibility with SE8MC-05 Series plugs
- Meets CAT5e performance (TIA/EIA 568B, ISO/IEC 11801)
- Fast locking/unlocking for stable signal under movement
- Supplied with gasket, backplate, and screws for secure installation

Seetronic SE8FD05-01 RJ45 PCB Mount Socket Specifications

- Connection Type: RJ45
- Gender: Female
- Rated Voltage: 50V
- Rated Current: 1.5A
- Contact Resistance: <10 mΩ
- Insulation Resistance: ≥0.5 GΩ
- Dielectric Strength: 1kV DC
- Transmission: CAT5e (1-100MHz)
- Chassis Shape: D-shape
- Insertion Force: ≤50 N
- Service Life: >1000 mating cycles
- Housing: Zinc alloy (chrome-plated)
- Contacts: Copper alloy, gold-plated
- Insert: PBT
- Temperature Range: -30°C to +80°C
- Ingress Protection: IP65 (with gasket/cap)
- Standards: TIA/EIA 568B, IEC 11801

Further Product Information Below

Seetronic SE8FD05-01 Data Sheet (PDF)
