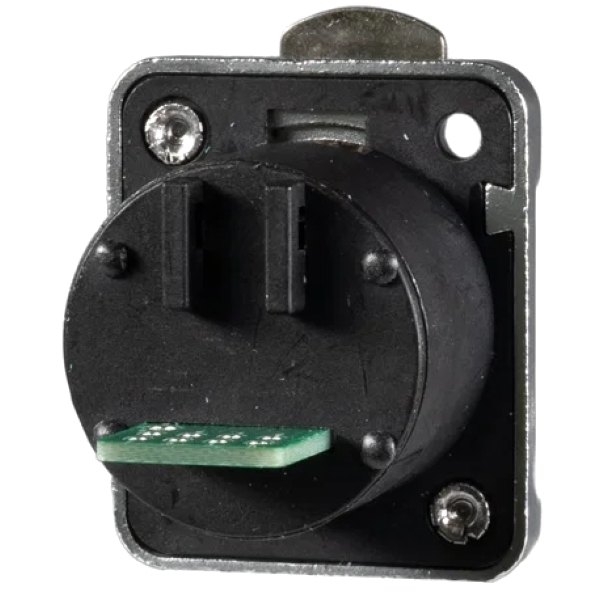

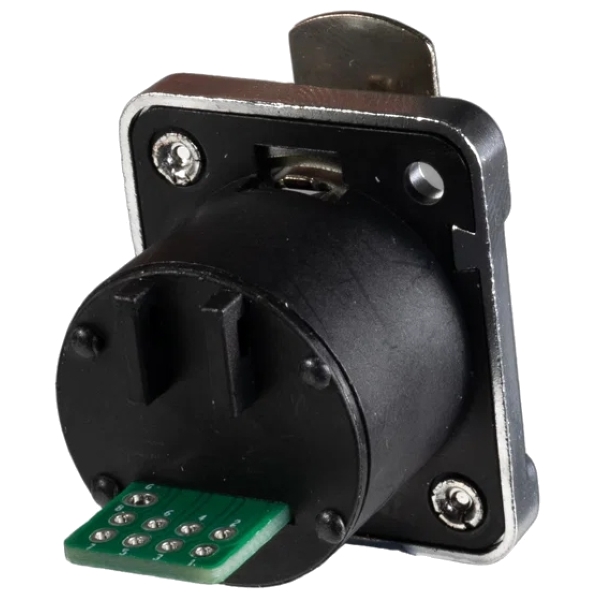

Seetronic SE8FDNH-42 IP65 CAT6A Chassis Socket

Name: Seetronic SE8FDNH-42 IP65 CAT6A Chassis Socket
Brand: Seetronic
Price: 8.14 GBP
Availability: InStock

Price Each £6.78 (£8.14 Including VAT at 20%)

REF: JP114885

Quantity:

Seetronic SE8FDNH-42 IP65 CAT6A Chassis Socket

The Seetronic SE8FDNH-42 IP65 CAT6A Chassis Socket is a front-mount, D-shape RJ45 female panel socket designed for reliable Ethernet connections meeting Class D (TIA/EIA-568B / ISO/IEC 11801) performance. Its uniform metal D-flange and standard D-style installation size make it suitable for equipment panels and enclosures where a robust, space-efficient network interface is required.

Click Here for Printer Friendly Version

Seetronic SE8FDNH-42 IP65 CAT6A Chassis Socket Features

- Uniform metal flange and standard D-shape installation size
- Chrome plated housing provides a sleek finish and enhanced durability
- Front-mountable design for easy installation from the panel face
- Class D transmission performance according to TIA/EIA-568B and IEC11801
- Solder pad termination allows for secure and straightforward wiring connections
- Latch locking device for standard RJ45 connector retention

Seetronic SE8FDNH-42 IP65 CAT6A Chassis Socket Specifications

- Connection type: RJ45
- Gender: female
- Chassis shape: D
- Contacts: copper alloy with gold contact surface
- Insert: PBT
- Panel/flange: zinc alloy with chrome plating
- Flame-retardant grade: UL94-V0
-
- Transmission performance: Class D
- Standards: TIA/EIA-568B, IEC11801
- Locking device: latch lock
- Operating temperature range: -30°C to +80°C

Further Product Information Below

Seetronic SE8FDNH-42 Data Sheet (PDF)
