Seetronic SE8FF-02 RJ45 CAT5E EtherCON Feedthrough Coupler - IP65

Name: Seetronic SE8FF-02 RJ45 CAT5E EtherCON Feedthrough Coupler - IP65
Brand: Seetronic
Price: 18.83 GBP
Availability: InStock

Price Each £15.69 (£18.83 Including VAT at 20%)

REF: JP112393

Quantity:

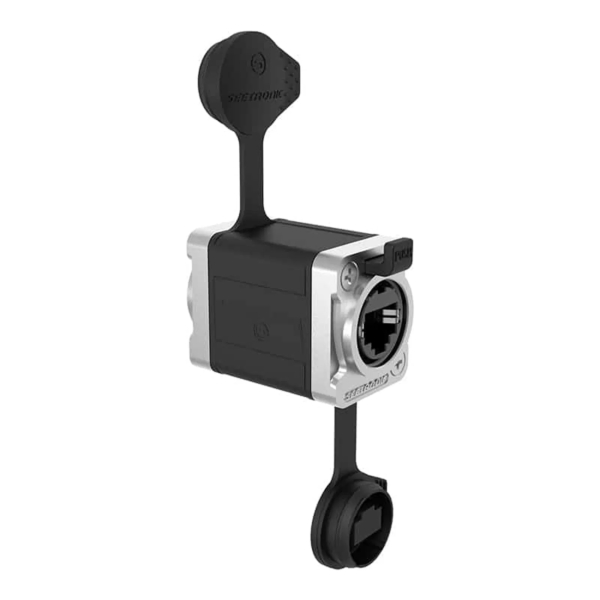

Seetronic SE8FF-02 RJ45 CAT5E EtherCON Feedthrough Coupler - IP65

The Seetronic SE8FF-02 RJ45 CAT5E EtherCON Feedthrough Coupler is a rugged, compact RJ45 feedthrough adapter designed for professional networking in harsh environments. Supporting CAT5e performance per TIA/EIA 568B and ISO/IEC 11801 standards, it features IP65 protection, a short refined body for space-limited installs, and compatibility with Seetronic SE8MC-02-NEW connectors.

Click Here for Printer Friendly Version

Seetronic SE8FF-02 RJ45 CAT5E EtherCON Feedthrough Coupler Features

- Compact RJ45 feedthrough coupler for linking cables
- Compatible with Seetronic SE8MC-02-NEW connectors
- Supports CAT5e per TIA/EIA 568B and ISO/IEC 11801 standards
- Short, refined body ideal for tight installations
- IP65 rated for rugged, outdoor or industrial environments
- Gold-plated copper alloy contacts ensure reliable transmission

Seetronic SE8FF-02 RJ45 CAT5E EtherCON Feedthrough Coupler Specifications

- Connection Type: RJ45 Adapter
- Contact Resistance: ≤10 mΩ
- Rated Current: 1.5A
- Rated Voltage: 50V
- Insulation Resistance: ≥0.5 GΩ
- Dielectric Strength: 1kV DC
- Frequency Range: 1-100MHz
- Transmission: CAT5e
- Insertion Force: ≤20N
- Service Life: >1000 mating cycles
- Locking Device: Latch lock
- Contacts: Copper alloy with gold plating
- Insert: PBT
- Panel: Zinc alloy
- Temperature Range: -30°C to +80°C
- Protection: IP65
- Standards: TIA/EIA 568B, IEC11801

Further Product Information Below

Seetronic SE8FF-02 Technical Drawing (PDF)
