Seetronic SE8MC-02-30-B-LOD RJ45 EtherCON Cable Housing - IP65, Black

Name: Seetronic SE8MC-02-30-B-LOD RJ45 EtherCON Cable Housing - IP65, Black
Brand: Seetronic
Price: 3.54 GBP
Availability: InStock

Price Each £2.95 (£3.54 Including VAT at 20%)

REF: JP112389

Quantity:

Seetronic SE8MC-02-30-B-LOD RJ45 EtherCON Cable Housing - IP65, Black

The Seetronic SE8MC-02-30-B-LOD RJ45 EtherCON Cable Housing is a rugged RJ45 cable carrier connector engineered for harsh environments. With an IP65 waterproof rating, chrome-plated die-cast housing, and support for standard and dovetail clip RJ45 plugs, this 30?cm cable solution ensures a secure, weatherproof Ethernet connection in demanding applications.

Click Here for Printer Friendly Version

Seetronic SE8MC-02-30-B-LOD RJ45 EtherCON Cable Housing Features

- RJ45 cable carrier with chrome-plated die-cast zinc alloy housing
- IP65-rated waterproof protection for harsh outdoor environments
- Supports standard RJ45 plugs and dovetail-clip RJ45 connectors
- Compatible with cable diameters from 7.5mm to 9mm
- Latch-lock design prevents accidental disconnections

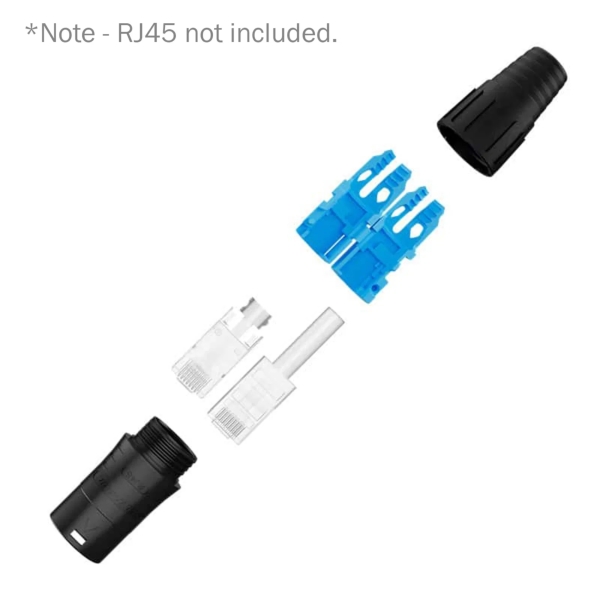

- Supplied with boot, cable clip, and housing for full assembly

Seetronic SE8MC-02-30-B-LOD RJ45 EtherCON Cable Housing Specifications

- Connection Type: RJ45 (male)
- Cable Length: 30?cm
- Cable OD Compatibility: 7.5?-?9?mm
- Material: Zinc alloy housing (chrome plated), PA boot
- Ingress Protection: IP65
- Insertion/Withdrawal Force: ≤ 20?N
- Service Life: > 1000 mating cycles
- Operating Temp: -30?°C to +80?°C

Further Product Information Below

Seetronic SE8MC-02-30-B-LOD Data Sheet (PDF)
