Showgear PowerCore Server Monitors Up To 6 PowerCore Distributors

Name: Showgear PowerCore Server Monitors Up To 6 PowerCore Distributors
Brand: Showgear
Price: 231.38 GBP
Availability: InStock

Price Each £192.82 (£231.38 Including VAT at 20%)

REF: JP112555

Quantity:

Showgear PowerCore Server Monitors Up To 6 PowerCore Distributors

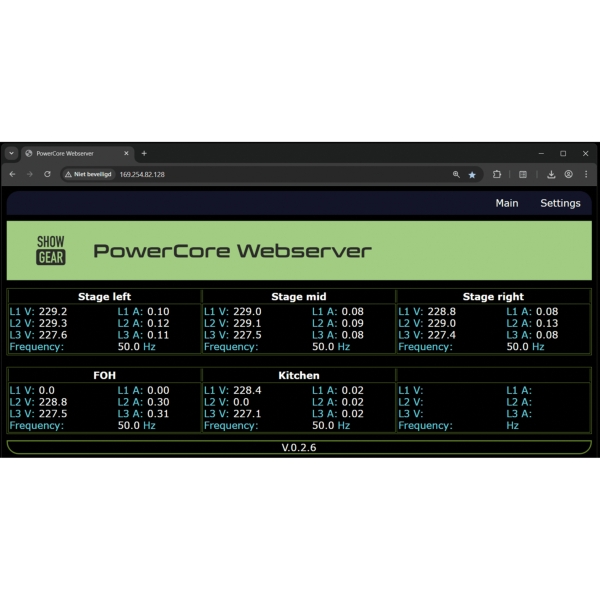

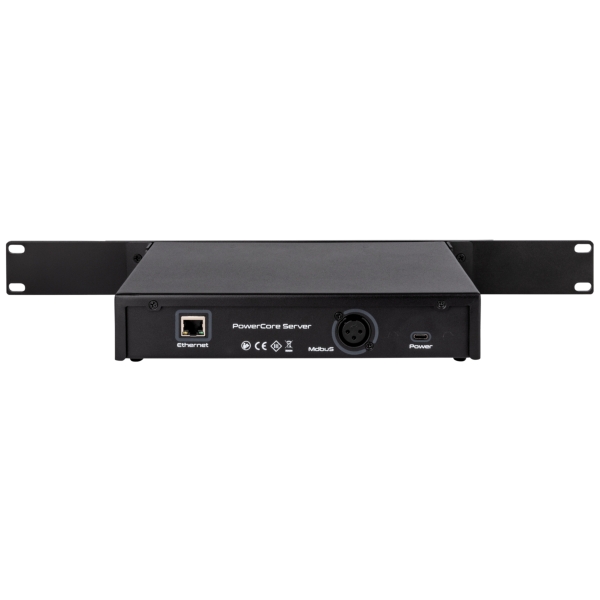

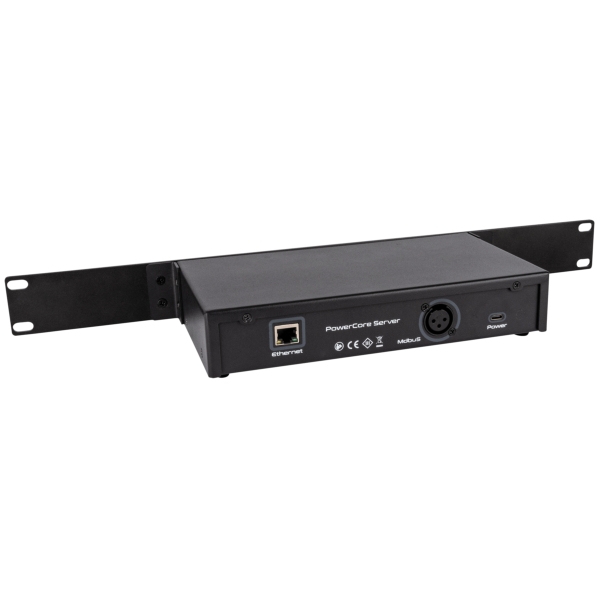

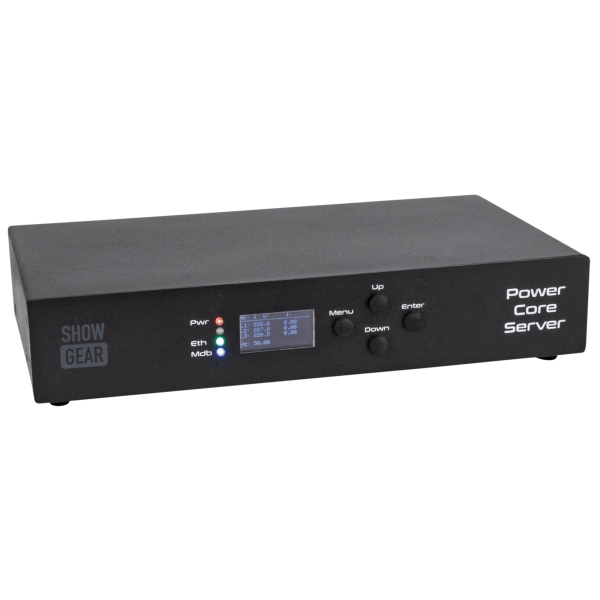

The Showgear PowerCore Server can monitor up to 6 PowerCore power distributors at once using the MdbuS protocol. Its OLED display provides real-time information on voltage and current consumption of all connected distributors. Connecting the server to the distributors can be done using a simple 3-pin XLR cable. It's also possible to connect a device like a tablet or a laptop to the server via IP for monitoring performance remotely.

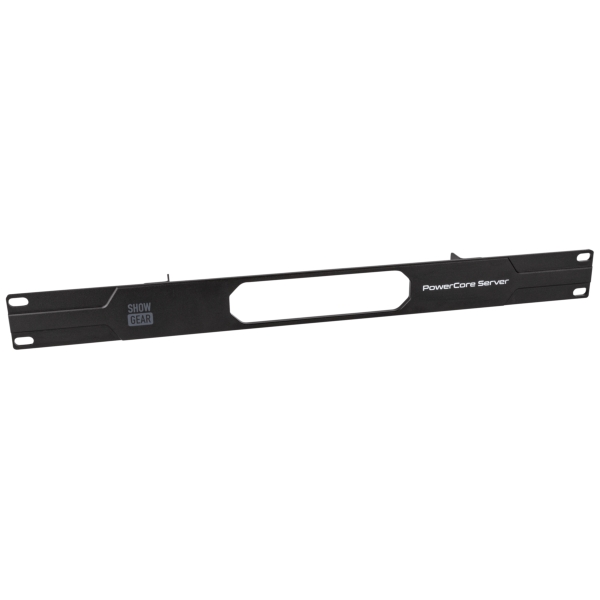

The PowerCore Server can be powered via PoE or USB-C (cable not included). The supplied 19-inch front panel is ideal for rack mounting, but it can be removed for non-rack installations.

Click Here for Printer Friendly Version

Showgear PowerCore Server Features

- OLED display
- Remote monitoring via IP (phone, tablet, laptop)
- MdbuS protocol
- USB-C and PoE powered

Showgear PowerCore Server Specifications

Control and Programming:
- Display: OLED

Electrical Specifications and Connections:
- Data Connector In: RJ45
- Data Connector Out: RJ45, XLR 3P
- Power Consumption: 3 W
- Power Supply: 5 V DC
- Power over Ethernet (PoE): IEEE- 802.3af
- Power Connector In: RJ45, USB-C

Mechanical Specifications:
- Length: 141 mm
- Height: 50 mm
- Width: 482 mm
- Weight: 1.6 kg
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium, Metal
- Rack Units: 1 U
- Colour: Black

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)
- Minimum Ambient Temperature: -5 °C (23 °F)
