Showtec Edison Vintage 2 Retro DMX LED Light with Dimmer & Wood Grain Housing

Name: Showtec Edison Vintage 2 Retro DMX LED Light with Dimmer & Wood Grain Housing
Brand: Showtec
Price: 356.03 GBP
Availability: InStock

Price Each £296.69 (£356.03 Including VAT at 20%)

REF: JP115283

Quantity:

Showtec Edison Vintage 2 Retro DMX LED Light with Dimmer & Wood Grain Housing

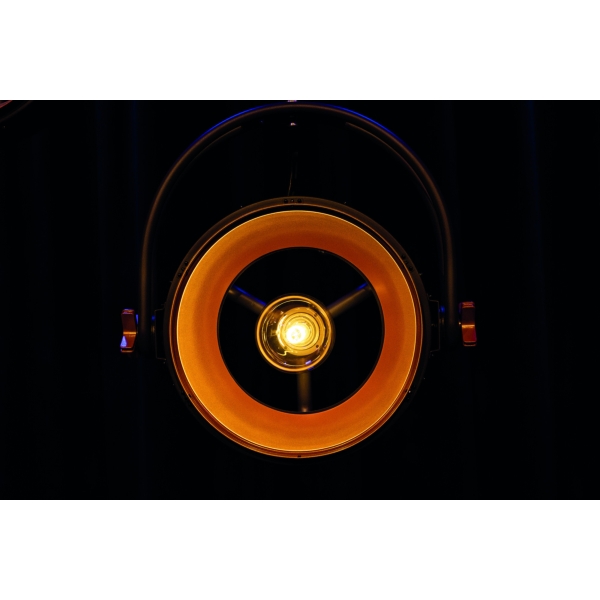

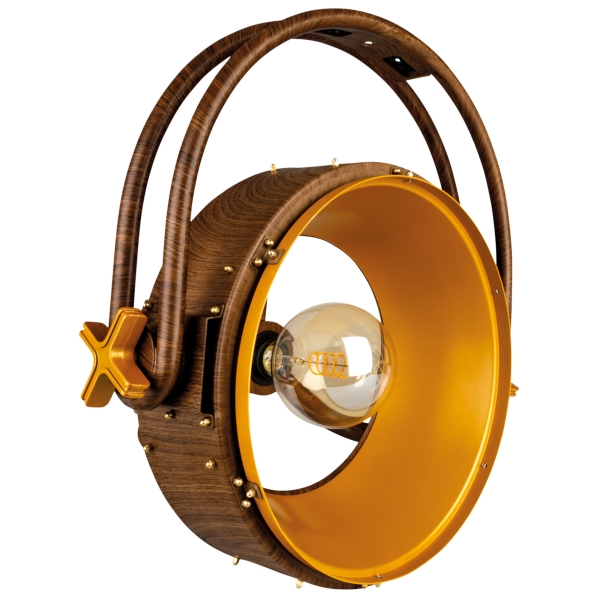

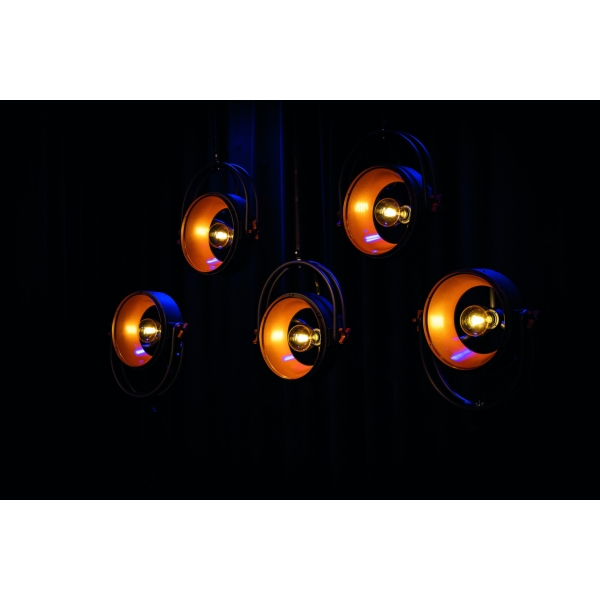

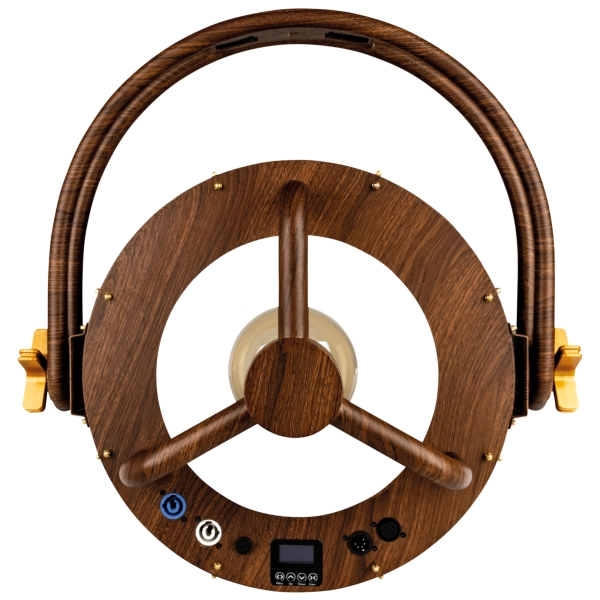

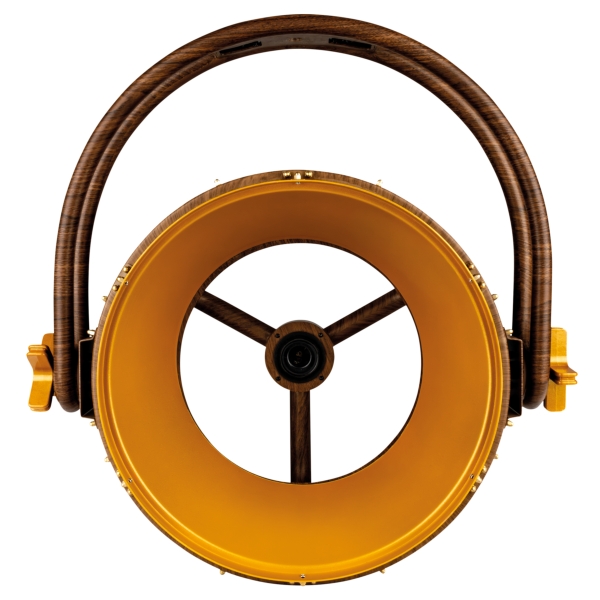

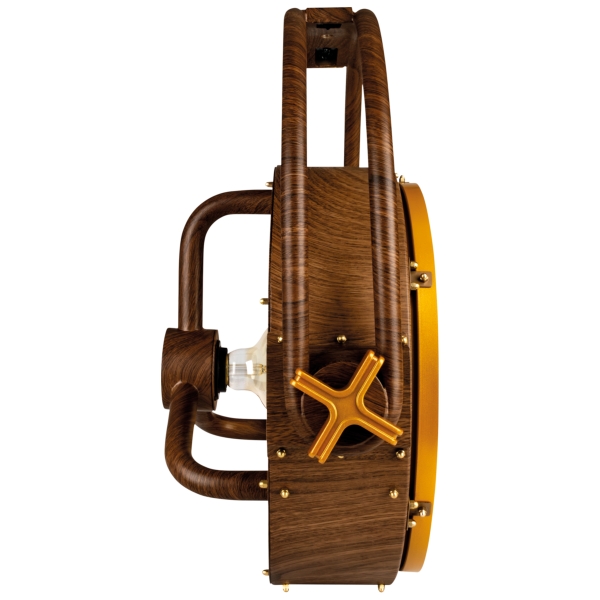

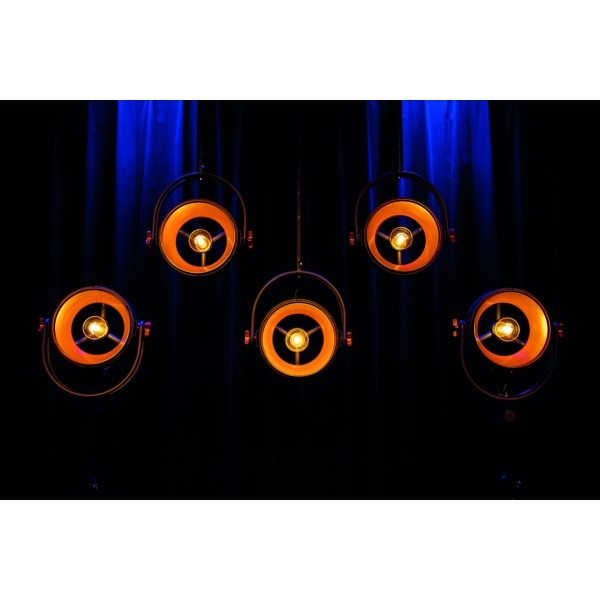

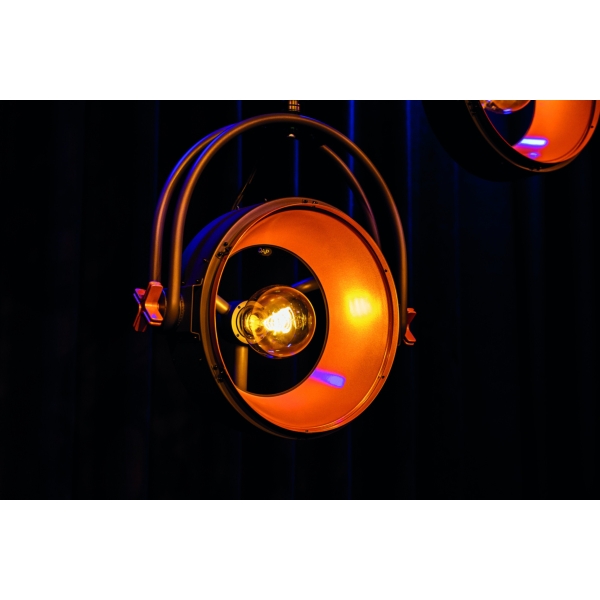

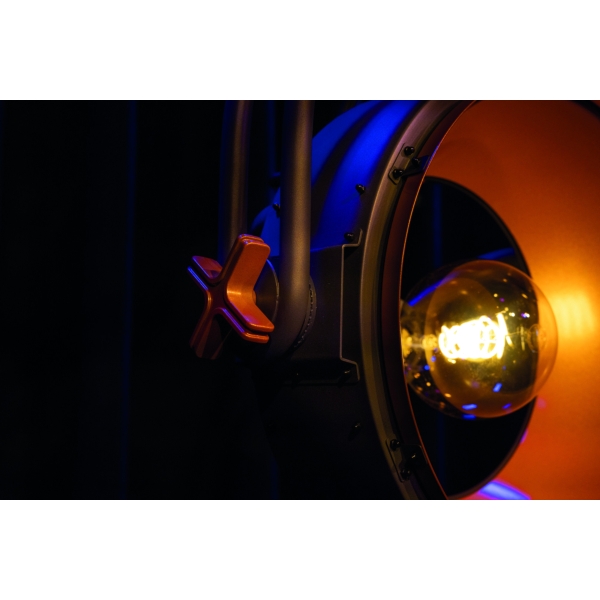

The Showtec Edison Vintage 2 Retro DMX LED Light with Dimmer & Wood Grain Housing is a large-format vintage-style luminaire. Combining a new design with the same trusted functionality as the Edison Vintage 1, it brings the charm of vintage lighting into the modern era. With an E27 socket, it delivers a cosy glow and elegant retro-inspired look, making it a perfect addition to stages, studios, themed venues and decorative installations. The built-in dimmer supports both DMX control and manual operation, with smooth, non-linear voltage-based dimming for authentic incandescent-style fades. An intuitive OLED display ensures easy configuration, while the quick-lock bracket allows for fast, secure mounting on truss or 50 mm pipe systems.

LED bulb not included.

Click Here for Printer Friendly Version

Showtec Edison Vintage 2 Retro DMX LED Light with Dimmer & Wood Grain Housing Features

- DMX LED dimmer with E27 socket
- Manual and DMX control

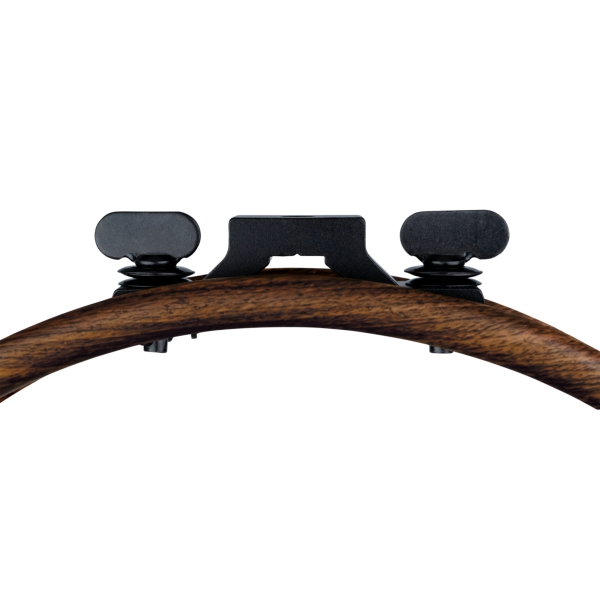

- Quick-lock mounting bracket included
- OLED display for easy control

Showtec Edison Vintage 2 Retro DMX LED Light with Dimmer & Wood Grain Housing Specifications

Source:
- Light Socket: E27
- Number of Sockets: 1

Control and Programming:
- Control Mode: DMX, Manual
- DMX Channels: 1, 2
- Protocols: DMX, RDM
- Display: OLED
- Display Size: 1.3-inches
- Dim Curve: Linear, Square, I-Square, S-Curve
- Dimmer Resolution: 16 bit

Dynamic Effects:
- Dimmer: 0-100 %

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 6.7 W
- Max. power consumption: 20 W
- Fuse: 1 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 5P In/Out
- DMX Connector In: XLR 5P
- DMX Connector Out: XLR 5P
- Cable Length: 1.5 m

Mechanical Specifications:
- Height: 541 mm
- Width: 526 mm
- Depth: 239 mm
- Weight: 5.3 kg
- IP Rating: IP20 (indoor use only)
- Material: Aluminium, Metal
- Housing: Aluminium, Metal
- Colour: Pale Gold, Wood Grain

Product Properties:
- Cooling: Convection

Rigging:
- Mounting Options: Clamp, Quick-Lock

Thermal Specifications:
- Maximum Ambient Temperature: 45 °C (113 °F)

Further Product Information Below

Showtec Edison Vintage 2 Manual (PDF)

Showtec Edison Vintage 2 Data Sheet (PDF)

Showtec Edison Vintage 2 Technical Drawing (PDF)

Showtec Edison Vintage 2 Supplied With

- Power Pro Cable
- Quick-Lock Bracket

LED bulb not included.
