Showtec LED Octostrip FLEX Controller

Name: Showtec LED Octostrip FLEX Controller
Brand: Showtec
Price: 370.78 GBP
Availability: InStock

Price Each £308.98 (£370.78 Including VAT at 20%)

REF: JP115267

Quantity:

Showtec LED Octostrip FLEX Controller

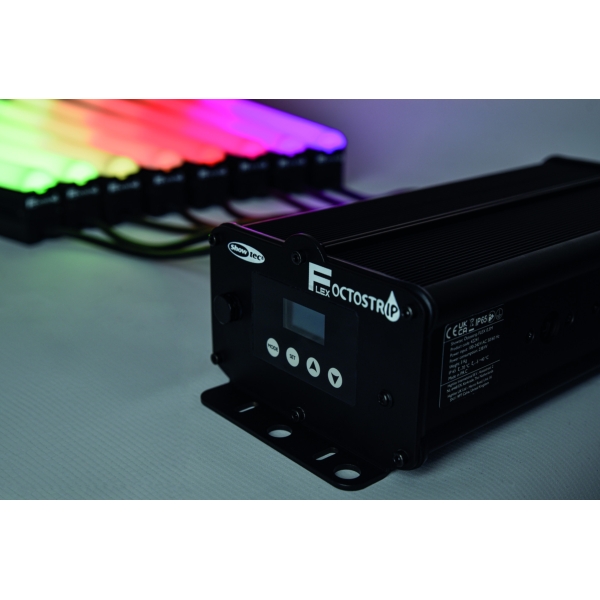

The Showtec LED Octostrip FLEX Controller is a dedicated IP65-rated controller that can control up to 8 units of the Showtec Single Strip for Octostrip FLEX. It can control the 1 m and 0.5 m versions (mixing both lengths is not possible). The controller supports Art-Net and DMX, but also has stand-alone modes with built-in colour presets and colour sequences. It uses 5-pin XLR DMX connections and Power Pro True power connections. It has a robust aluminium housing with multiple mounting options.

Octostrip FLEX strips and dedicated cables to connect the controller to the strips are available separately.

Click Here for Printer Friendly Version

Showtec LED Octostrip FLEX Controller Features

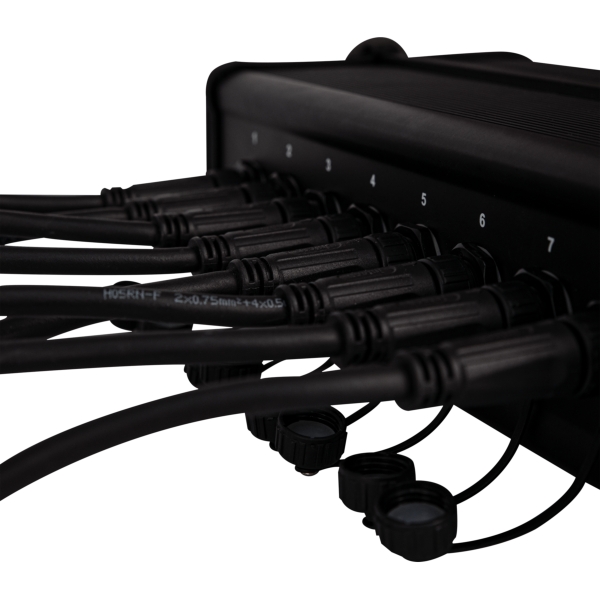

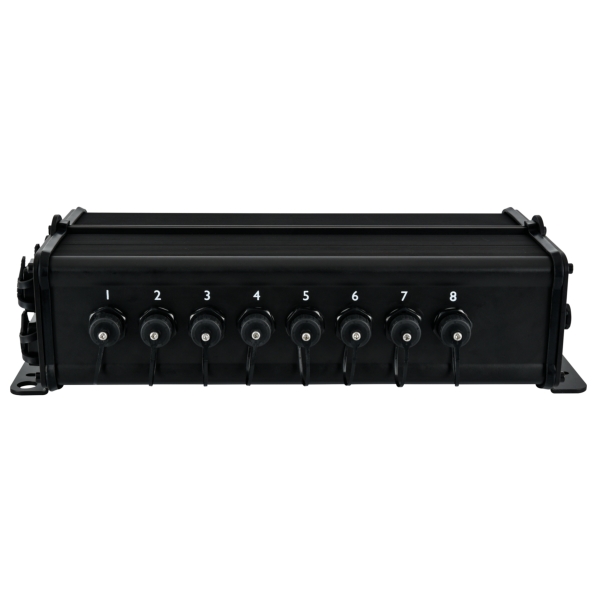

- Controls up to 8 individual strips of the OctoStrip FLEX
- DMX, Art-Net and stand-alone modes
- IP65-rated enclosure

Showtec LED Octostrip FLEX Controller Specifications

Control and Programming:
- Control Mode: Art-Net, Auto, DMX, Manual, RDM, sACN
- DMX Channels: 9, 16, 30, 32, 58, 128, 192, 256
- Protocols: Art-Net, DMX, sACN

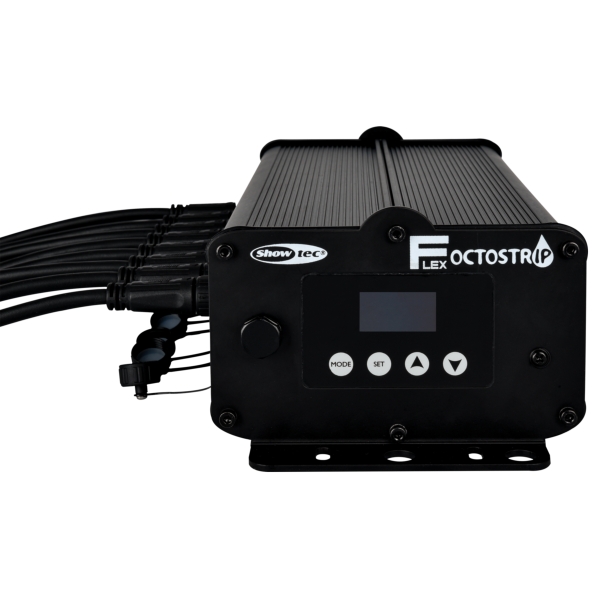

- Display: OLED

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 11.3 W
- Power Connector In: Power Pro True
- Power Connector Out: Power Pro True

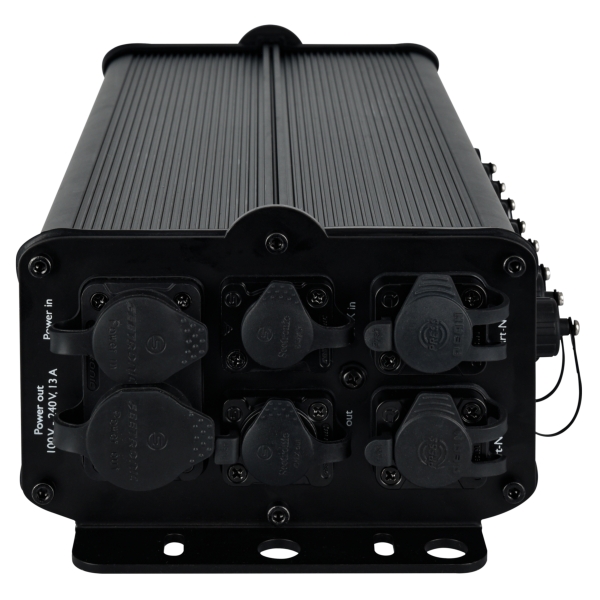

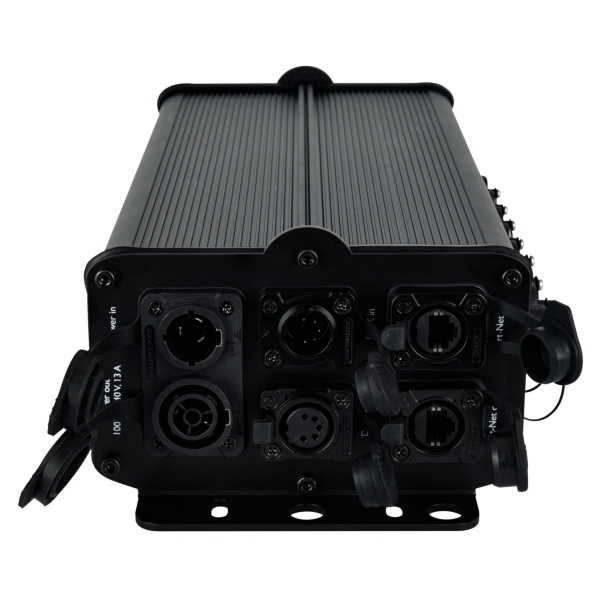

- DMX Connector: XLR 5P In/Out
- DMX Connector In: XLR 5P
- DMX Connector Out: XLR 5P
- Data Connector: etherCON In/Out
- Data Connector In: etherCON
- Data Connector Out: etherCON

Mechanical Specifications:
- Height: 103 mm
- Width: 171 mm
- Depth: 372 mm
- Weight: 3 kg
- IP Rating: IP65
- Material: Aluminium
- Housing: Aluminium
- Colour: Black

Product Properties:
- Cooling: Convection

Rigging:
- Mounting Options: Clamp, Quick-Lock

Thermal Specifications:
- Maximum Ambient Temperature: 45 °C (113 °F)
- Minimum Ambient Temperature: -5 °C (23 °F)

Further Product Information Below

Showtec LED Octostrip FLEX Controller Manual (PDF)

Showtec LED Octostrip FLEX Controller Data Sheet (PDF)

Showtec LED Octostrip FLEX Controller Technical Drawing (PDF)
