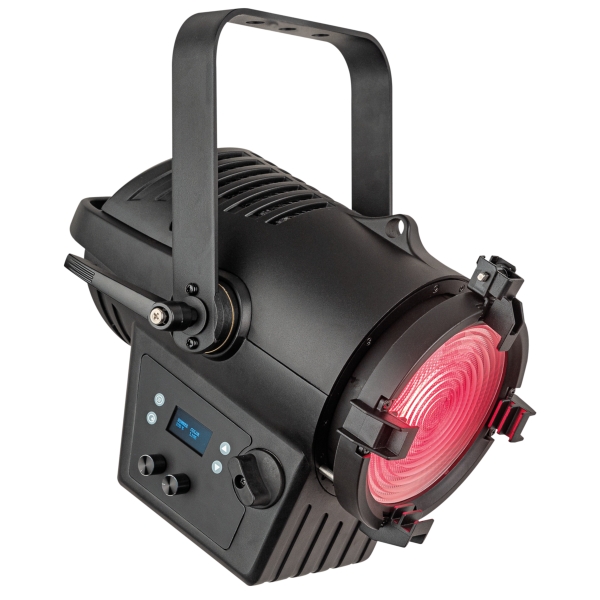

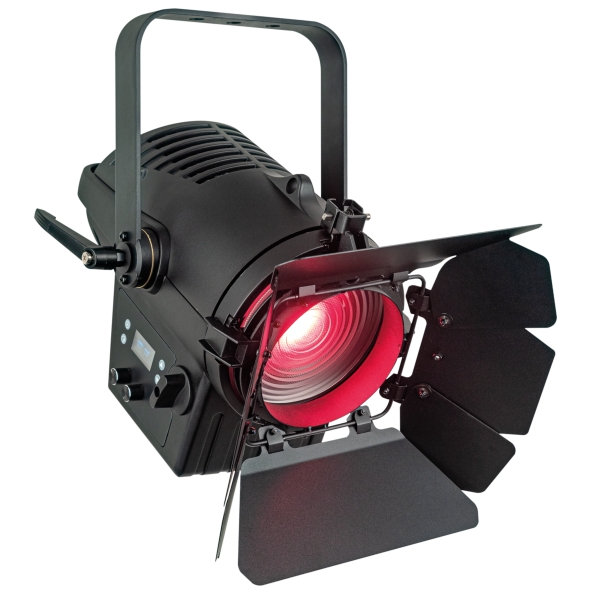

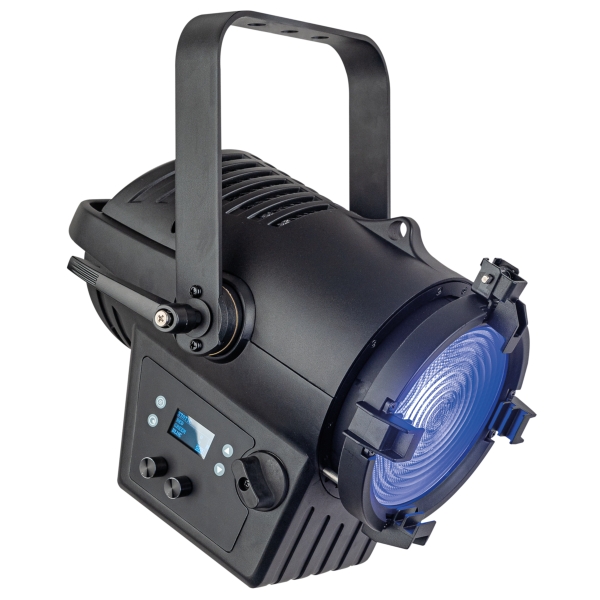

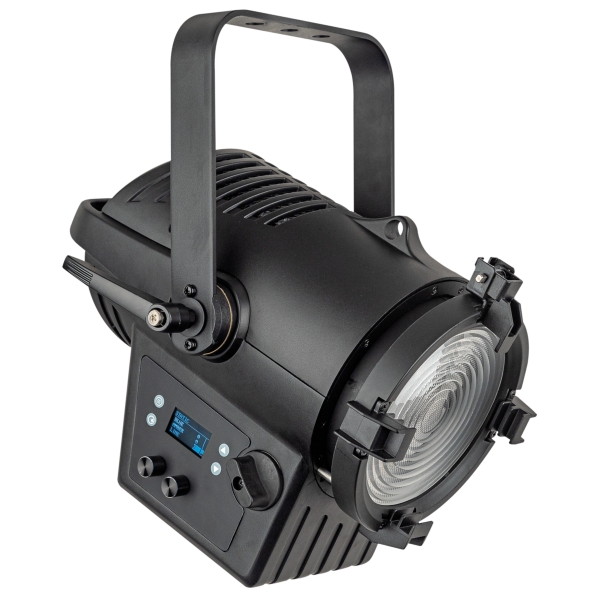

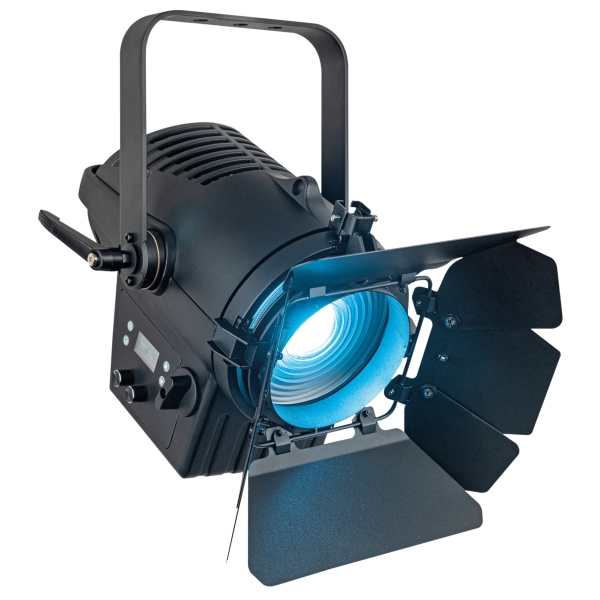

Showtec Performer 1500 Fresnel Q6 MKII RGBLAC LED Fresnel, 200W

Showtec Performer 1500 Fresnel Q6 MKII RGBLAC LED Fresnel Features

- 200 W RGBALC LED Fresnel
- Suitable for theatrical and studio applications
- CCT colour temperature range of 1800 K - 10000 K
- Wide manually adjustable zoom range
- 16 preset colours

Showtec Performer 1500 Fresnel Q6 MKII RGBLAC LED Fresnel Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 200 W
- LED Colour Type: RGBALC
- Refresh Rate (Max.): 25 kHz
- Illuminance @ 5 m: 3052 lx
- Luminous Flux (Total): 6213 lm
- CRI: 97
- Minimum CCT: 1800 K
- Maximum CCT: 10000 K

Optical:
- Beam Angle Minimum (Circular): 10 °
- Beam Angle Maximum (Circular): 50 °
- Field Angle Minimum (Circular): 18 °
- Field Angle Maximum (Circular): 75 °
- Zoom Type: Manual

Control and Programming:
- Control Mode: DMX, Master Slave, Stand Alone
- DMX Channels: 3, 7, 8, 10, 13, 20
- Protocols: DMX, RDM

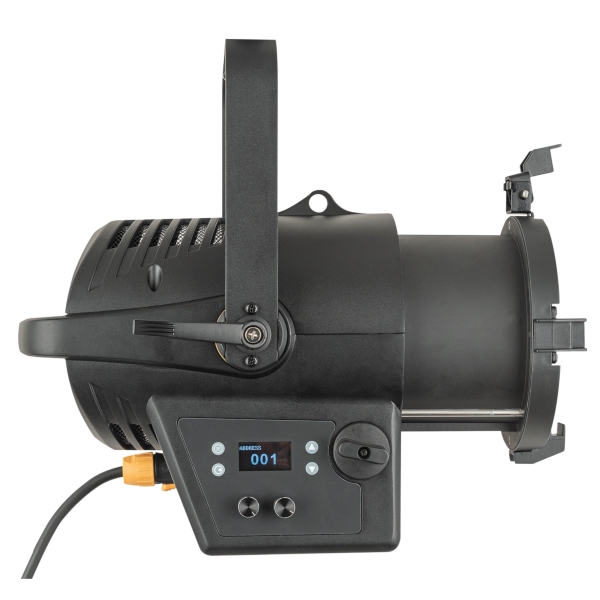

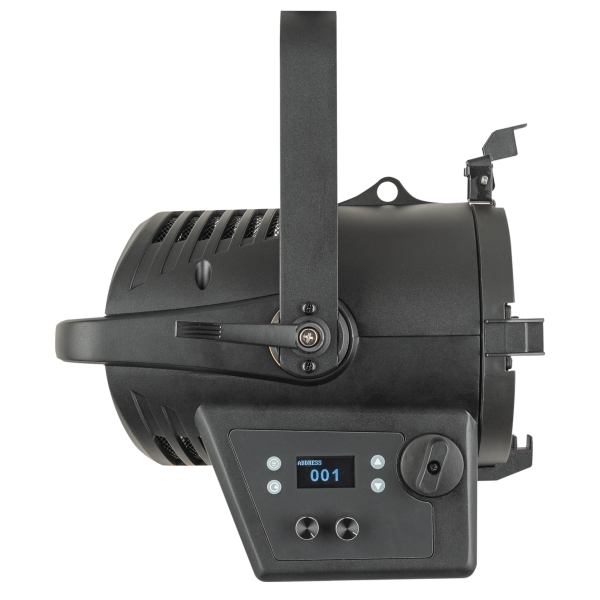

- Display: LCD
- Dynamic Effects: Dimmer
- 0-100 %

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 170 W

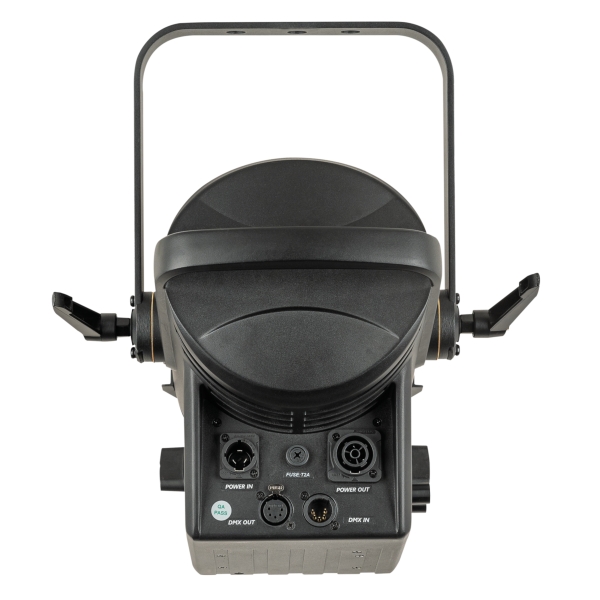

- Power Connector In: Power Pro True
- Power Connector Out: Power Pro True
- DMX Connector: XLR 5P In/Out
- DMX Connector In: XLR 5P
- DMX Connector Out: XLR 5P

Mechanical Specifications:
- Length: 450 mm
- Width: 290 mm
- Height: 370 mm
- Weight: 5.3 kg
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium die-cast
- Colour: Black

Product Properties:
- Cooling: Axial fan

Thermal Specifications:
- Maximum Ambient Temperature: 45 °C (113 °F)

Further Product Information Below

Showtec Performer 1500 Fresnel Q6 MKII LED Fresnel Data Sheet (PDF)
