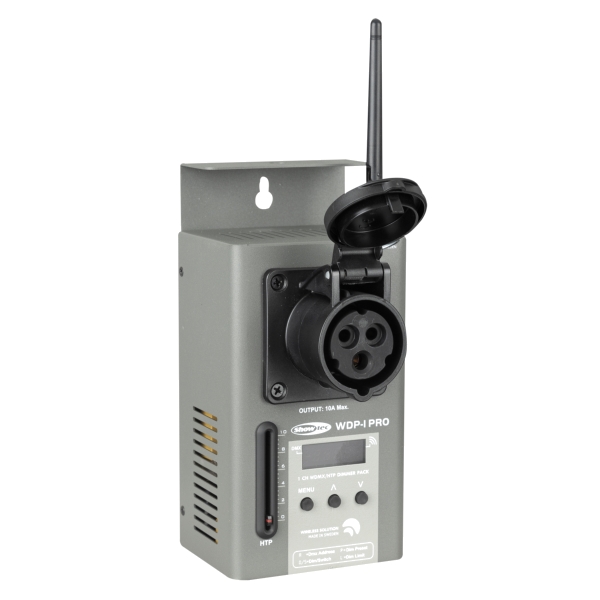

Showtec Single WDP-1 Pro 1-Channel Wireless Dimming Pack

Showtec Single WDP-1 Pro Features
\n
- Wireless DMX receiver built-in\n
- Applicable as W-DMX receiver\n
- powerCON TRUE1 Input\n
- 5-pin DMX connectors\n
- CEE 16 A 3-pin output (max 10 A output)

Showtec Single WDP-1 Pro Specifications

\nControl and Programming:\n
- Control Mode: DMX, Manual\n
- DMX Channels: 1\n
- Wireless: Wireless DMX

\nElectrical Specifications and Connections:\n
- Power Supply: 240 V AC 50/60 Hz\n
- Power Consumption: 2300 W\n
- Output Current per Channel: 10 A\n

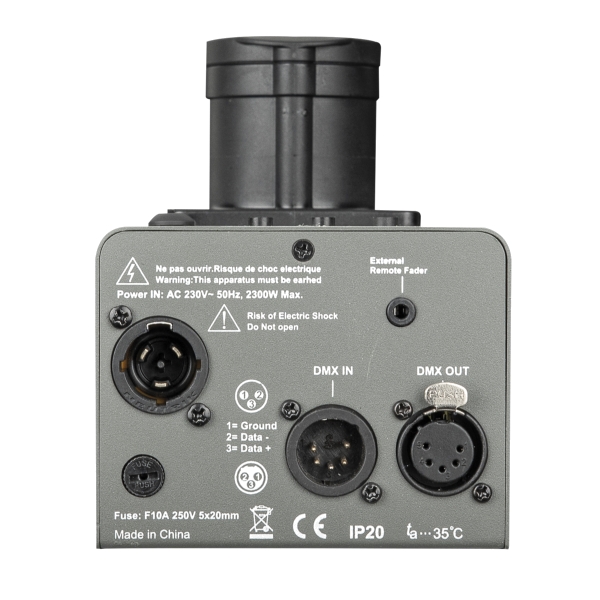

- Power Connector In: powerCON TRUE1\n
- Power Connector Out: CEE3P 16 A\n
- DMX Connector In: XLR 5P\n
- DMX Connector Out: XLR 5P

\nMechanical Specifications:\n
- Length: 134 mm\n
- Width: 99 mm\n
- Height: 293 mm\n
- Weight: 1.4 kg\n
- IP Rating: IP20 (indoor use only)\n
- Housing: Metal\n
- Colour: Black, Grey

\nProduct Properties:\n
- LED Indicators: Operation mode, Signal

\nThermal Specifications:\n
- Maximum Ambient Temperature: 35 °C (95 °F)\n
- Minimum Ambient Temperature: -5 °C (23 °F)

Further Product Information Below

Showtec Single WDP-1 Pro Manual (PDF)
