Showtec Compact Par 7 Tri RGB LED PARCan, 7x 3W - Black

Showtec Compact Par 7 Tri RGB LED PARCan Features

- Compact 7x 3 W RGB LED Par
- Double bracket for easy floor positioning
- 40° fixed beam angle
- Dimmer and strobe function
- Manual, DMX and Master/Slave control

Showtec Compact Par 7 Tri RGB LED PARCan Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 7
- Light Source Power: 3 W
- LED Colour Type: RGB
- Refresh Rate: 3900 Hz
- Illuminance @ 2 m: 1772 lx
- Luminous Flux (Total): 2685 lm

Optical:
- Beam Angle (Circular): 40 °

Control and Programming:
- Control Mode: Auto, Built-in Program, DMX, Master Slave, Sound
- DMX Channels: 3, 4, 8
- Protocols: DMX

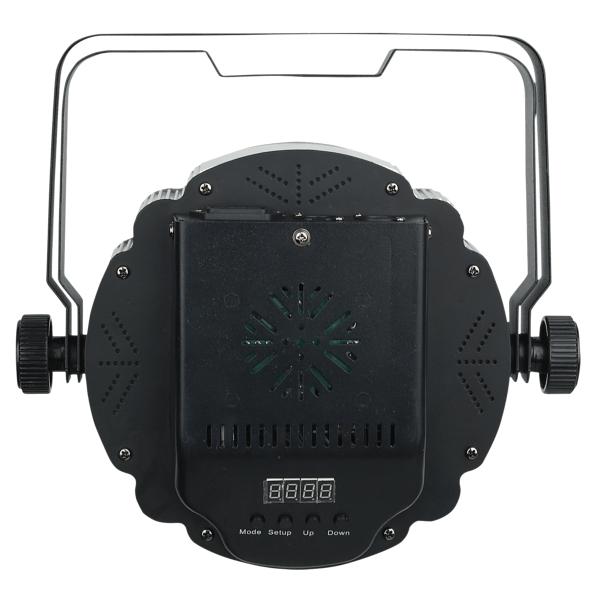

- Display: 7-segment

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

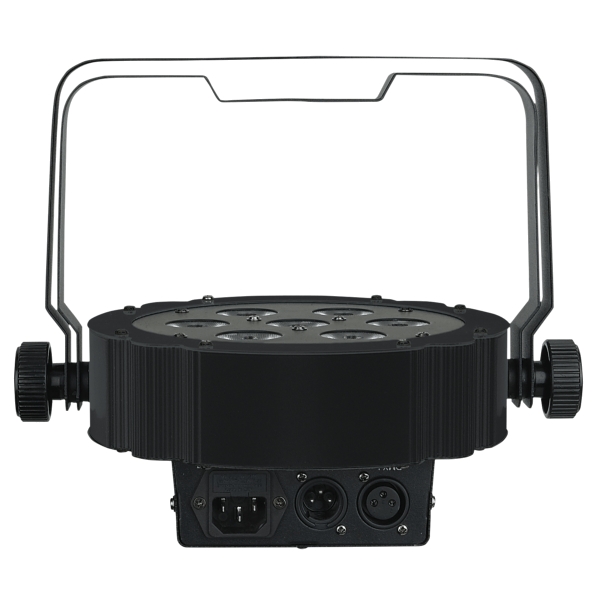

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 28 W
- Power Connector In: IEC
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P
- Cable Length: 1.5 m

Mechanical Specifications:
- Length: 275 mm
- Width: 95 mm
- Height: 256 mm
- Weight: 2.2 kg (4.85 lb)
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black

Product Properties:
- Cooling: Convection

Rigging:
- Mounting Options: Clamp, Surface

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)
- Minimum Operating Temperature: -10 °C (14 °F)

Further Product Information Below

Showtec Compact Par 7 Tri Manual (PDF)

Showtec Compact Par 7 Tri Data Sheet (PDF)

Showtec Compact Par 7 Tri Declaration of Conformity (PDF)

Showtec Compact Par 7 Tri RGB LED PARCan Supplied With

- IEC cable
- Bracket
